Danfoss 20491Y-52-24SRT

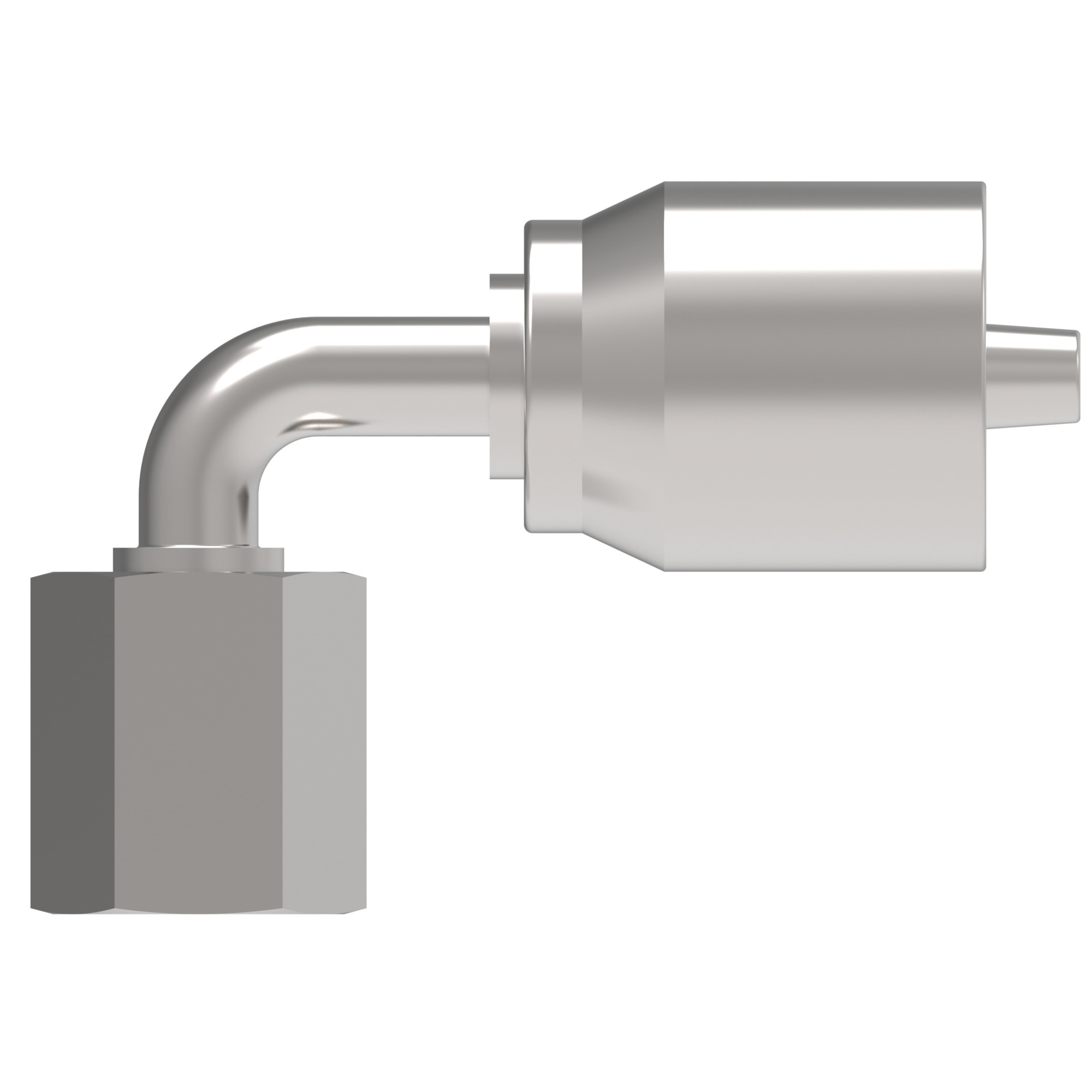

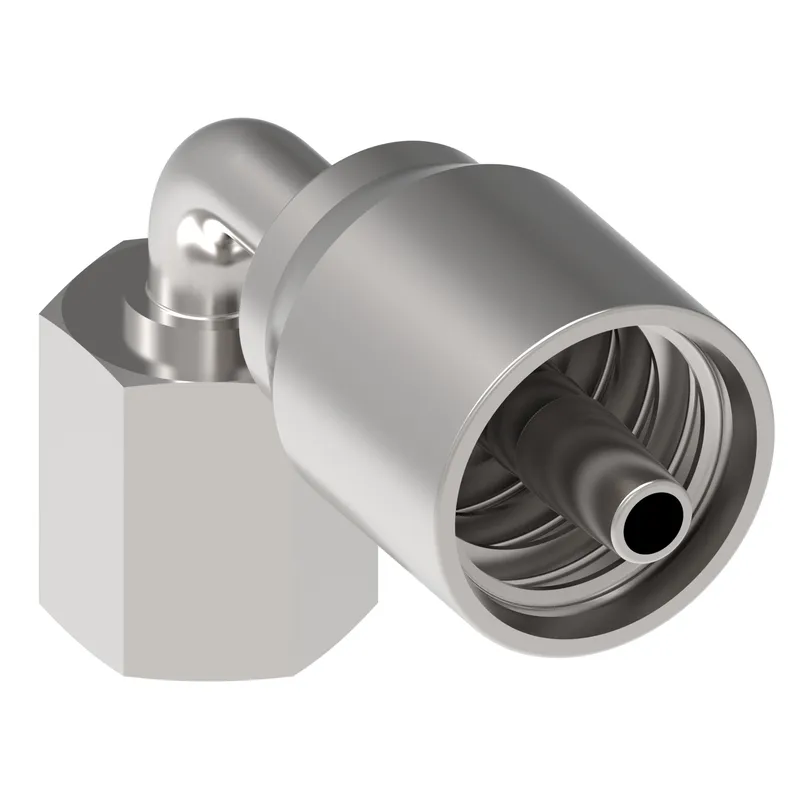

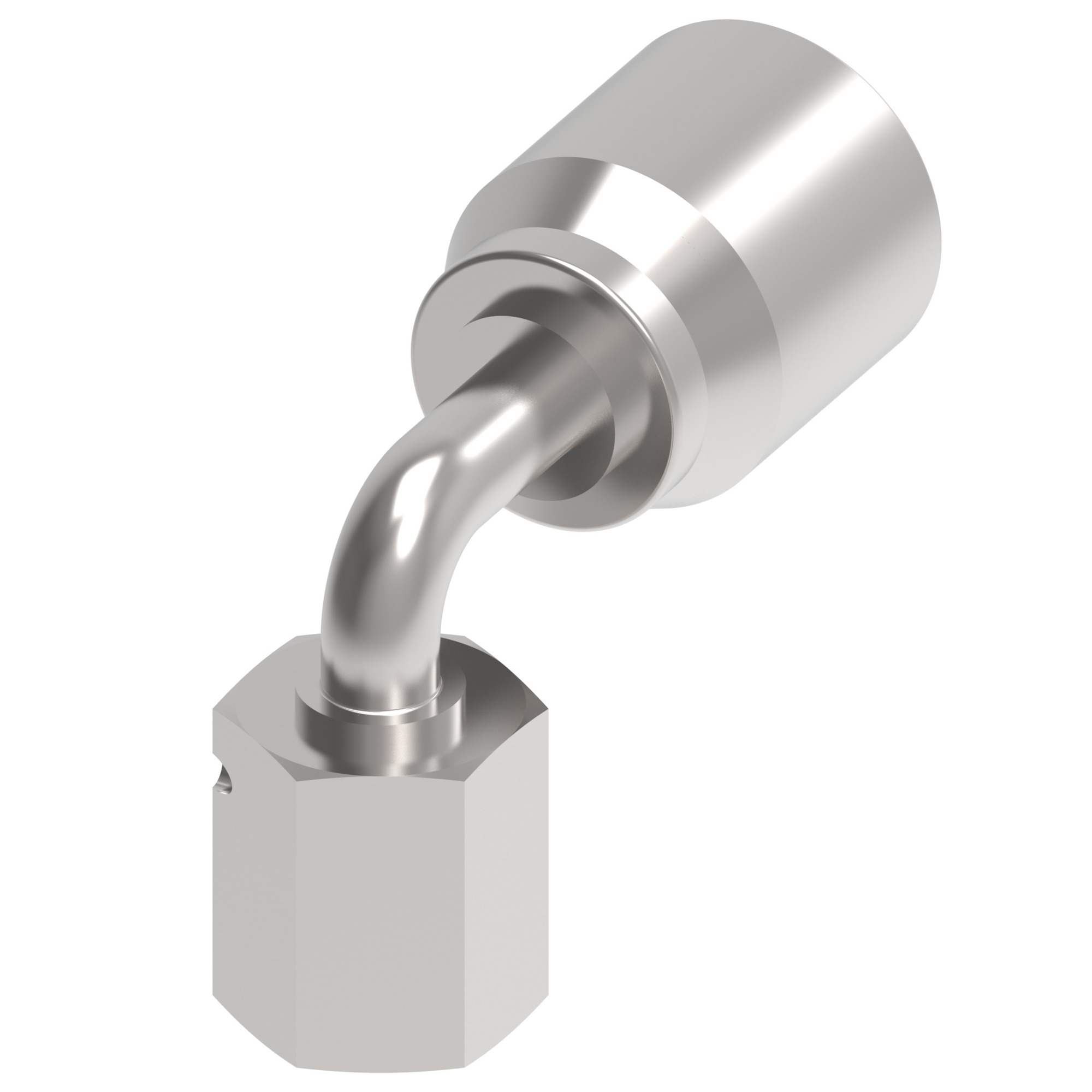

HOSE NIPPLE ASSY,2P/24,DKOL/52,AN,90D

MPN: 20491Y-52-24SRT
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 20491Y-52-24SRT?

Danfoss HOSE NIPPLE ASSY,2P/24,DKOL/52,AN,90D, manufacturer part number 20491Y-52-24SRT. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	6.984
A dimension MM	177.400
Angle shape	90 Degree
Brand	Winner by Danfoss
Compatible hose ID IN	1.500
Compatible hose ID MM	38.100
Construction Style	Crimp
Drop dimension IN	3.960
Drop dimension MM	100.50
End Type 1	24 deg. DKO swivel light duty
Hex size 1 IN	2.362
Hex size 1 MM	59.995
Hex size 2 IN	2.362
Hex size 2 MM	59.995
Hose cut off factor IN	4.307
Hose cut off factor MM	109.400
Hose size	-24
Inside diameter IN	1.259
Inside diameter MM	32.000
Product height in	6.643
Product height mm	168.732
Product length in	8.480
Product length mm	215.392
Product material	304 Stainless steel
Product width in	2.696
Product width mm	68.478
Series	Winner 2-Piece
Thread sealant	No
Thread size 1	M52x2
Tube OD 1 IN	1.650
Tube OD 1 MM	42.000
