Danfoss 20491Y-16-08WZ

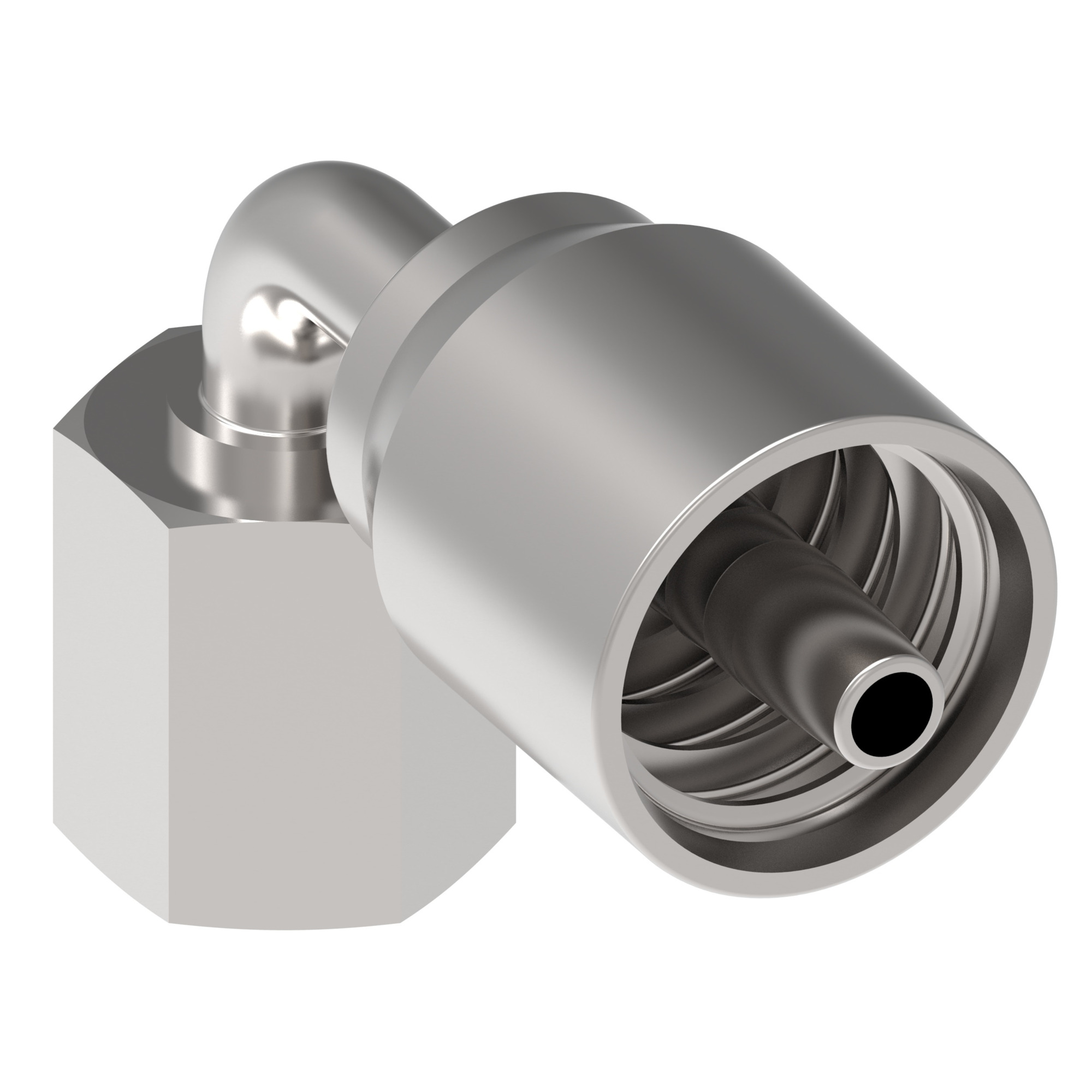

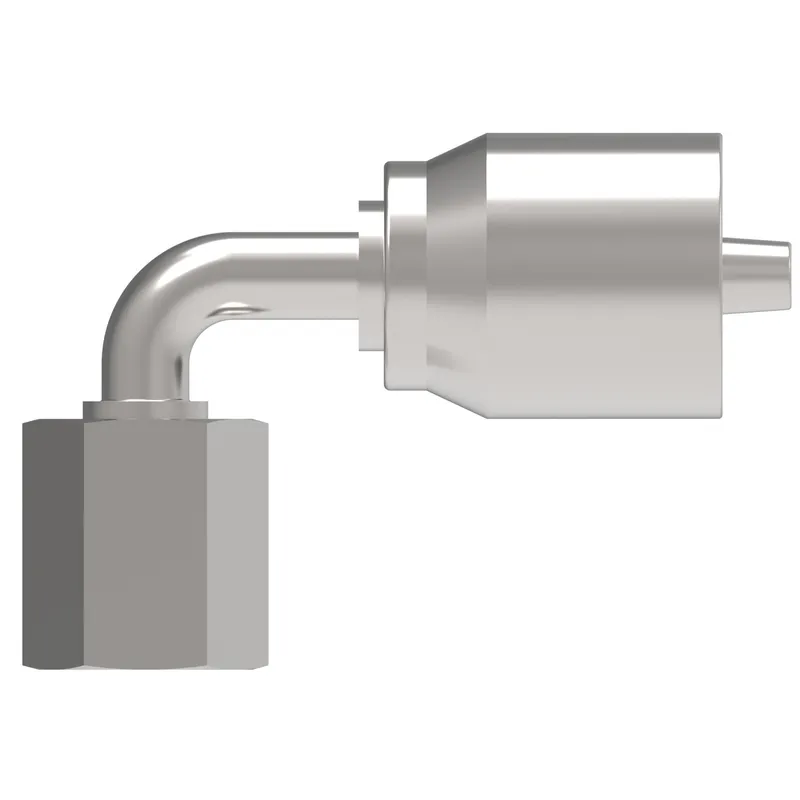

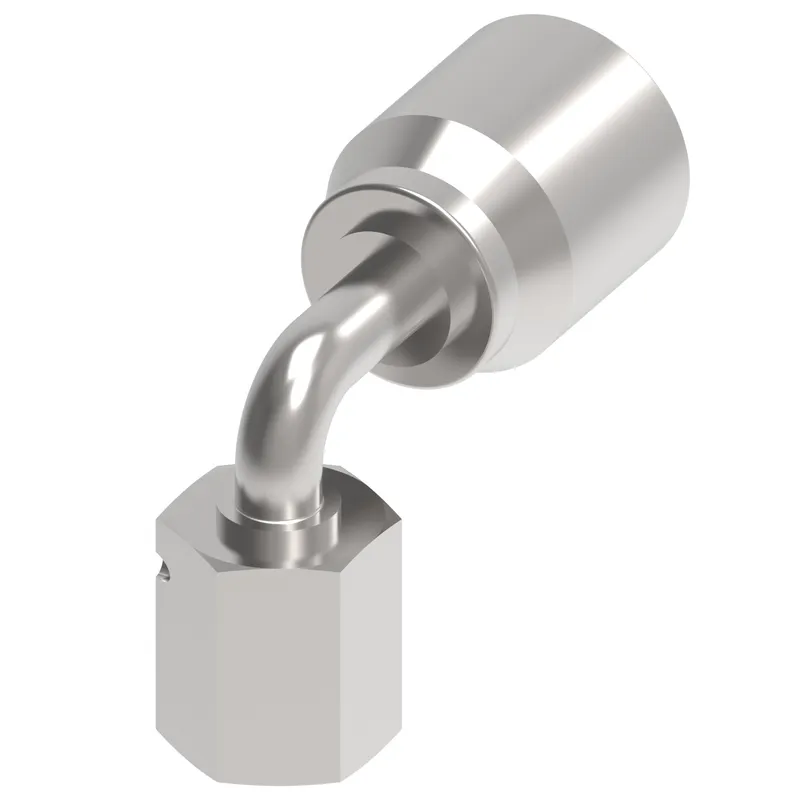

HOSE NIPPLE ASSY,1P/08,DKOL/16,CS,90D

MPN: 20491Y-16-08WZ
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 20491Y-16-08WZ?

Danfoss HOSE NIPPLE ASSY,1P/08,DKOL/16,CS,90D, manufacturer part number 20491Y-16-08WZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.716
A dimension MM	69.000
Angle shape	90 Degree
Brand	Winner by Danfoss
Compatible hose ID IN	0.500
Compatible hose ID MM	12.700
Construction Style	Crimp
Drop dimension IN	1.300
Drop dimension MM	33.00
End connection torque	37-44 lb-ft(50-60 Nm)
End Type 1	24 deg. DKO swivel light duty
Finish plating	Zinc plating
Hex size 1 IN	0.748
Hex size 1 MM	18.999
Hex size 2 IN	0.748
Hex size 2 MM	18.999
Hose cut off factor IN	1.476
Hose cut off factor MM	37.500
Hose size	-8
Inside diameter IN	0.216
Inside diameter MM	5.500
Product height in	1.996
Product height mm	50.698
Product length in	3.148
Product length mm	79.959
Product material	Carbon steel
Product width in	1.212
Product width mm	30.784
Seal material	Nitrile (NBR)
Thread sealant	No
Thread size 1	M16x1.5
Tube OD 1 IN	0.393
Tube OD 1 MM	10.000
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
