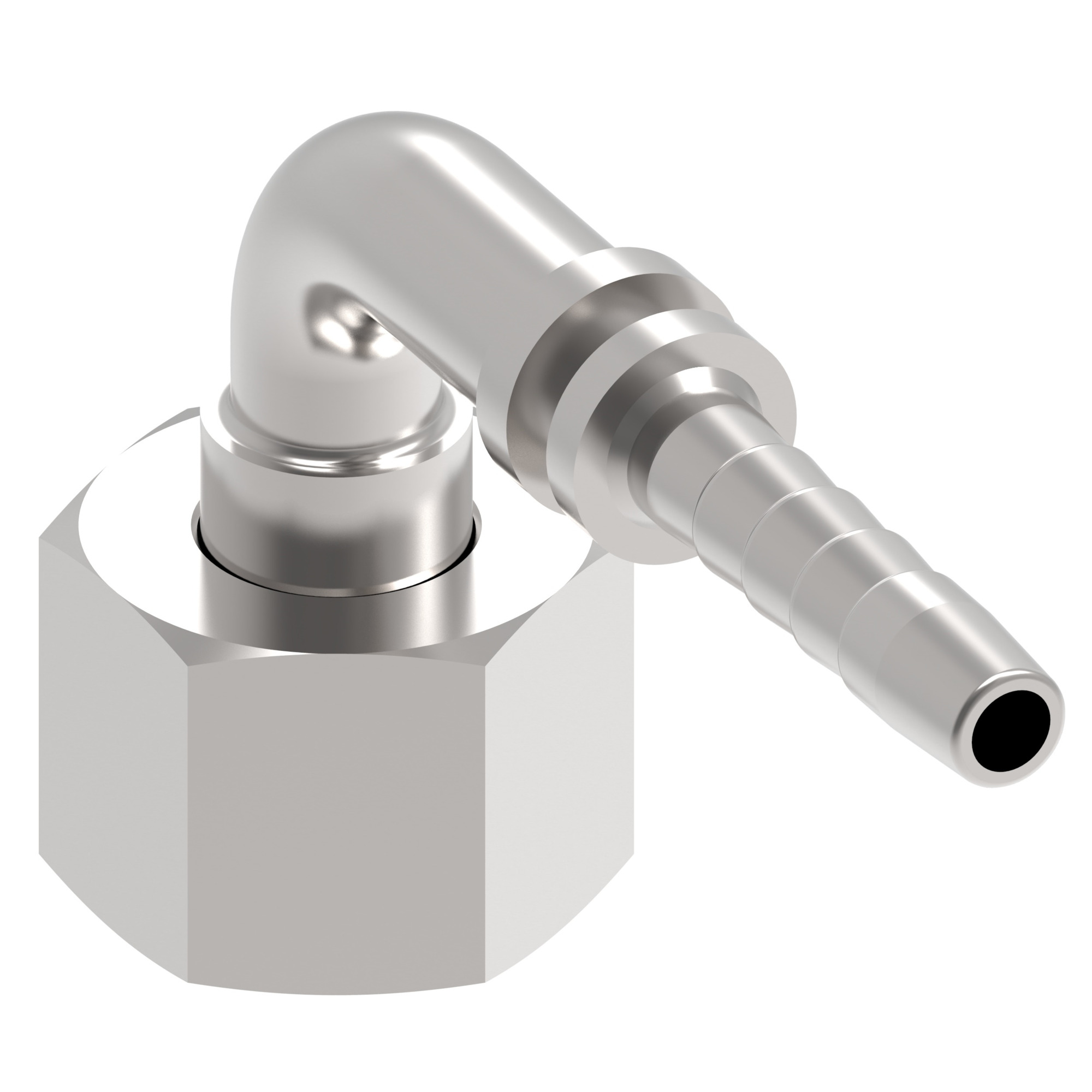

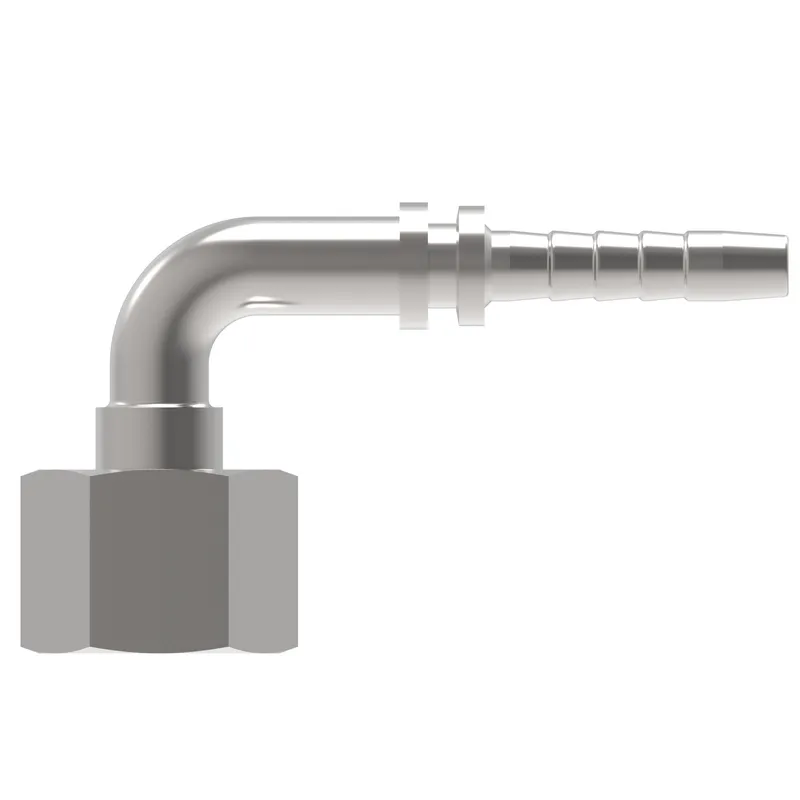

Danfoss 20491-26-10H80TZ

HOSE NIPPLE ASSY,2P/10,DKOL/26,CS,90D

MPN: 20491-26-10H80TZ
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 20491-26-10H80TZ?

Danfoss HOSE NIPPLE ASSY,2P/10,DKOL/26,CS,90D, manufacturer part number 20491-26-10H80TZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	3.354
A dimension MM	85.200
Angle shape	90 Degree
Brand	Winner by Danfoss
Compatible hose ID IN	0.620
Compatible hose ID MM	15.900
Construction Style	Crimp
Drop dimension IN	3.149
Drop dimension MM	80.00
End connection torque	81-96 lb-ft(110-130 Nm)
End Type 1	24 deg. DKO swivel light duty
Finish plating	Zinc plating
Hex size 1 IN	1.259
Hex size 1 MM	31.979
Hose cut off factor IN	2.015
Hose cut off factor MM	51.200
Hose size	-10
Inside diameter IN	0.472
Inside diameter MM	12.000
Product height in	3.560
Product height mm	90.424
Product length in	3.980
Product length mm	101.092
Product material	Carbon steel
Product width in	1.260
Product width mm	32.004
Seal material	Nitrile (NBR)
Series	Winner 2-Piece
Thread sealant	No
Thread size 1	M26x1.5
Tube OD 1 IN	0.708
Tube OD 1 MM	18.000
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
