Danfoss 20491-14-06WZ

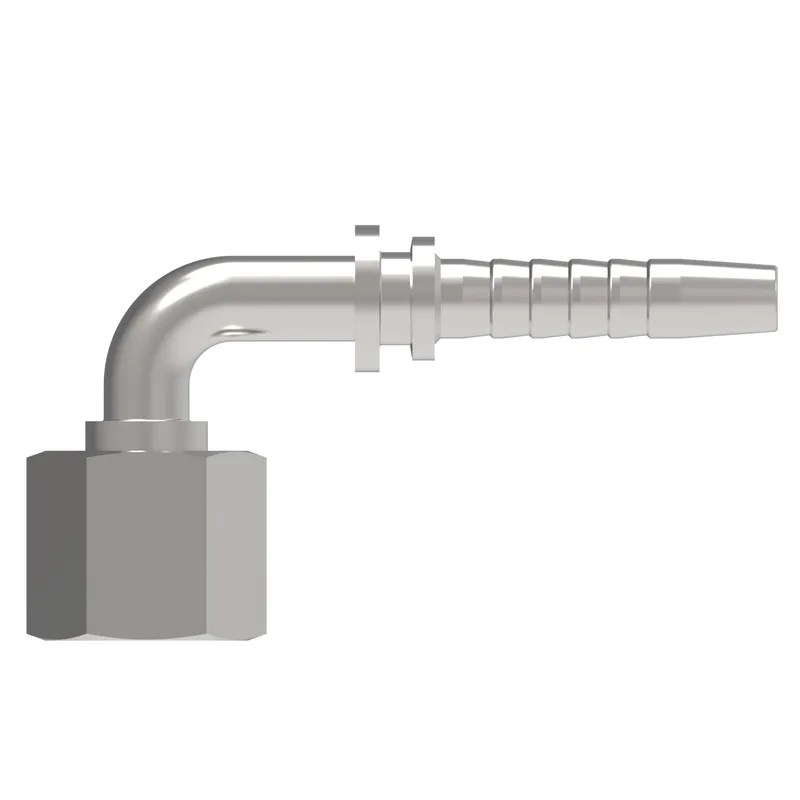

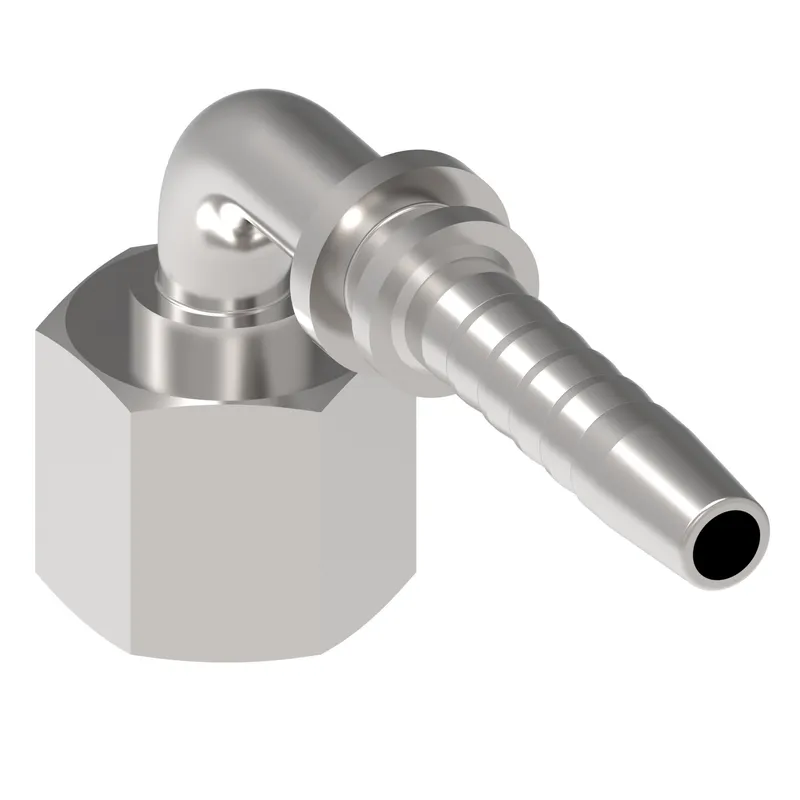

HOSE NIPPLE ASSY,2P/06,DKOL/14,CS,90D

MPN: 20491-14-06WZ
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 20491-14-06WZ?

Danfoss HOSE NIPPLE ASSY,2P/06,DKOL/14,CS,90D, manufacturer part number 20491-14-06WZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.362
A dimension MM	60.000
Angle shape	90 Degree
Brand	Winner by Danfoss
Compatible hose ID IN	0.380
Compatible hose ID MM	9.500
Construction Style	Crimp
Drop dimension IN	1.200
Drop dimension MM	30.50
End connection torque	19-23 lb-ft(25-30 Nm)
End size 1	-6
End Type 1	24 deg. DKO swivel light duty
Finish plating	Zinc plating
Hose cut off factor IN	1.180
Hose cut off factor MM	30.000
Hose size	-6
Inside diameter IN	0.275
Inside diameter MM	7.000
Product height in	1.890
Product height mm	48.006
Product length in	2.696
Product length mm	68.478
Product material	Carbon steel
Product width in	0.670
Product width mm	17.018
Proposition 65	Cancer and Reproductive Harm
Seal material	Nitrile (NBR)
Series	Winner 2-Piece
Thread size 1	M14x1.5
Tube OD 1 IN	0.314
Tube OD 1 MM	8.000
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
