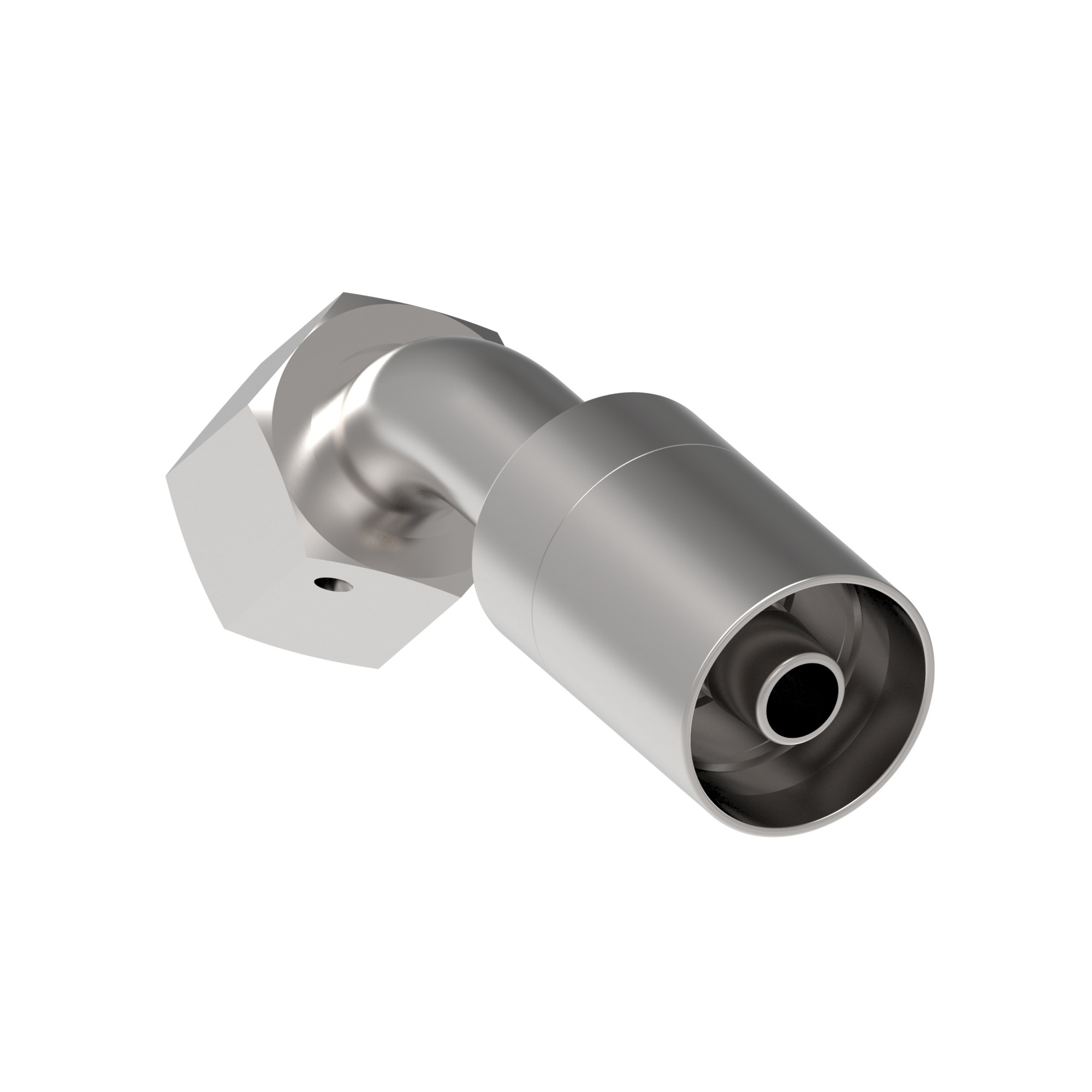

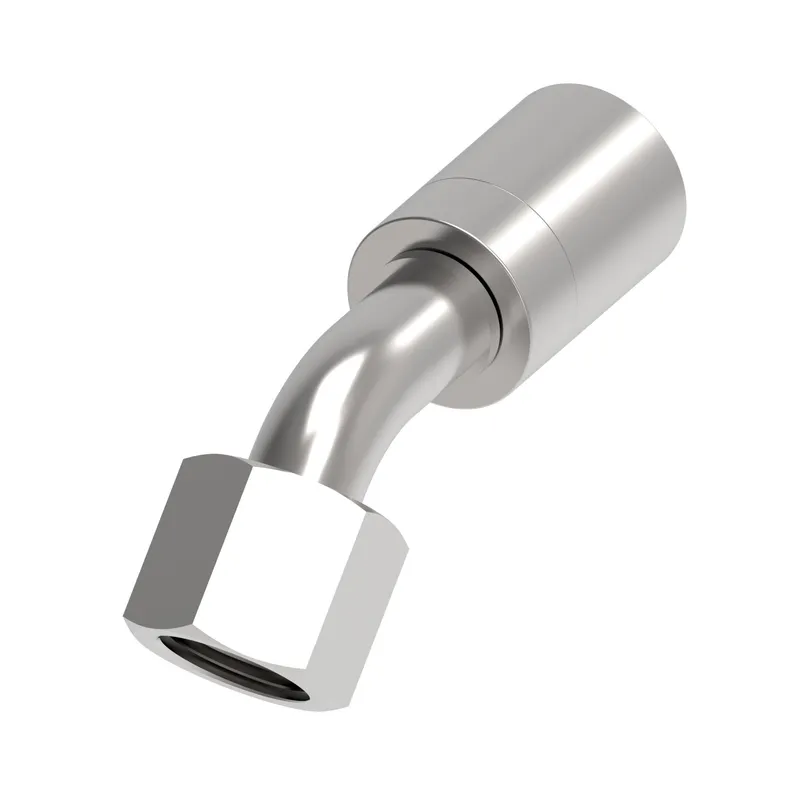

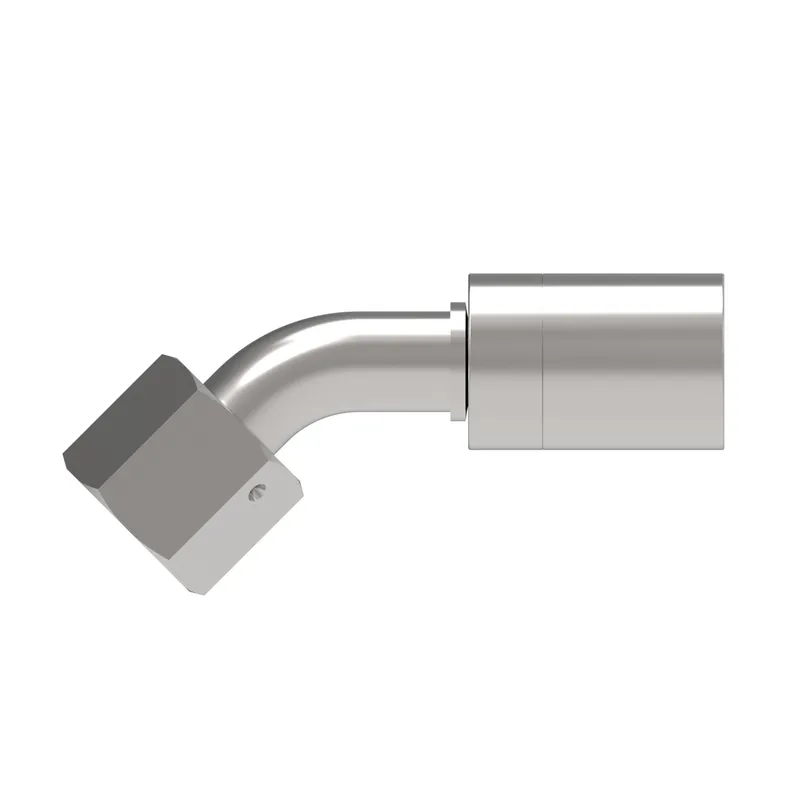

Danfoss 2044TC-36-16WZ

HOSE NIPPLE ASSY,2P/16,DKOL/36,CS,90D

MPN: 2044TC-36-16WZ
Category: Railway hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 2044TC-36-16WZ?

Danfoss HOSE NIPPLE ASSY,2P/16,DKOL/36,CS,90D, manufacturer part number 2044TC-36-16WZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	4.488
A dimension MM	114.000
Angle shape	90 Degree
Brand	Winner by Danfoss
Compatible hose ID IN	1.000
Compatible hose ID MM	25.400
Construction Style	Crimp
Drop dimension IN	1.259
Drop dimension MM	32.00
End type 1	24 deg. DKO swivel light duty
Finish plating	Zinc plating
Hex size 1 IN	1.610
Hex size 1 MM	40.900
Hose cut off factor IN	3.055
Hose cut off factor MM	77.600
Hose size	-16
Inside diameter IN	0.8140
Inside diameter MM	20.7000
Product height in	2.810
Product height mm	71.374
Product length in	5.290
Product length mm	134.366
Product material	Carbon steel
Product width in	1.610
Product width mm	40.894 mm
Seal material	Nitrile (NBR)
Series	Winner 2-Piece
Thread sealant	No
Tube OD 1 IN	1.102
Tube OD 1 MM	28.000
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
