Danfoss 2044TC-26-08TZ

HOSE NIPPLE ASSY,2P/08,DKOL/26,CS,45D

MPN
2044TC-26-08TZ
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

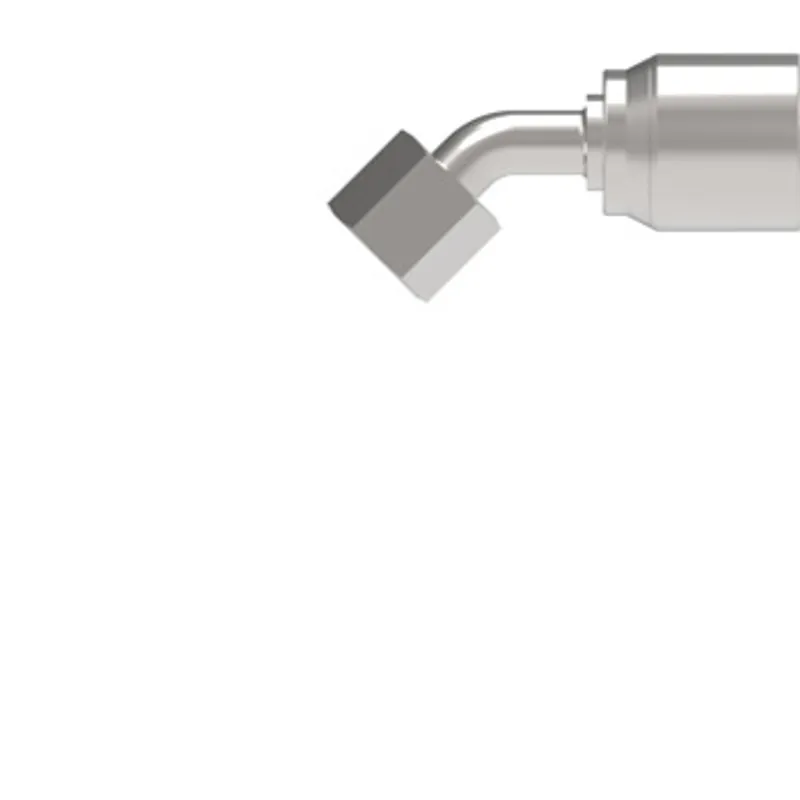

What is the Danfoss 2044TC-26-08TZ?

Danfoss HOSE NIPPLE ASSY,2P/08,DKOL/26,CS,45D, manufacturer part number 2044TC-26-08TZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN3.125
A dimension MM79.400
Angle shape45 Degree
BrandWinner by Danfoss
Compatible hose ID IN0.500
Compatible hose ID MM12.700
Construction StyleCrimp
Drop dimension IN0.826
Drop dimension MM21.00
End connection torque57-62 lb-ft(77-85 Nm)
End type 124 deg. DKO swivel light duty
Finish platingZinc plating
Hex size 1 IN1.260
Hex size 1 MM32.004
Hose cut off factor IN1.885
Hose cut off factor MM47.900
Hose size-8
Inside diameter IN0.3770
Inside diameter MM9.6000
Product height in1.850
Product height mm46.990
Product length in3.750
Product length mm95.250
Product materialCarbon steel
Product width in1.260
Product width mm32.004 mm
Seal materialNitrile (NBR)
SeriesWinner 2-Piece
Thread sealantNo
Thread size 1M26x1.5
Tube OD 1 IN0.708
Tube OD 1 MM18.000
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40

2044TC-26-08TZ: frequently asked questions

When can 2044TC-26-08TZ be shipped?

2044TC-26-08TZ is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 2044TC-26-08TZ in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 2044TC-26-08TZ and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 2044TC-26-08TZ, subject to availability and destination.
