Danfoss 20441Y-26-12WZ

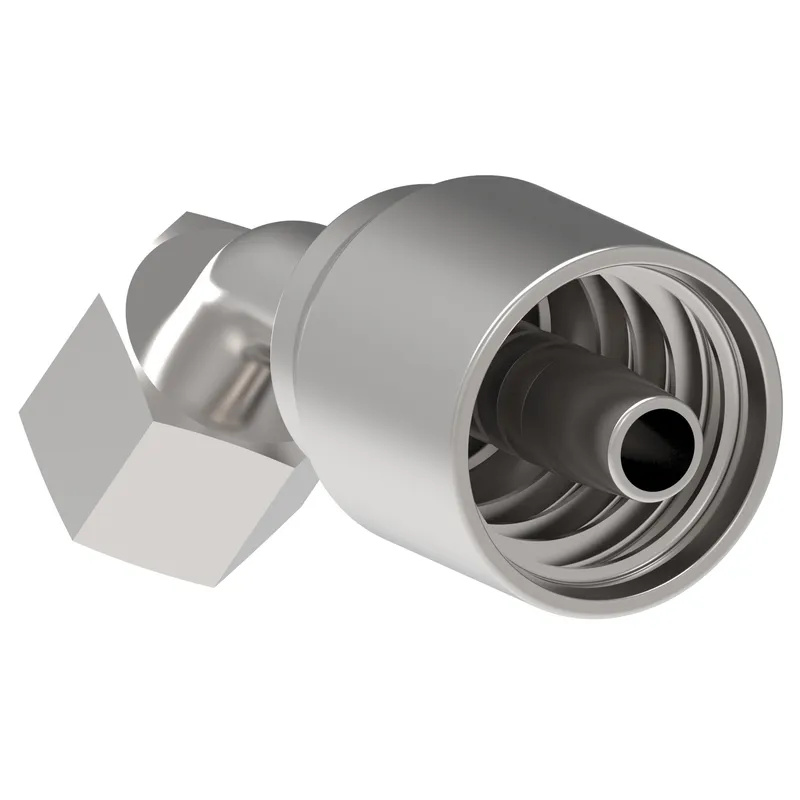

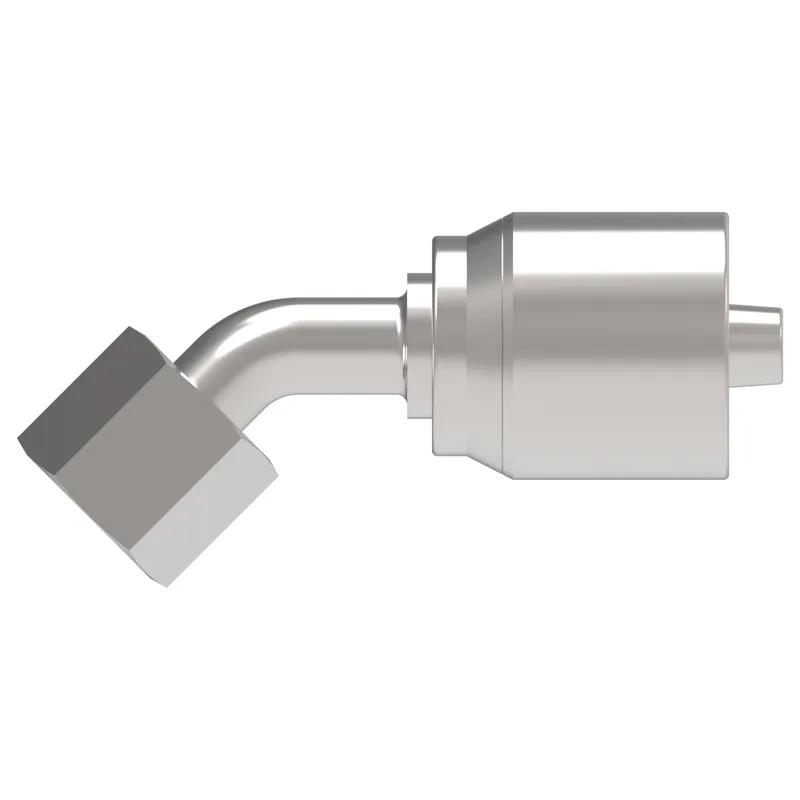

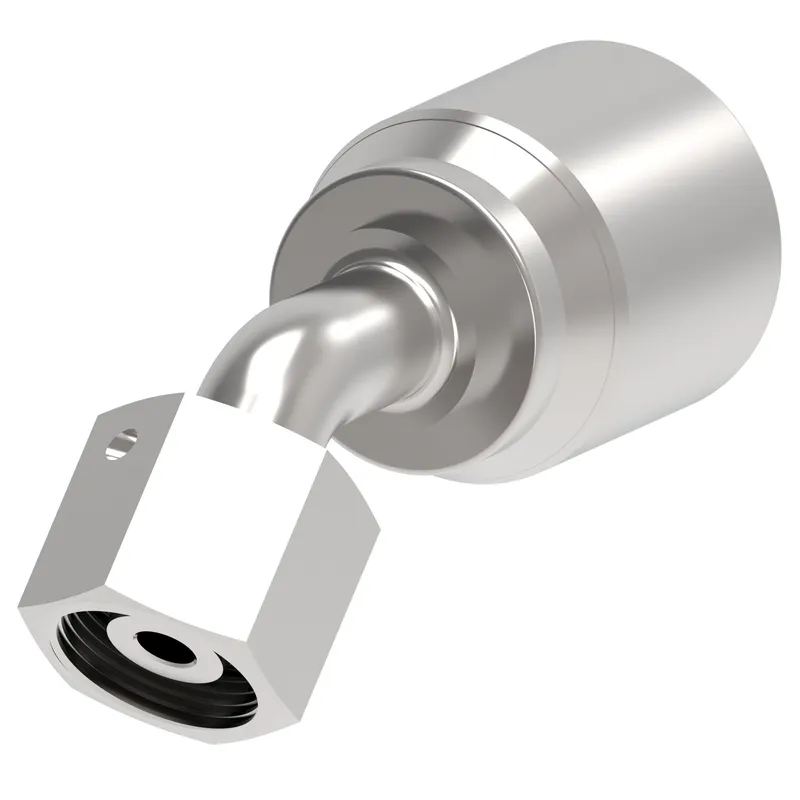

HOSE NIPPLE ASSY,2P/12,DKOL/26,CS,45D

MPN
20441Y-26-12WZ
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 20441Y-26-12WZ?

Danfoss HOSE NIPPLE ASSY,2P/12,DKOL/26,CS,45D, manufacturer part number 20441Y-26-12WZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN3.933
A dimension MM99.900
Angle shape45 Degree
BrandWinner by Danfoss
Compatible hose ID IN0.750
Compatible hose ID MM19.000
Construction StyleCrimp
Drop dimension IN0.968
Drop dimension MM24.60
End connection torque81-96 lb-ft(110-130 Nm)
End Type 124 deg. DKO swivel light duty
Finish platingZinc plating
Hex size 1 IN1.259
Hex size 1 MM31.979
Hex size 2 IN1.260
Hex size 2 MM32.004
Hose cut off factor IN2.417
Hose cut off factor MM61.400
Hose size-12
Inside diameter IN0.590
Inside diameter MM15.000
Product height in2.360
Product height mm59.944
Product length in4.350
Product length mm110.490
Product materialCarbon steel
Product width in1.550
Product width mm39.37
Seal materialNitrile (NBR)
SeriesWinner 2-Piece
Thread sealantNo
Thread size 1M26x1.5
Tube OD 1 IN0.750
Tube OD 1 MM19.000
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40

20441Y-26-12WZ: frequently asked questions

When can 20441Y-26-12WZ be shipped?

20441Y-26-12WZ is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 20441Y-26-12WZ in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 20441Y-26-12WZ and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 20441Y-26-12WZ, subject to availability and destination.
