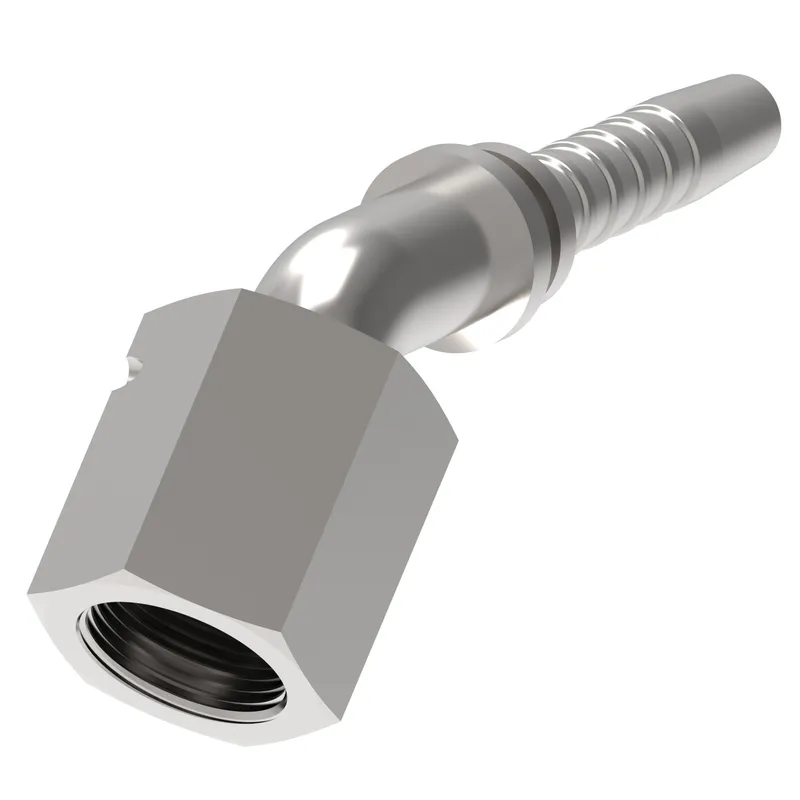

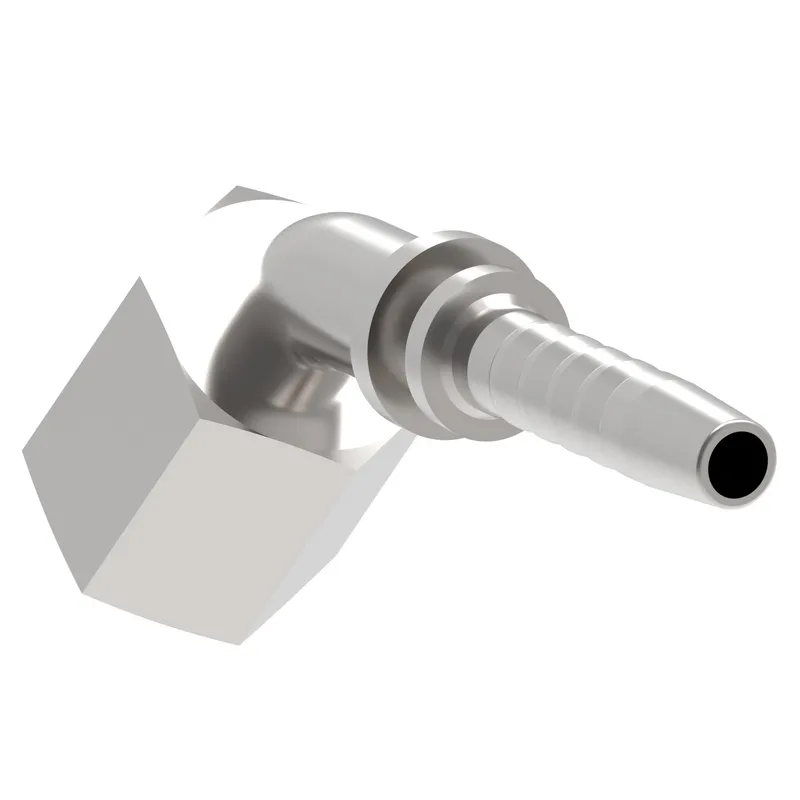

Danfoss 20441-36-20WZ

HOSE NIPPLE ASSY,2P/20,DKOL/36,CS,45D

MPN
20441-36-20WZ
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 20441-36-20WZ?

Danfoss HOSE NIPPLE ASSY,2P/20,DKOL/36,CS,45D, manufacturer part number 20441-36-20WZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN5.555
A dimension MM141.100
Angle shape45 Degree
BrandWinner by Danfoss
Compatible hose ID IN1.250
Compatible hose ID MM31.800
Construction StyleCrimp
Drop dimension IN1.260
Drop dimension MM32.00
End Type 124 deg. DKO swivel light duty
Finish platingZinc plating
Hex size 1 IN1.614
Hex size 1 MM41.000
Hex size 2 IN1.600
Hex size 2 MM40.640
Hose cut off factor IN3.429
Hose cut off factor MM87.100
Hose size-20
Inside diameter IN1.062
Inside diameter MM27.000
Product height in2.780
Product height mm70.612
Product length in6.200
Product length mm157.480
Product materialCarbon steel
Product width in1.600
Product width mm40.64
Seal materialNitrile (NBR)
SeriesWinner 2-Piece
Thread sealantNo
Thread size 1M36x2
Tube OD 1 IN1.102
Tube OD 1 MM28.000
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40

20441-36-20WZ: frequently asked questions

When can 20441-36-20WZ be shipped?

20441-36-20WZ is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 20441-36-20WZ in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 20441-36-20WZ and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 20441-36-20WZ, subject to availability and destination.
