Danfoss 20441-16-06WZF

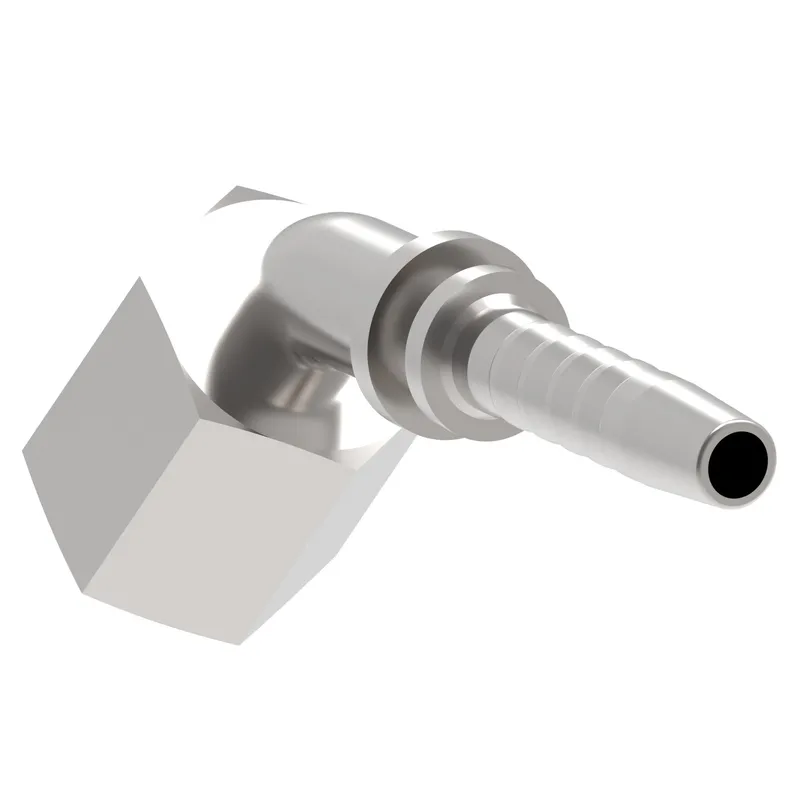

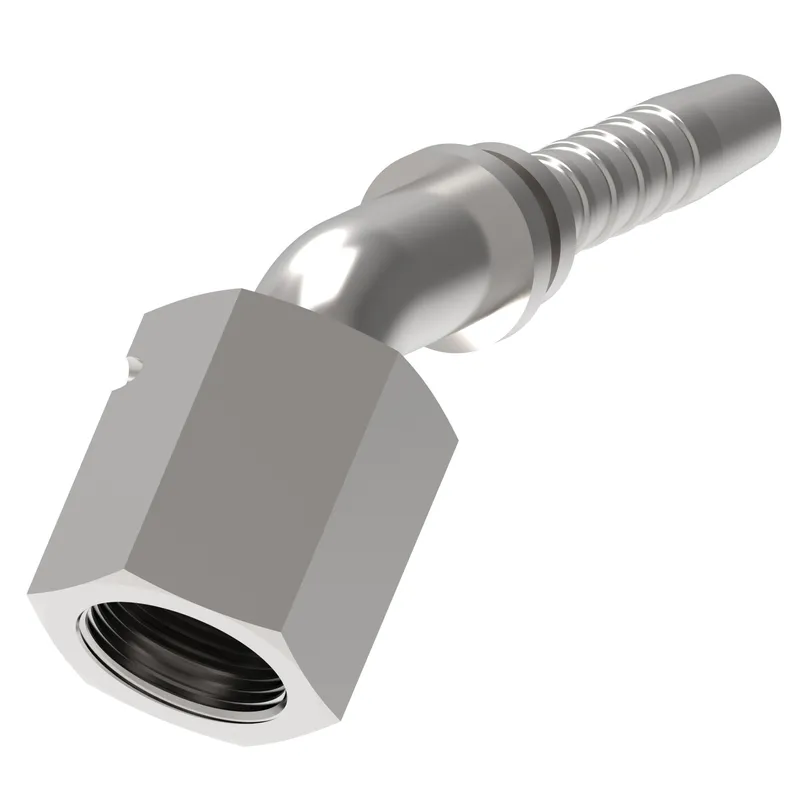

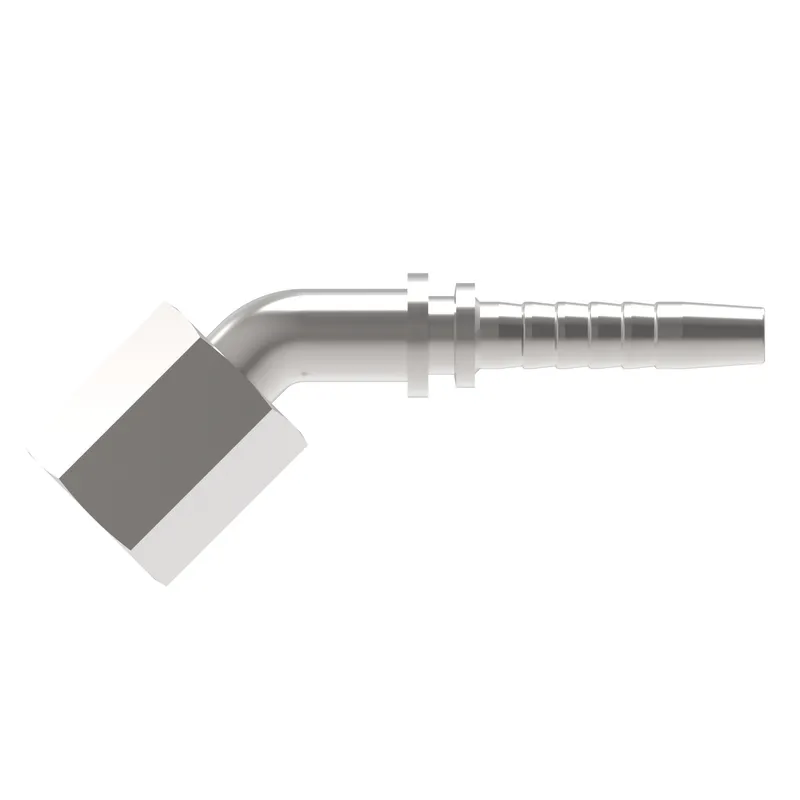

HOSE NIPPLE ASSY,2P/06,DKOL/08,CS,45D

MPN
20441-16-06WZF
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 20441-16-06WZF?

Danfoss HOSE NIPPLE ASSY,2P/06,DKOL/08,CS,45D, manufacturer part number 20441-16-06WZF. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN2.770
A dimension MM70.300
Angle shape45 Degree
BrandWinner by Danfoss
Compatible hose ID IN0.380
Compatible hose ID MM9.500
Construction StyleCrimp
Drop dimension IN0.670
Drop dimension MM17.00
End connection torque33-40 lb-ft(45-55 Nm)
End size 1-8
End Type 124 deg. DKO swivel light duty
Finish platingZinc plating
Hex size 1 IN0.748
Hex size 1 MM19.000
Hose cut off factor IN1.590
Hose cut off factor MM40.300
Hose size-6
Inside diameter IN0.220
Inside diameter MM5.500
Product height in3.400
Product height mm86.360
Product length in5.162
Product length mm131.115
Product materialCarbon steel
Product width in0.750
Product width mm19.05
Seal materialNitrile (NBR)
SeriesWinner 2-Piece
Thread size 1M16x1.5
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40

20441-16-06WZF: frequently asked questions

When can 20441-16-06WZF be shipped?

20441-16-06WZF is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 20441-16-06WZF in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 20441-16-06WZF and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 20441-16-06WZF, subject to availability and destination.
