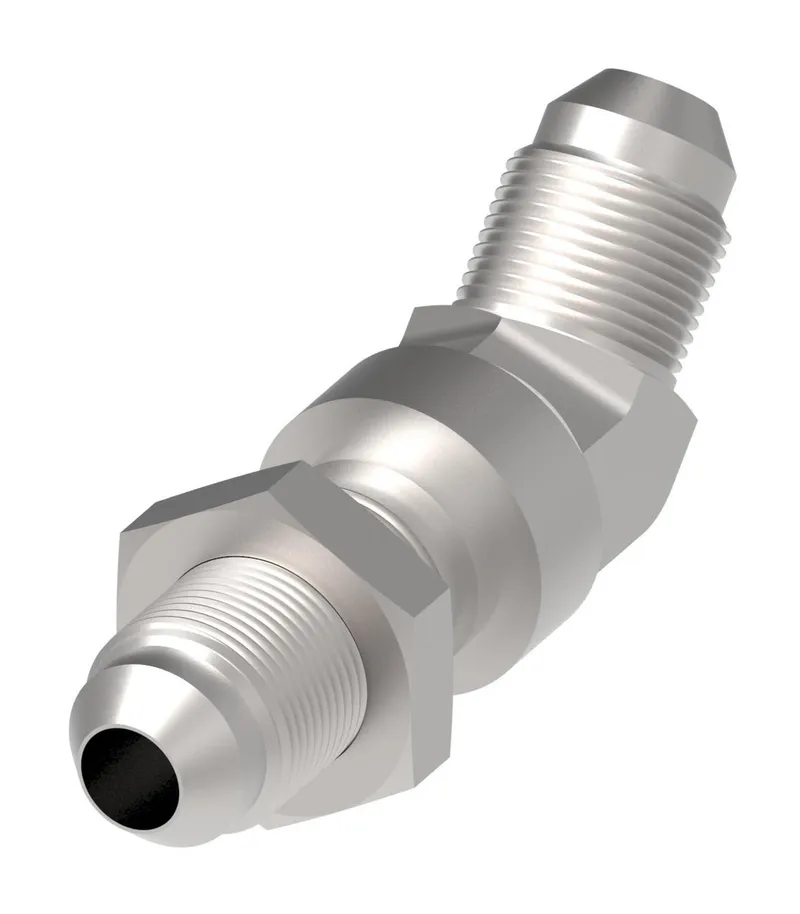

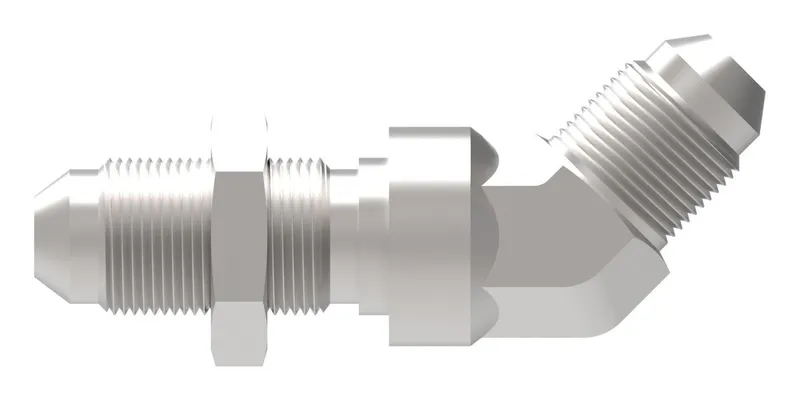

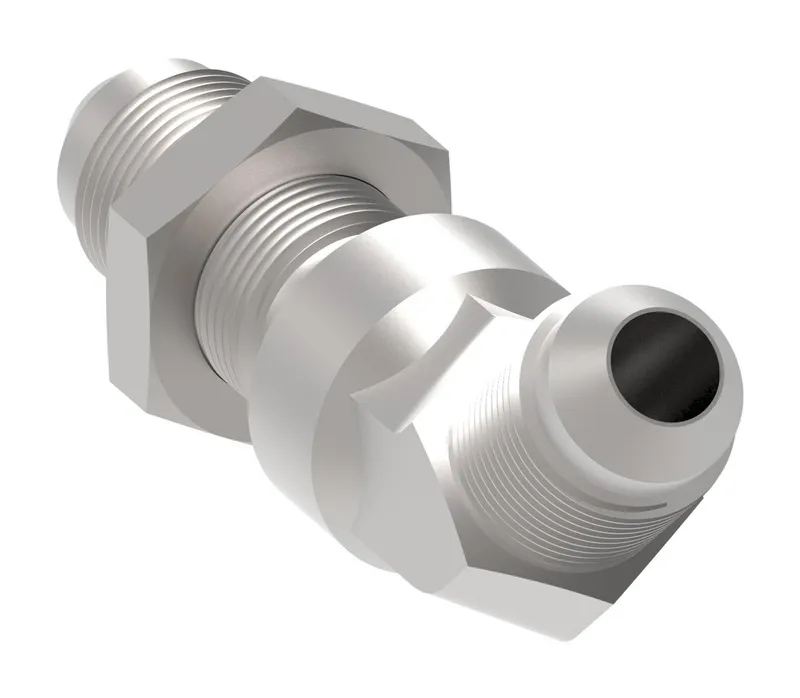

Adapter-ELB,2042-1,-5-5,CS,ZD

Name: Danfoss 2042-1-5-5S – Adapter-ELB,2042-1,-5-5,CS,ZD
Brand: Danfoss (Drives)
SKU: 2042-1-5-5S

MPN: 2042-1-5-5S · Brand: Danfoss (Drives)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Adapters and swivel joints
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 2042-1-5-5S be shipped?

2042-1-5-5S is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 2042-1-5-5S in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 2042-1-5-5S and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 2042-1-5-5S, subject to availability and destination.

Danfoss Adapter-ELB,2042-1,-5-5,CS,ZD, manufacturer part number 2042-1-5-5S. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146186164
Angle shape	45 Degree
Brand	Danfoss
Drop dimension IN	0.770
Drop dimension MM	19.60
End Type 1	Male 37 degree
End Type 2	Male 37 degree
Finish plating	Dura-Kote
Hex size 1 IN	0.750
Hex size 1 MM	19.100
Product material	Carbon steel
Thread sealant	No
Thread size 1	3/4-16 UNF
Thread size 2	3/4-16 UNF
Tube outside diameter 1 IN	0.390
Tube outside diameter 1 MM	9.9
Tube outside diameter 2 IN	0.390
Tube outside diameter 2 MM	9.9
Working temp max C	204
Working temp max F	400
Working temp min C	-54
Working temp min F	-65
