Danfoss 2041TC-30-12TZ

HOSE NIPPLE ASSY,2P/12,DKOL/30,CS,STR

MPN: 2041TC-30-12TZ
Category: Railway hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

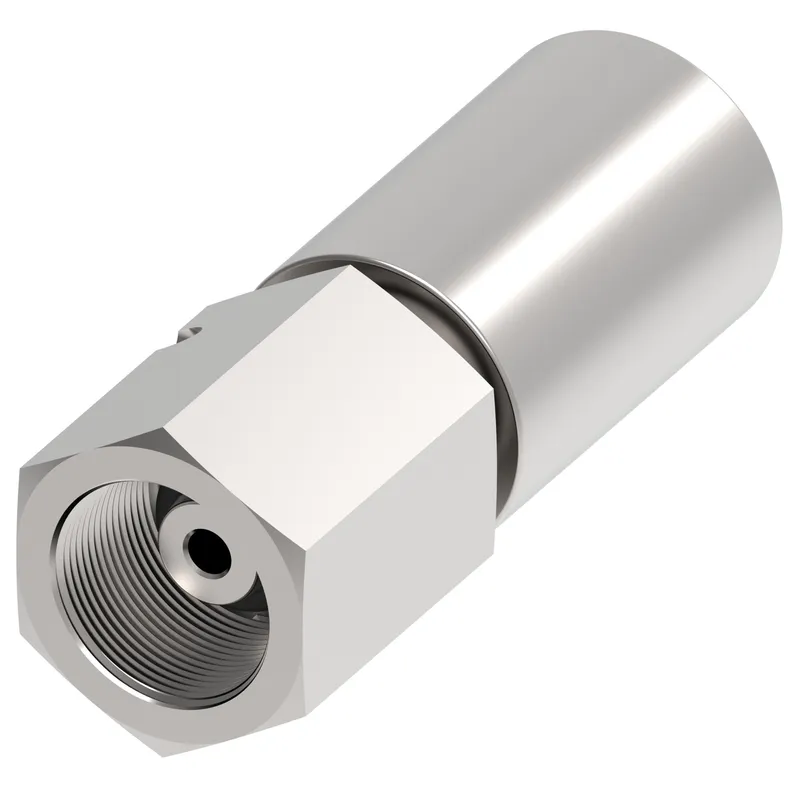

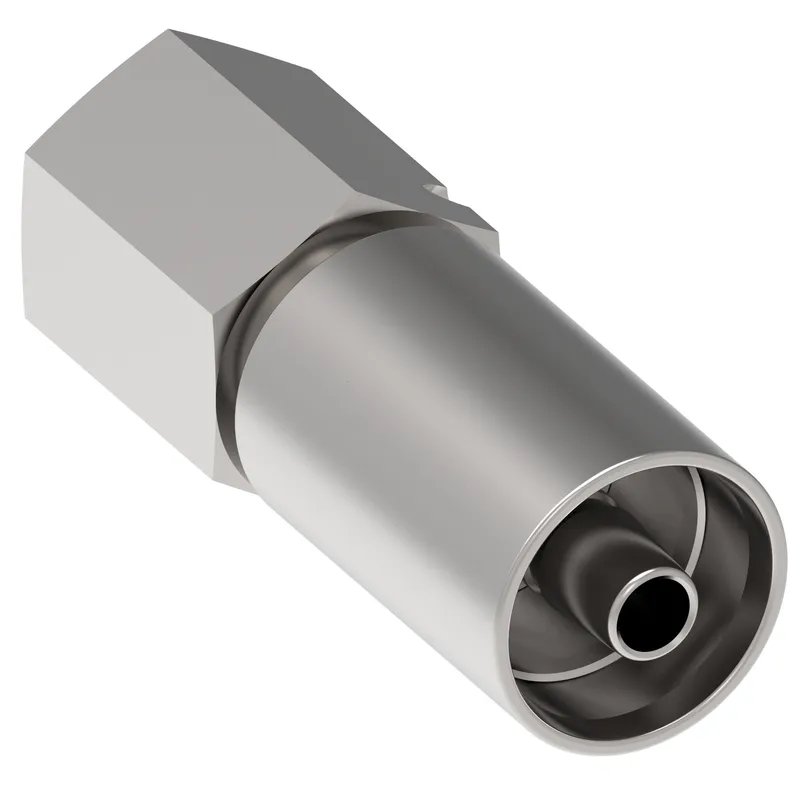

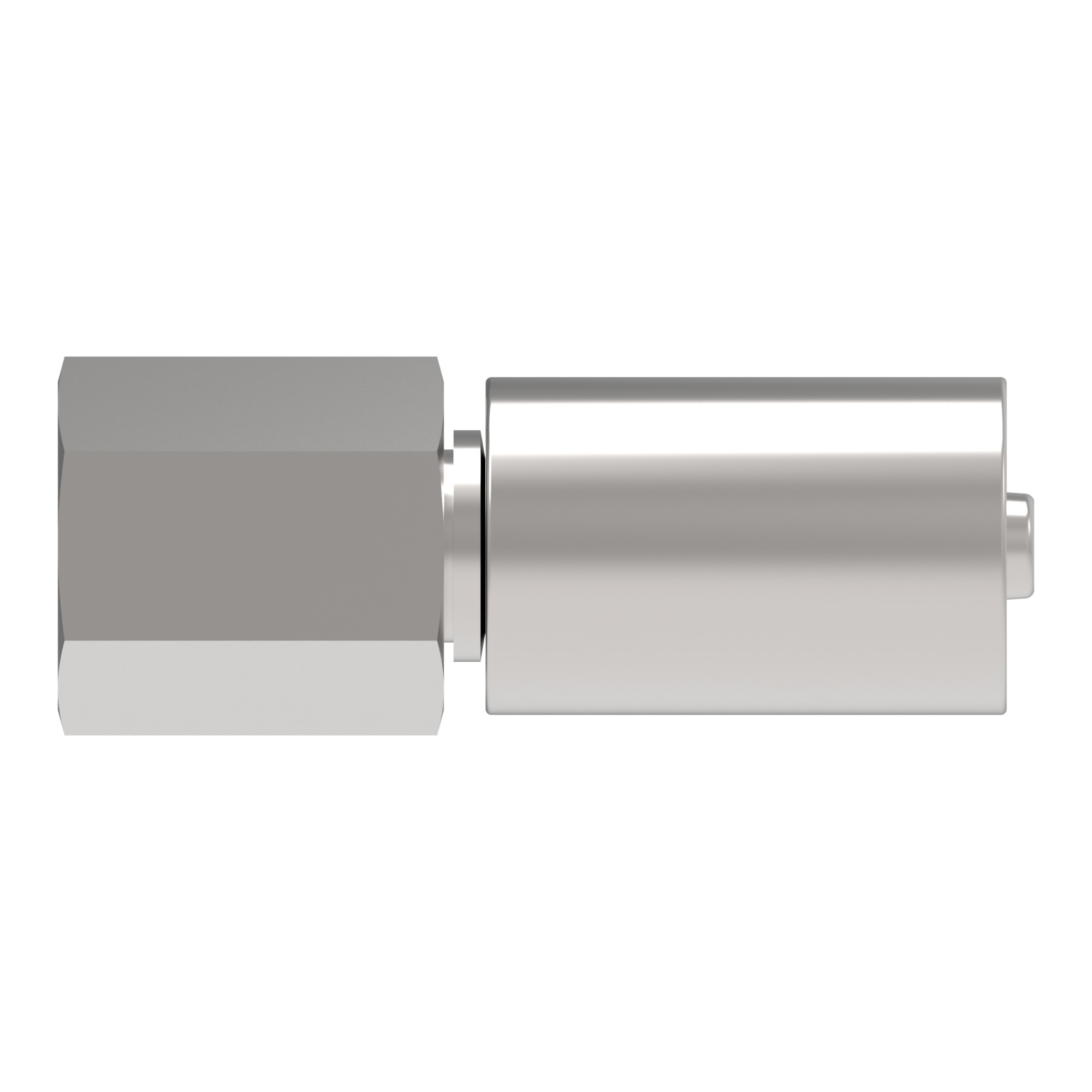

What is the Danfoss 2041TC-30-12TZ?

Danfoss HOSE NIPPLE ASSY,2P/12,DKOL/30,CS,STR, manufacturer part number 2041TC-30-12TZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.618
A dimension MM	66.500
Angle shape	Straight
Brand	Winner by Danfoss
Compatible hose ID IN	0.750
Compatible hose ID MM	19.000
Construction Style	Crimp
End type 1	24 deg. DKO swivel light duty
Finish plating	Zinc plating
Hex size 1 IN	1.417
Hex size 1 MM	36.000
Hex size 2 IN	1.420
Hex size 2 MM	36.068
Hose cut off factor IN	1.358
Hose cut off factor MM	34.500
Hose size	-12
Inside diameter IN	0.6100
Inside diameter MM	15.5000
Product height in	1.640
Product height mm	41.656
Product length in	2.893
Product length mm	73.482
Product material	Carbon steel
Product width in	1.420
Product width mm	36.068 mm
Seal material	Nitrile (NBR)
Series	Winner 2-Piece
Thread sealant	No
Thread size 1	M30x2
Tube OD 1 IN	0.866
Tube OD 1 MM	22.000
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
