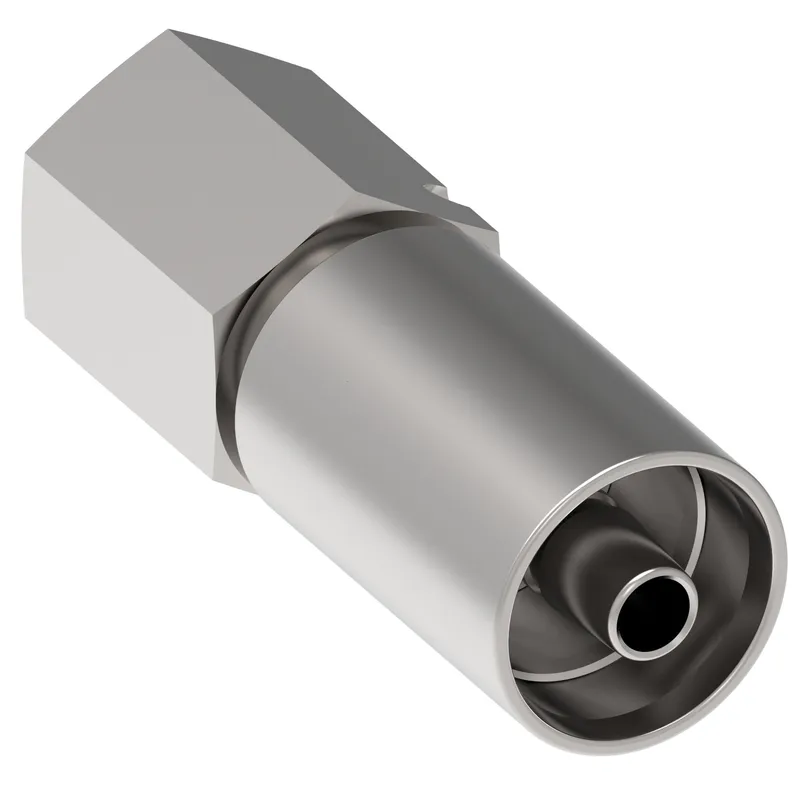

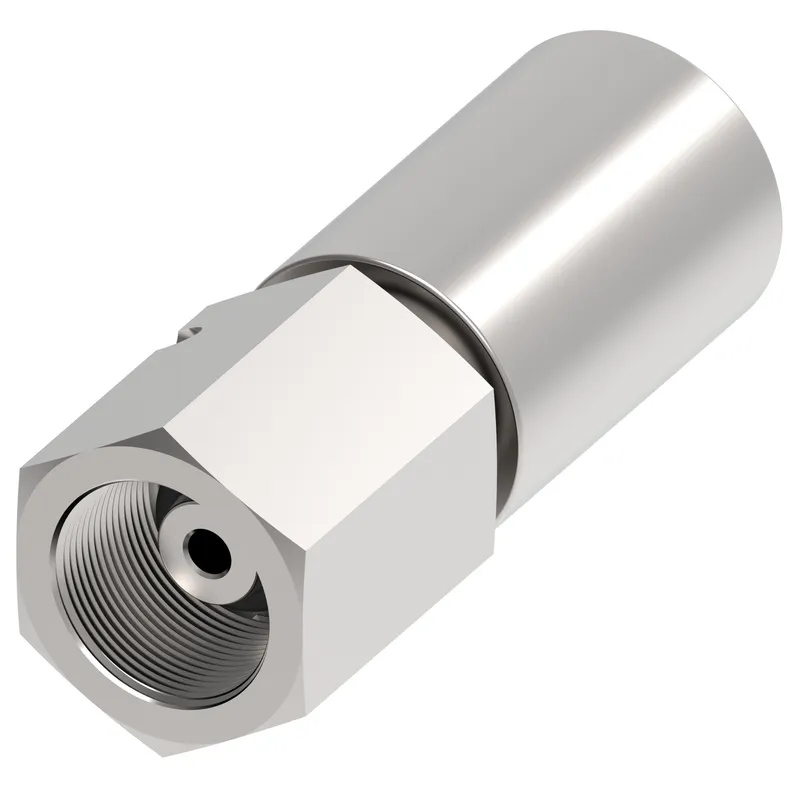

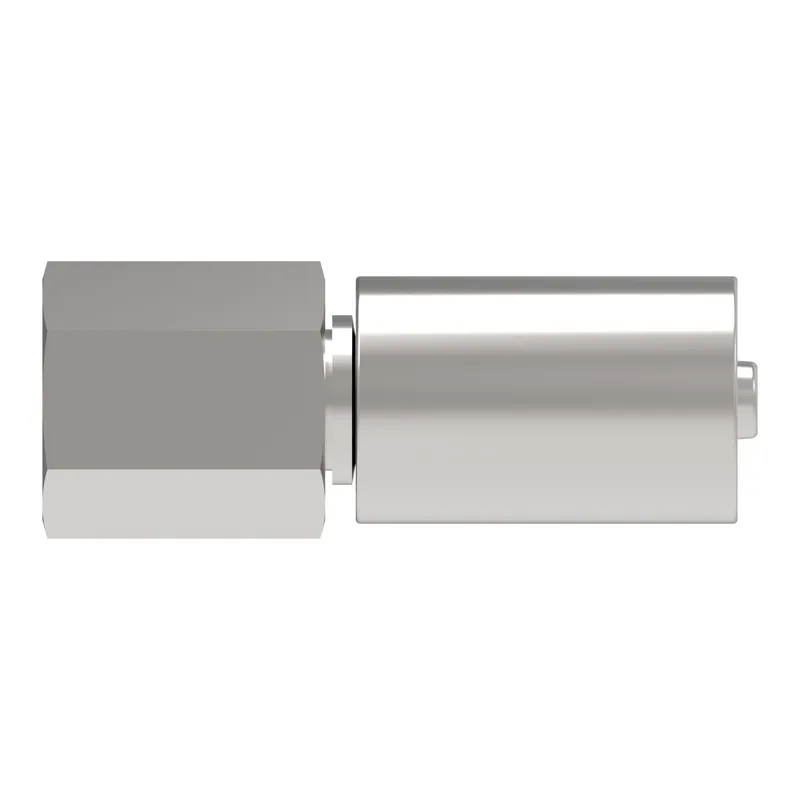

Danfoss 2041TC-22-08TZ

HOSE NIPPLE ASSY,1P/08,DKOL/22,CS,STR

MPN: 2041TC-22-08TZ
Category: Railway hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 2041TC-22-08TZ?

Danfoss HOSE NIPPLE ASSY,1P/08,DKOL/22,CS,STR, manufacturer part number 2041TC-22-08TZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.400
A dimension MM	61.000
Angle shape	Straight
Brand	Winner by Danfoss
Compatible hose ID IN	0.500
Compatible hose ID MM	12.700
Construction Style	Crimp
End type 1	24 deg. DKO swivel light duty
Finish plating	Zinc plating
Hex size 1 IN	0.000
Hex size 1 MM	0.000
Hex size 2 IN	1.062
Hex size 2 MM	27.000
Hose cut off factor IN	1.160
Hose cut off factor MM	29.500
Hose size	-8
Inside diameter IN	0.3700
Inside diameter MM	9.6000
Product height in	1.220
Product height mm	30.988
Product length in	2.578
Product length mm	65.481
Product material	Carbon steel
Product width in	1.060
Product width mm	26.924 mm
Thread sealant	No
