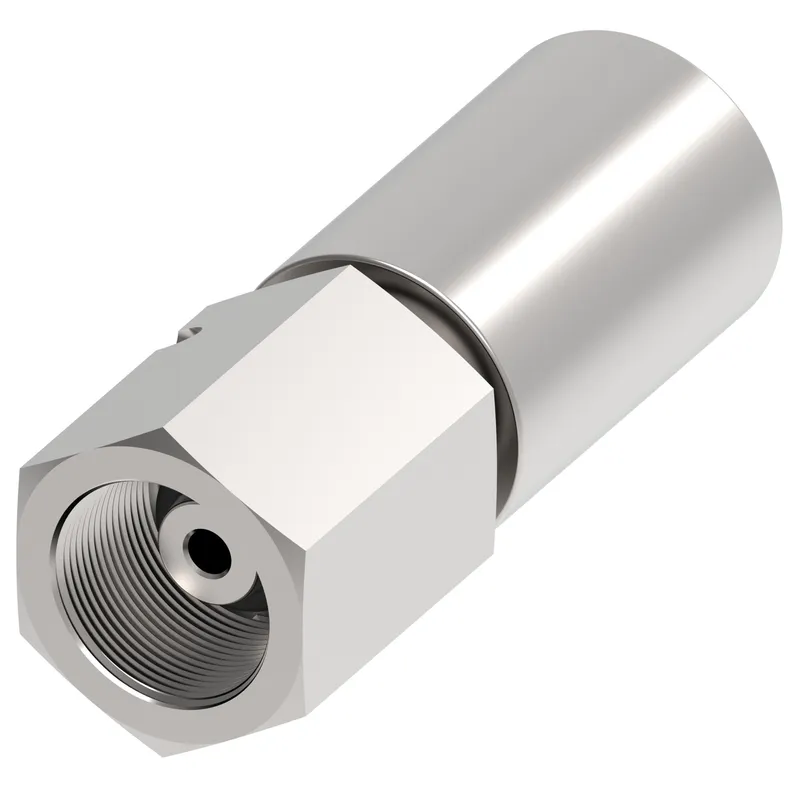

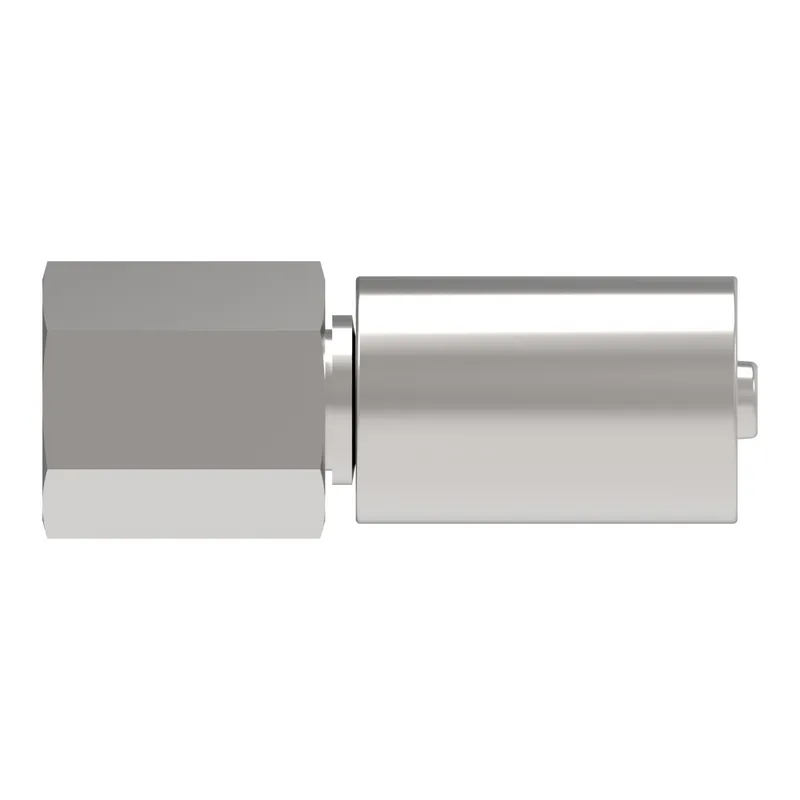

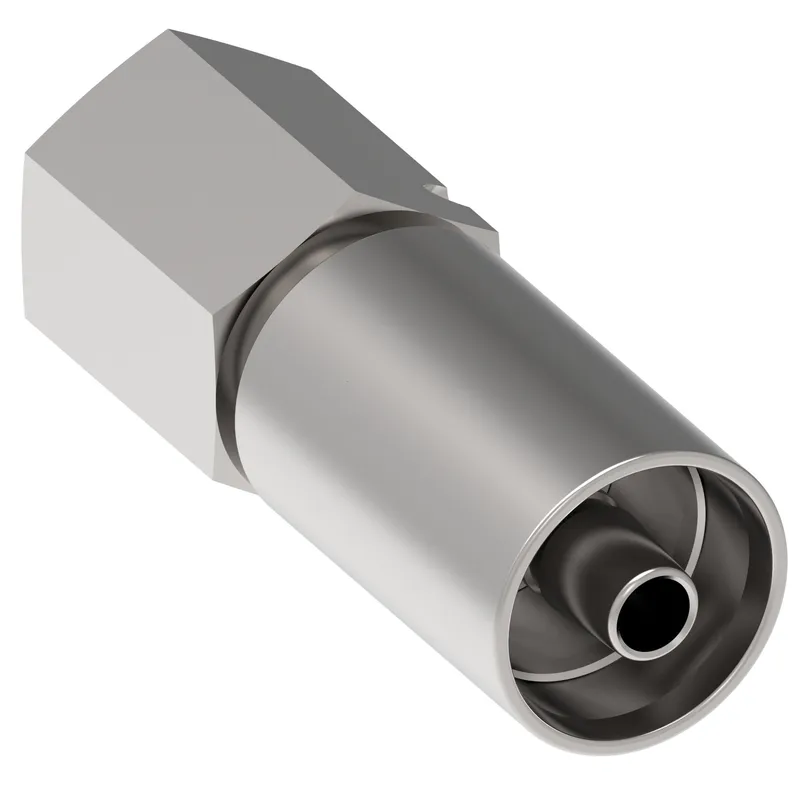

Danfoss 2041TC-12-04SVW – HOSE NIPPLE, 1P/04, DKOL/12, AP, STR
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Railway hose and fittings |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 2041TC-12-04SVW be shipped?
2041TC-12-04SVW is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 2041TC-12-04SVW in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 2041TC-12-04SVW and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 2041TC-12-04SVW, subject to availability and destination.
Danfoss HOSE NIPPLE, 1P/04, DKOL/12, AP, STR, manufacturer part number 2041TC-12-04SVW. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| A dimension IN | 1.790 |
| A dimension MM | 45.700 |
| Angle shape | Straight |
| Brand | Winner by Danfoss |
| Compatible hose ID IN | 0.250 |
| Compatible hose ID MM | 6.400 |
| Construction Style | Crimp |
| End size 1 | -12 |
| End type 1 | 24 deg. DKO swivel light duty |
| Hex size 1 IN | 0.670 |
| Hex size 1 MM | 17.018 |
| Hose cut off factor IN | 0.880 |
| Hose cut off factor MM | 22.300 |
| Hose size | -4 |
| Inside diameter IN | 0.090 |
| Inside diameter MM | 2.500 |
| Product height in | 0.770 |
| Product height mm | 19.558 |
| Product length in | 1.790 |
| Product length mm | 45.466 |
| Product material | 316L Stainless steel |
| Product width in | 0.680 |
| Product width mm | 17.272 mm |
| Thread sealant | No |
