Danfoss 20411Y-22-12WZ

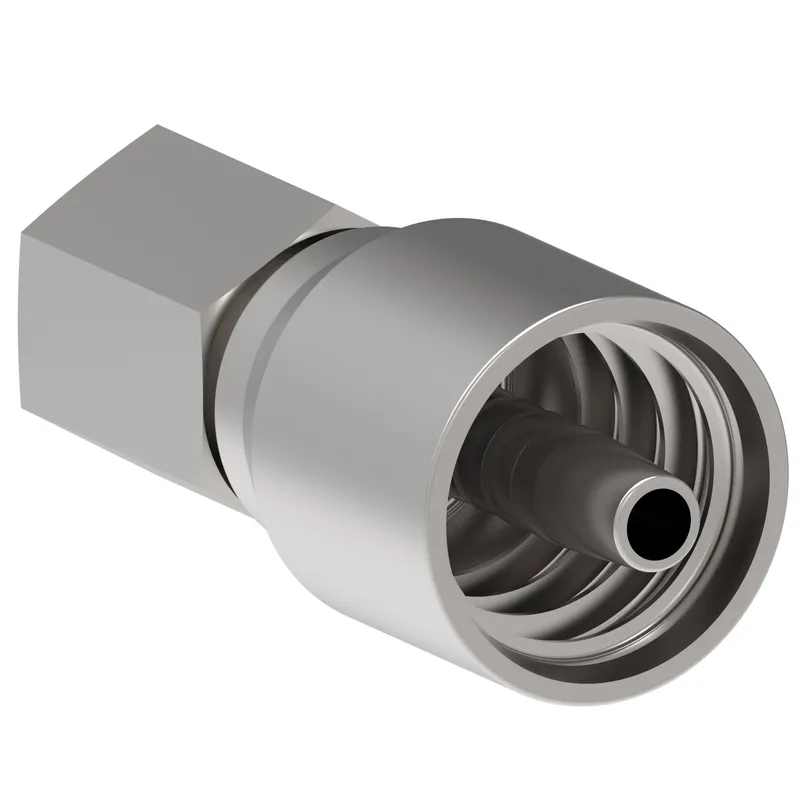

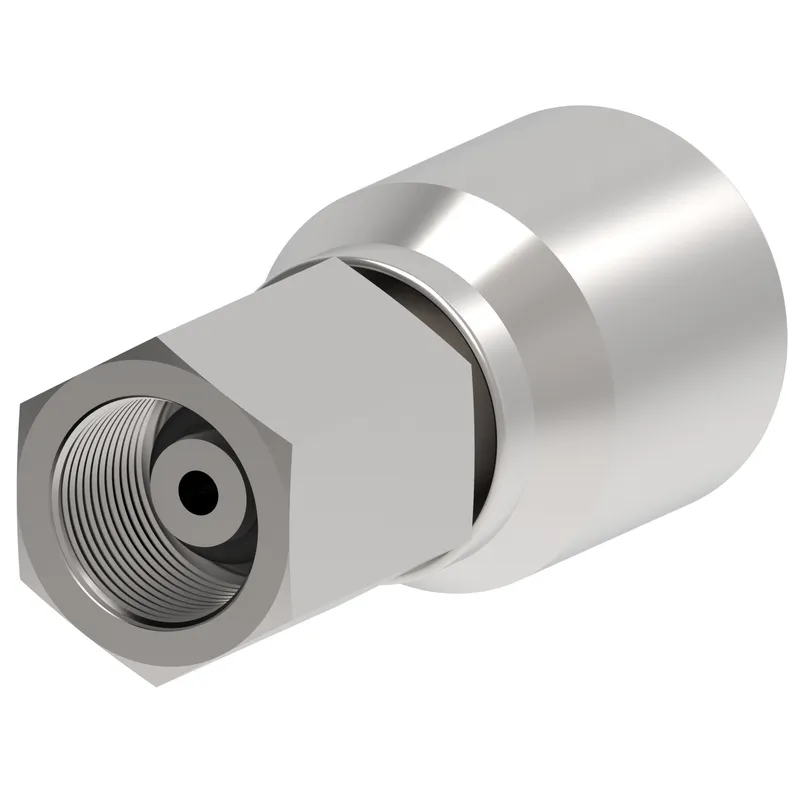

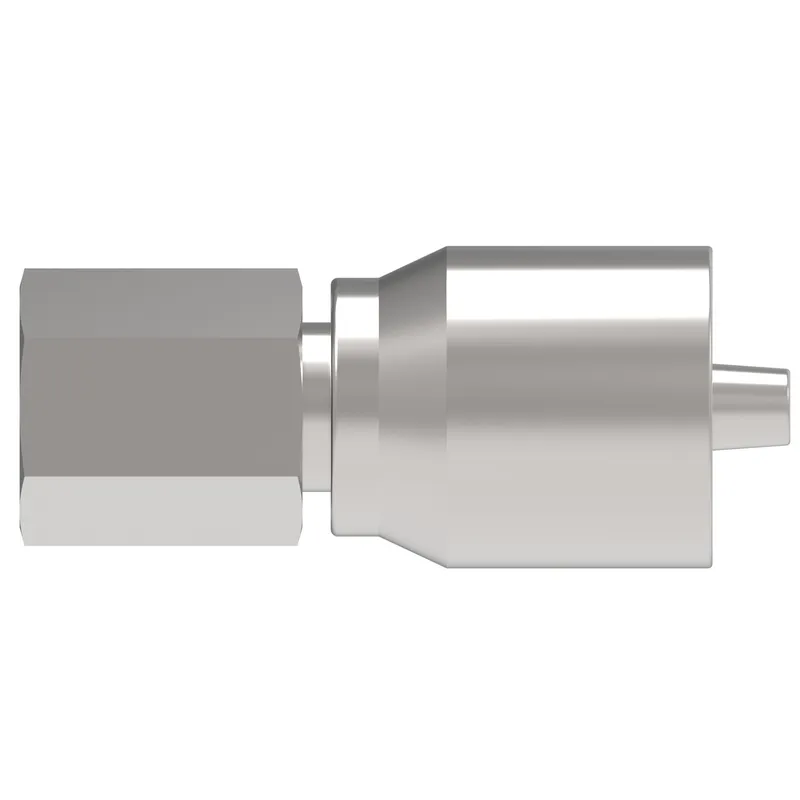

HOSE NIPPLE ASSY,1P/12,DKOL/22,CS,STR

MPN: 20411Y-22-12WZ
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 20411Y-22-12WZ?

Danfoss HOSE NIPPLE ASSY,1P/12,DKOL/22,CS,STR, manufacturer part number 20411Y-22-12WZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.550
A dimension MM	65.000
Angle shape	Straight
Brand	Winner by Danfoss
Compatible hose ID IN	0.740
Compatible hose ID MM	19.000
Construction Style	Crimp
End connection torque	46-50 lb-ft(62-68 Nm)
End size 2	-8
End Type 1	24 deg. DKO swivel light duty
End Type 2	Line/hose/tube
Finish plating	Zinc plating
Hex size 1 IN	1.060
Hex size 1 MM	26.924
Hose cut off factor IN	1.060
Hose cut off factor MM	26.500
Hose size	-12
Inside diameter IN	0.280
Inside diameter MM	7.000
Product height in	1.550
Product height mm	39.370
Product length in	2.670
Product length mm	67.818
Product material	Carbon steel
Product width in	1.550
Product width mm	39.37
Seal material	Nitrile (NBR)
Thread sealant	No
Thread size 1	M22x1.5
Tube OD 1 IN	0.590
Tube OD 1 MM	15.000
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40

20411Y-22-12WZ: frequently asked questions

When can 20411Y-22-12WZ be shipped?

20411Y-22-12WZ is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 20411Y-22-12WZ in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 20411Y-22-12WZ and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 20411Y-22-12WZ, subject to availability and destination.
