Danfoss 20411-52-32WZ

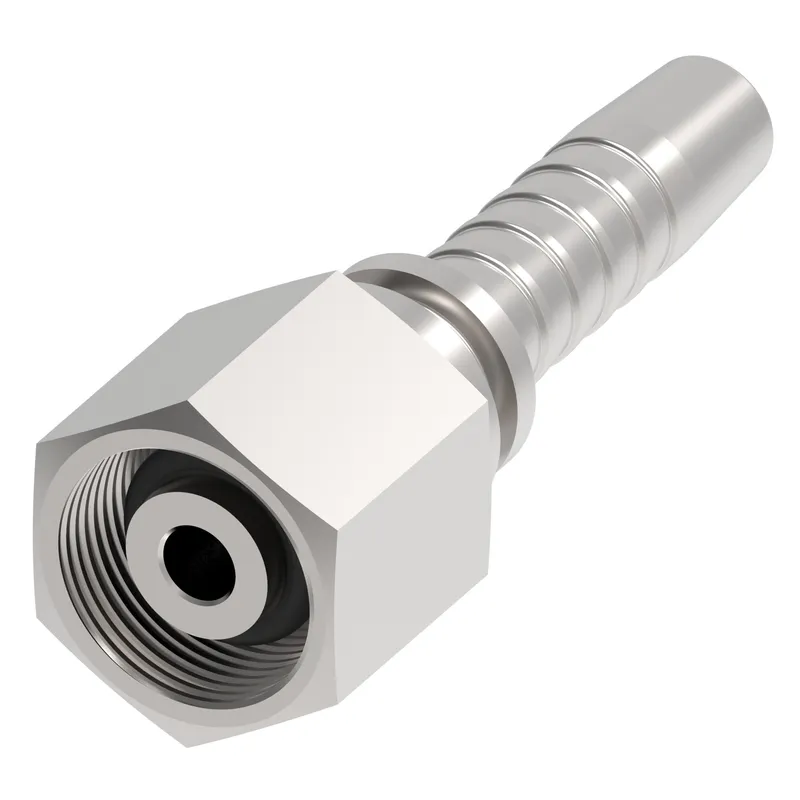

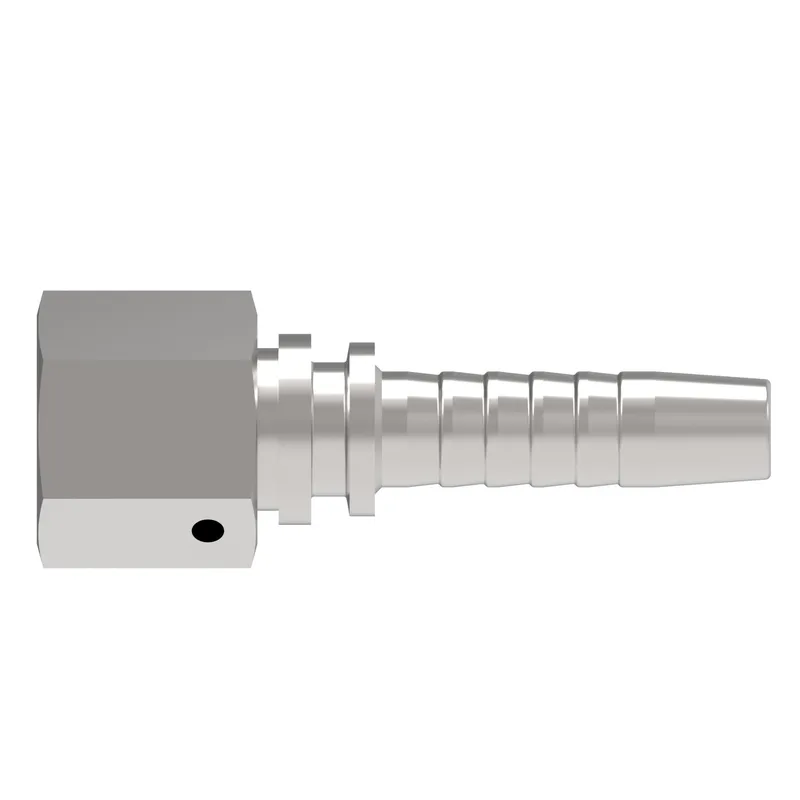

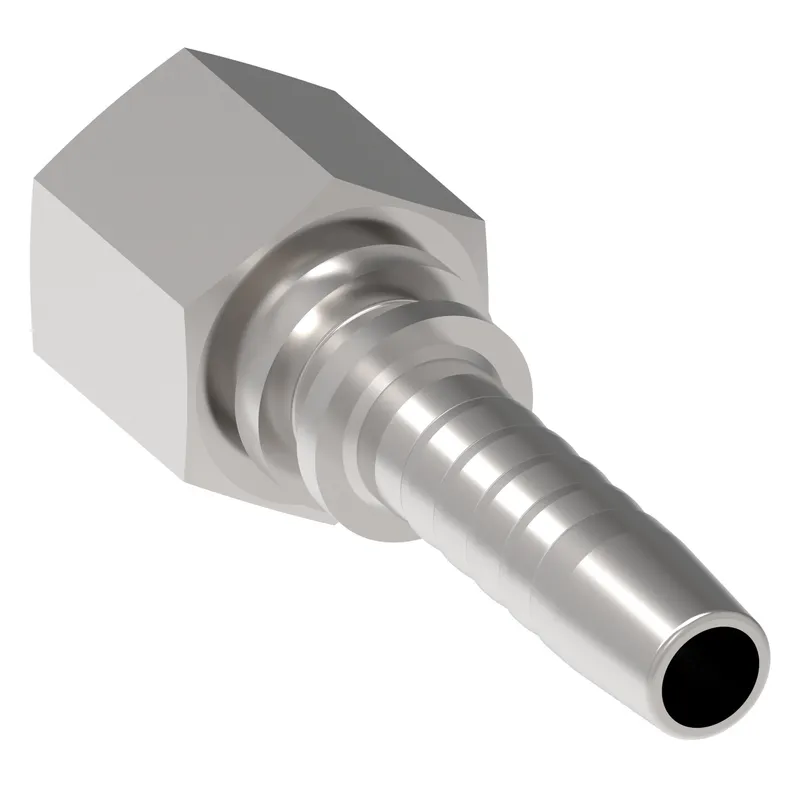

HOSE NIPPLE ASSY,2P/32,DKOL/52,CS,STR

MPN: 20411-52-32WZ
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 20411-52-32WZ?

Danfoss HOSE NIPPLE ASSY,2P/32,DKOL/52,CS,STR, manufacturer part number 20411-52-32WZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	4.370
A dimension MM	111.000
Angle shape	Straight
Brand	Winner by Danfoss
Compatible hose ID IN	2.000
Compatible hose ID MM	50.800
Construction Style	Crimp
End size 2	-6
End Type 1	24 deg. DKO swivel light duty
End Type 2	Line/hose/tube
Finish plating	Zinc plating
Hex size 1 IN	2.360
Hex size 1 MM	59.944
Hose cut off factor IN	1.530
Hose cut off factor MM	39.000
Hose size	-32
Inside diameter IN	1.370
Inside diameter MM	35.000
Product height in	2.720
Product height mm	69.088
Product length in	4.520
Product length mm	114.808
Product material	Carbon steel
Product width in	2.360
Product width mm	59.944
Seal material	Nitrile (NBR)
Series	Winner 2-Piece
Thread sealant	No
Thread size 1	M52x2
Tube OD 1 MM	42.000
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
