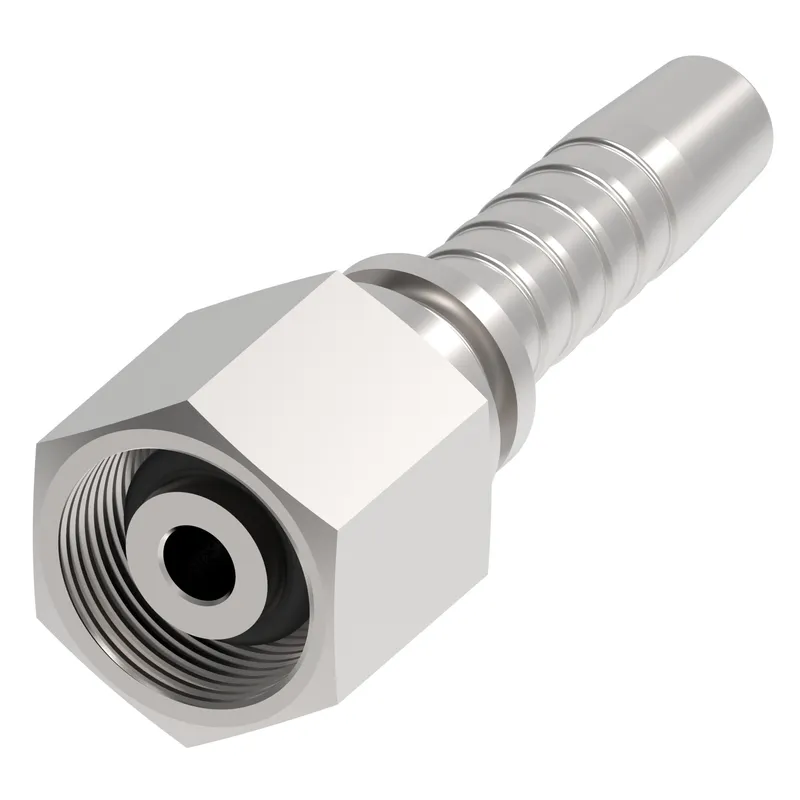

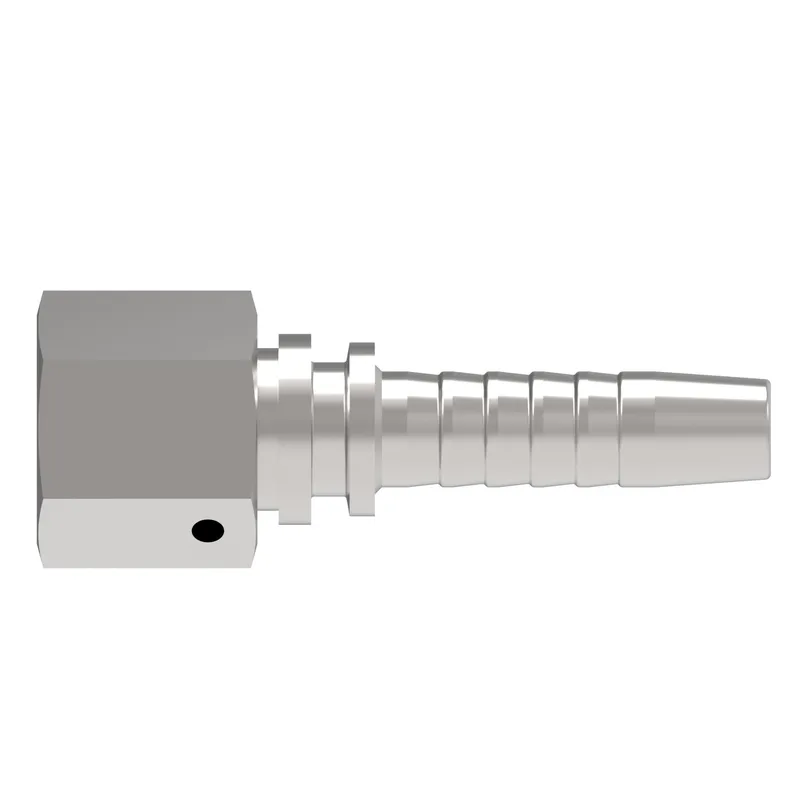

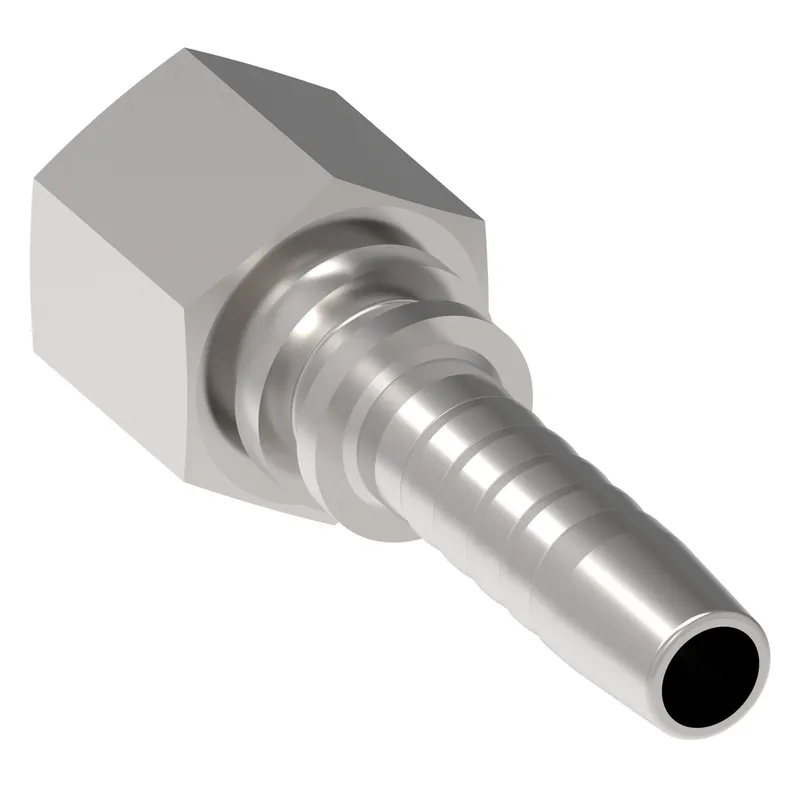

Danfoss 20411-26-12SVW

HOSE NIPPLE ASSY,2P/12,DKOL/26,AP,STR

MPN: 20411-26-12SVW
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 20411-26-12SVW?

Danfoss HOSE NIPPLE ASSY,2P/12,DKOL/26,AP,STR, manufacturer part number 20411-26-12SVW. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.890
A dimension MM	73.500
Angle shape	Straight
Brand	Winner by Danfoss
Compatible hose ID IN	0.750
Compatible hose ID MM	19.000
Construction Style	Crimp
End connection torque	57-62 lb-ft(77-85 Nm)
End size 2	-12
End Type 1	24 deg. DKO swivel light duty
End Type 2	Line/hose/tube
Hex size 1 IN	1.260
Hex size 1 MM	32.004
Hose cut off factor IN	1.370
Hose cut off factor MM	35.000
Hose size	-12
Inside diameter IN	0.590
Inside diameter MM	15.000
Product height in	1.450
Product height mm	36.830
Product length in	2.720
Product length mm	69.088
Product material	316L Stainless steel
Product width in	1.260
Product width mm	32.004
Seal material	Nitrile (NBR)
Series	Winner 2-Piece
Thread sealant	No
Thread size 1	M26x1.5
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
