Danfoss 20411-16-05WZ

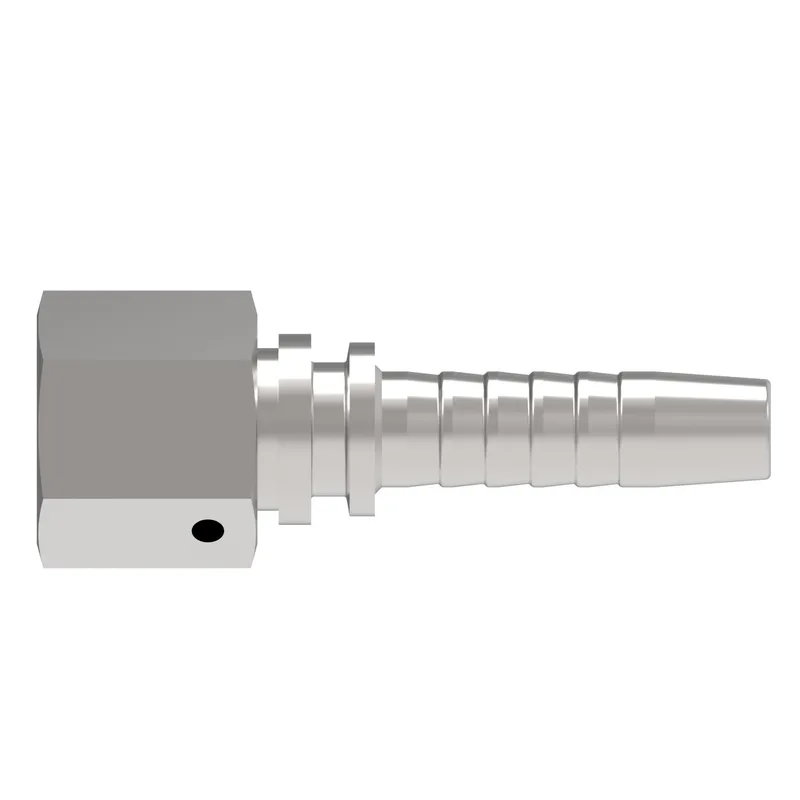

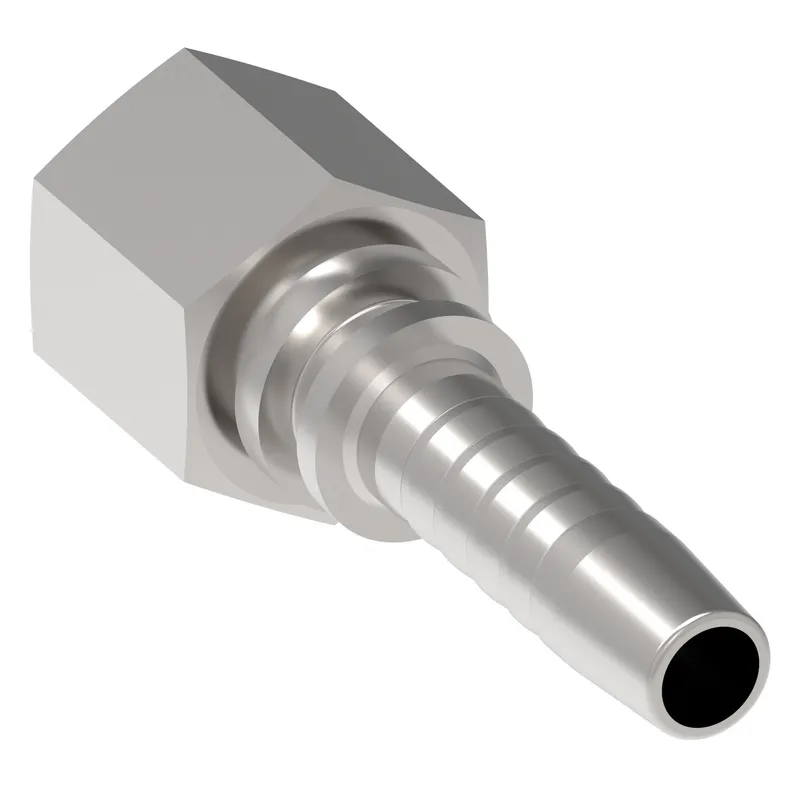

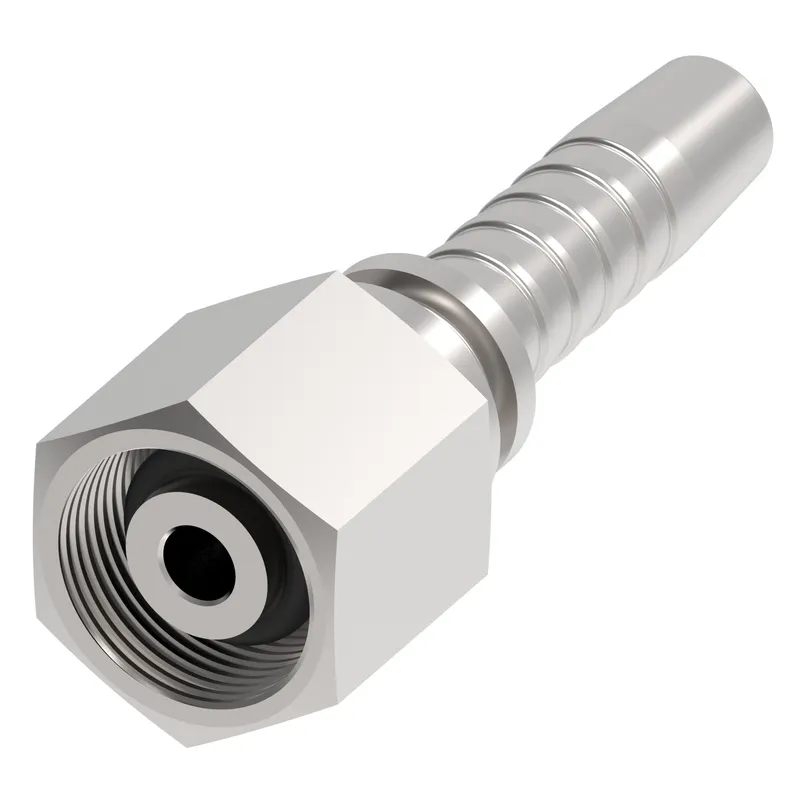

HOSE NIPPLE ASSY,2P/05,DKOL/16,CS,STR

MPN: 20411-16-05WZ
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 20411-16-05WZ?

Danfoss HOSE NIPPLE ASSY,2P/05,DKOL/16,CS,STR, manufacturer part number 20411-16-05WZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	1.960
A dimension MM	50.000
Angle shape	Straight
Brand	Winner by Danfoss
Compatible hose ID IN	0.310
Compatible hose ID MM	7.900
Construction Style	Crimp
End connection torque	33-40 lb-ft(45-55 Nm)
End Type 1	24 deg. DKO swivel light duty
Finish plating	Zinc plating
Hose cut off factor IN	0.860
Hose cut off factor MM	22.000
Hose size	-5
Inside diameter IN	0.216
Inside diameter MM	5.500
Product height in	0.870
Product height mm	22.098
Product length in	2.040
Product length mm	51.816
Product material	Carbon steel
Product width in	0.750
Product width mm	19.05
Proposition 65	Cancer and Reproductive Harm
Seal material	Nitrile (NBR)
Series	Winner 2-Piece
Thread size 1	M16x1.5
Tube OD 1 IN	0.390
Tube OD 1 MM	10.000
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
