Danfoss 20401-26-10L35TZ

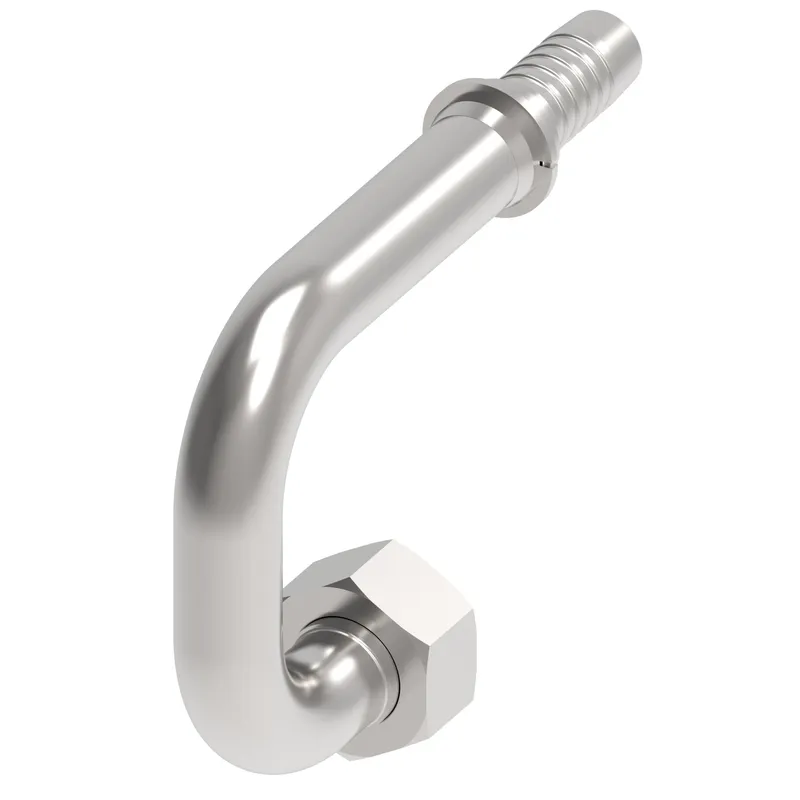

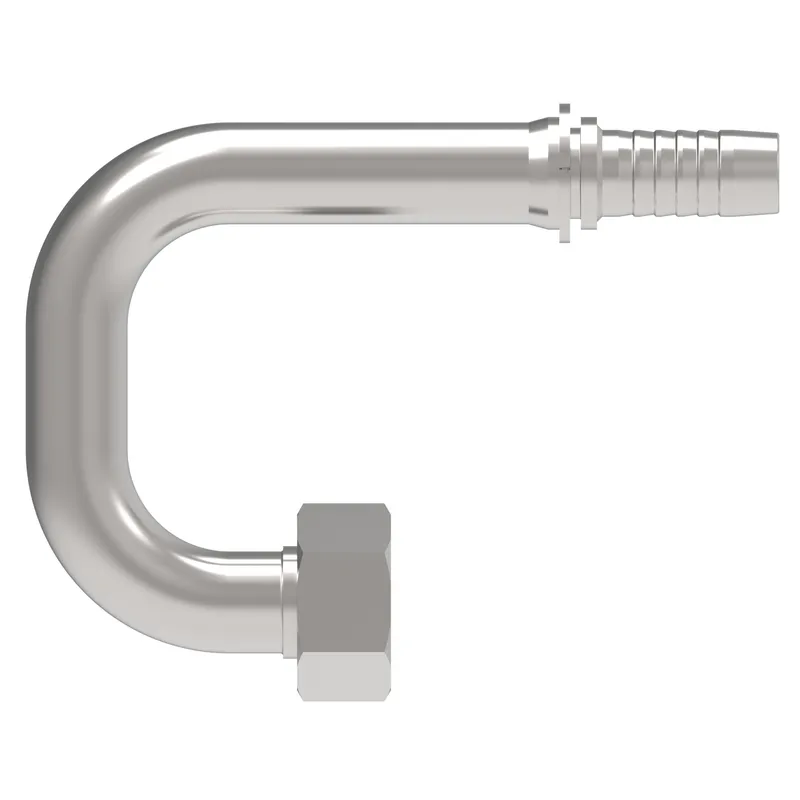

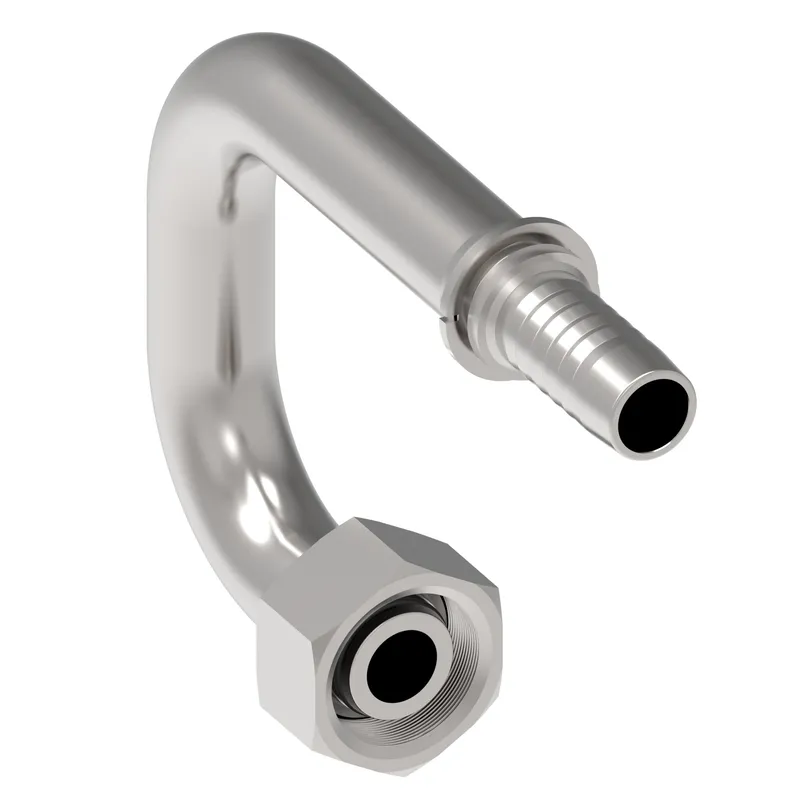

HOSE NIPPLE ASSY,2P/10,DKOL/26,CS,180D

MPN: 20401-26-10L35TZ
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 20401-26-10L35TZ?

Danfoss HOSE NIPPLE ASSY,2P/10,DKOL/26,CS,180D, manufacturer part number 20401-26-10L35TZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.933
A dimension MM	74.500
Angle shape	180 Degree
Brand	Winner by Danfoss
Compatible hose ID IN	0.620
Compatible hose ID MM	15.900
Construction Style	Crimp
Drop dimension IN	3.149
Drop dimension MM	80.00
End size 2	-6
End Type 1	24 deg. DKO swivel light duty
End Type 2	Line/hose/tube
Finish plating	Zinc plating
Hex size 2 IN	1.260
Hex size 2 MM	32.004
Hose cut off factor IN	1.377
Hose cut off factor MM	35.000
Hose size	-10
Inside diameter IN	0.472
Inside diameter MM	12.000
Product height in	4.500
Product height mm	114.300
Product length in	4.420
Product length mm	112.268
Product material	Carbon steel
Product width in	1.260
Product width mm	32.004
Thread sealant	No
