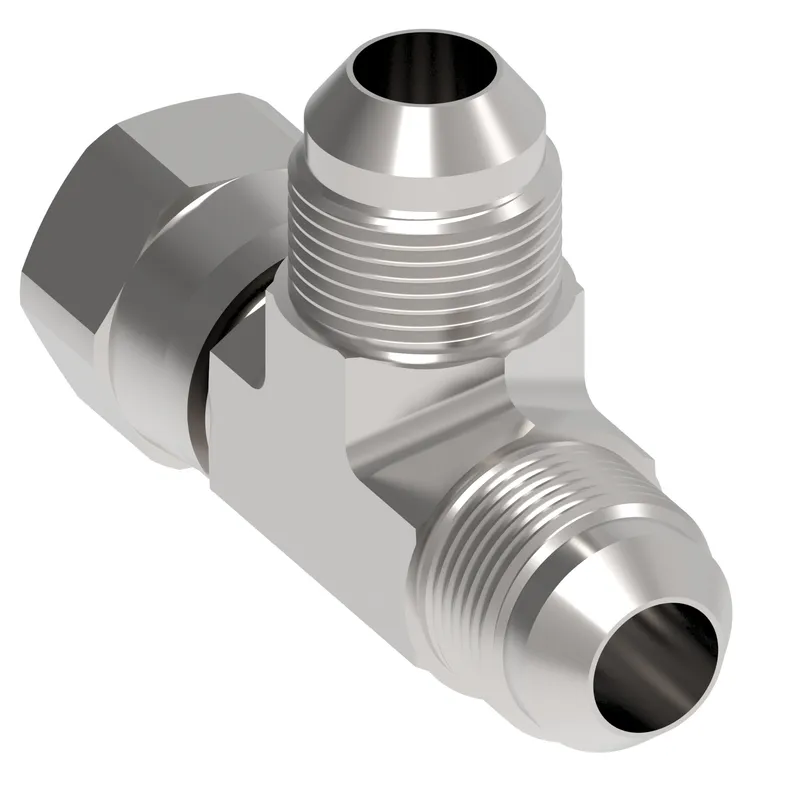

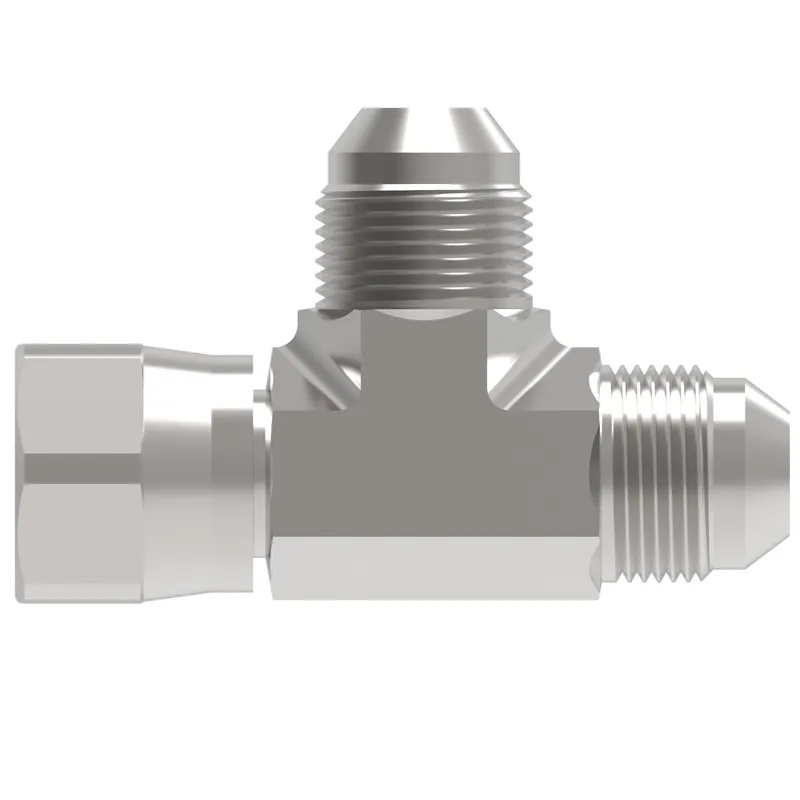

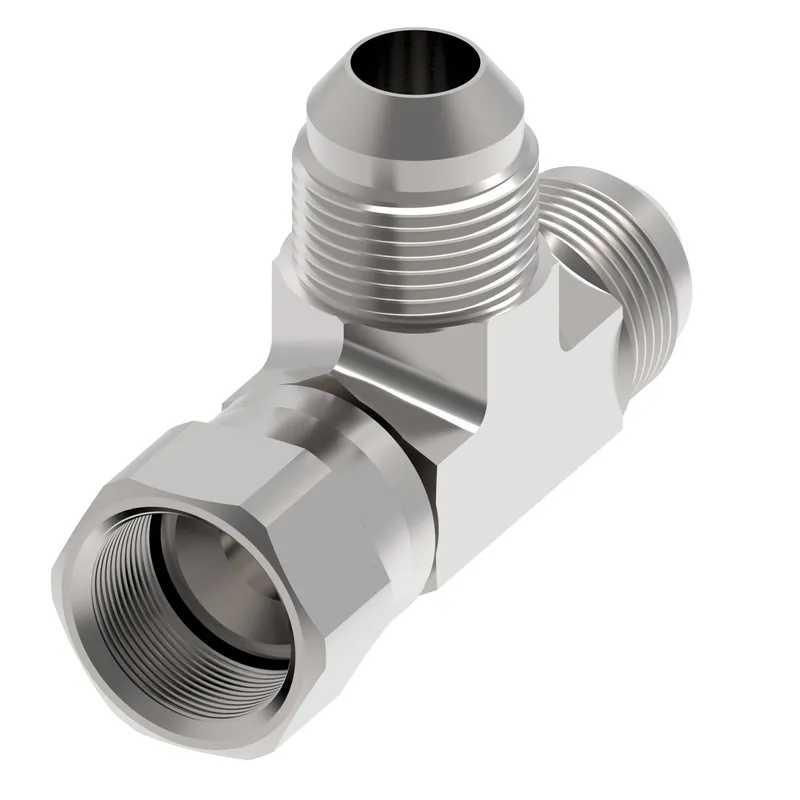

Danfoss 203102-8-8S-BG

Adaptr WHD C5706X8

MPN: 203102-8-8S-BG
Category: Adapters and swivel joints

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 203102-8-8S-BG?

Danfoss Adaptr WHD C5706X8, manufacturer part number 203102-8-8S-BG. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Brand	Danfoss
Drop dimension IN	1.250
Drop dimension MM	31.80
End Type 1	Female 37 degree swivel
End Type 2	Male 37 degree
End type 3	Male 37 degree
Finish plating	Dura-Kote
Hex size 1 IN	0.740
Hex size 1 MM	18.800
Hex size 2 IN	0.875
Hex size 2 MM	22.200
Item type	Adapter-tee
Product material	Carbon steel
Thread sealant	No
Thread size 1	3/4-16 UNF
Thread size 2	3/4-16 UNF
Thread size 3	3/4-16 UNF
Tube outside diameter 1 IN	0.390
Tube outside diameter 1 MM	9.9
Tube outside diameter 2 IN	0.390
Tube outside diameter 2 MM	9.9
Tube outside diameter 3 IN	0.390
Tube outside diameter 3 MM	9.9
Working temp max C	204
Working temp max F	400
Working temp min C	-54
Working temp min F	-65

203102-8-8S-BG: frequently asked questions

When can 203102-8-8S-BG be shipped?

203102-8-8S-BG is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 203102-8-8S-BG in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 203102-8-8S-BG and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 203102-8-8S-BG, subject to availability and destination.
