Danfoss 203101-6-5S

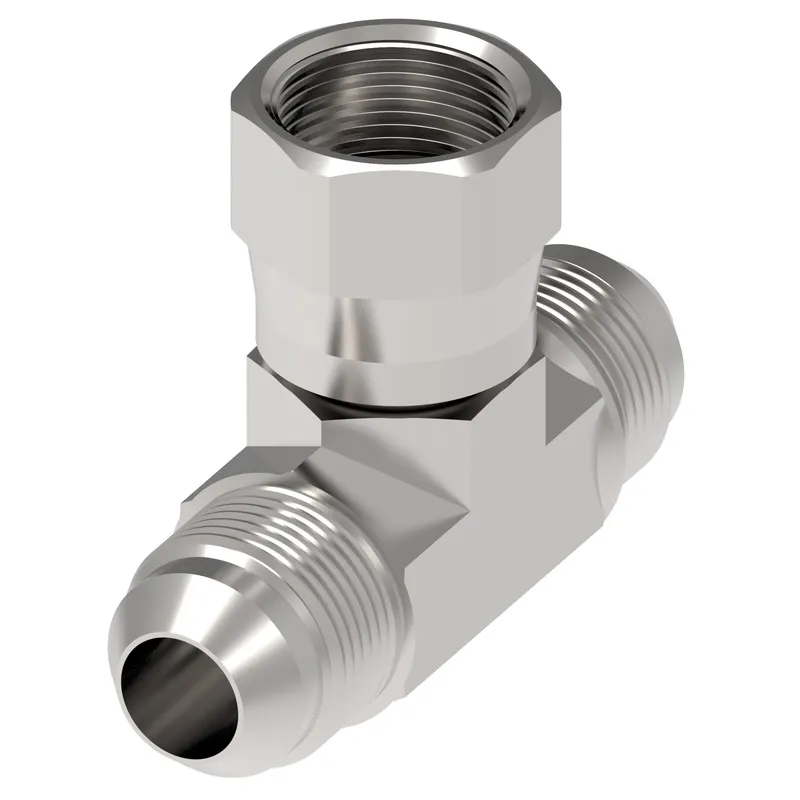

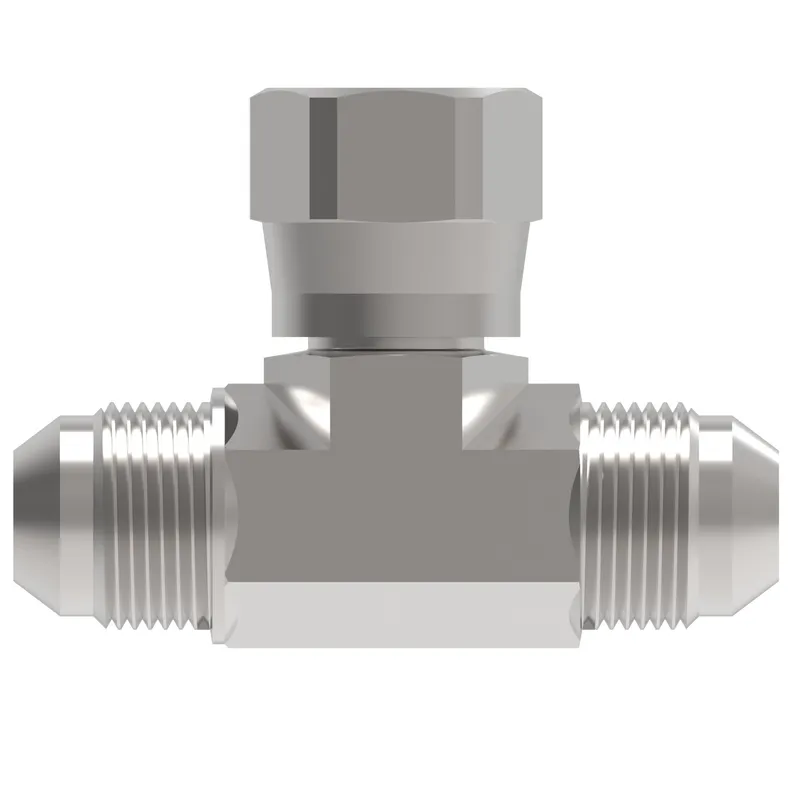

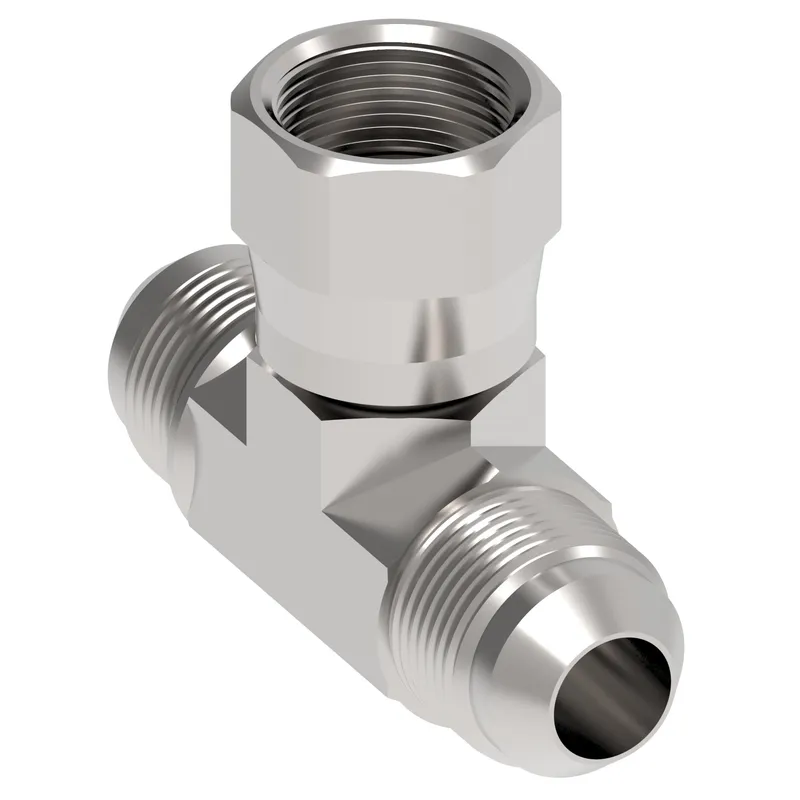

Adapter, SAE 37 tee

MPN: 203101-6-5S
Category: Adapters and swivel joints

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 203101-6-5S?

Danfoss Adapter, SAE 37 tee, manufacturer part number 203101-6-5S. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Brand	Danfoss
End Type 1	Male 37 degree
End Type 2	Male 37 degree
End type 3	Female 37 degree swivel
Finish plating	Dura-Kote
Hex size 1 IN	0.551
Hex size 1 MM	14.000
Hex size 2 IN	0.688
Hex size 2 MM	17.500
Item type	Adapter-tee
Product material	Carbon steel
Thread sealant	No
Thread size 1	9/16-18 UNF
Thread size 2	9/16-18 UNF
Thread size 3	9/16-18 UNF
Tube outside diameter 1 IN	0.230
Tube outside diameter 1 MM	5.8
Tube outside diameter 2 IN	0.230
Tube outside diameter 2 MM	5.8
Tube outside diameter 3 IN	0.300
Tube outside diameter 3 MM	7.6
Working temp max C	204
Working temp max F	400
Working temp min C	-54
Working temp min F	-65
