Danfoss 202713-6-8S

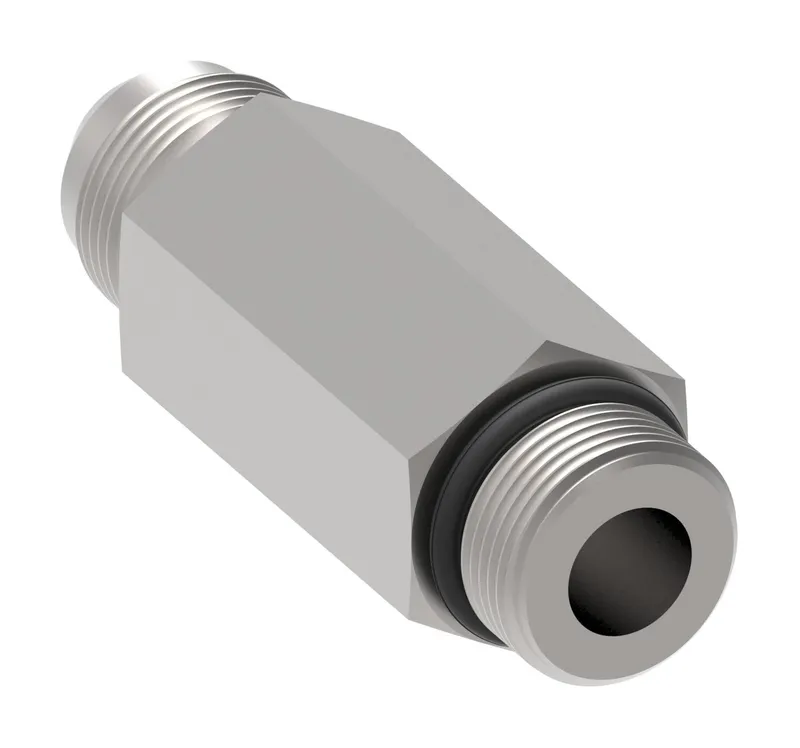

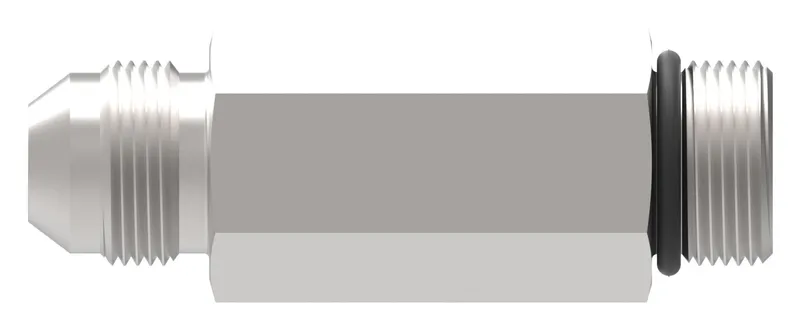

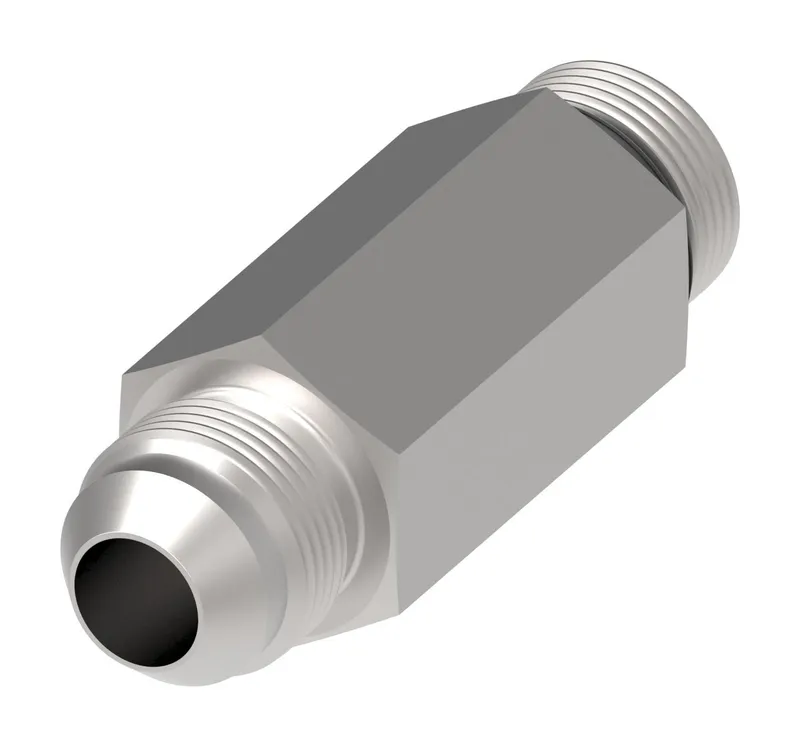

Adapter SAE37 Str 08 Tube x 06M ORB

MPN: 202713-6-8S
Category: Adapters and swivel joints

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 202713-6-8S?

Danfoss Adapter SAE37 Str 08 Tube x 06M ORB, manufacturer part number 202713-6-8S. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146185747
Brand	Danfoss
End Type 1	Male ORB ISO 11926-3
End Type 2	Male 37 degree
Finish plating	Dura-Kote
Hex size 1 IN	0.813
Hex size 1 MM	20.700
Item type	Adapter-straight
Product material	Carbon steel
Thread sealant	No
Thread size 1	9/16-18 UNF
Thread size 2	3/4-16 UNF
Tube outside diameter 1 IN	0.375
Tube outside diameter 1 MM	9.5
Tube outside diameter 2 IN	0.500
Tube outside diameter 2 MM	12.7
Working pressure bar	276.0
Working pressure psi	4000
Working temp max C	121
Working temp max F	250
Working temp min C	-40
Working temp min F	-40
