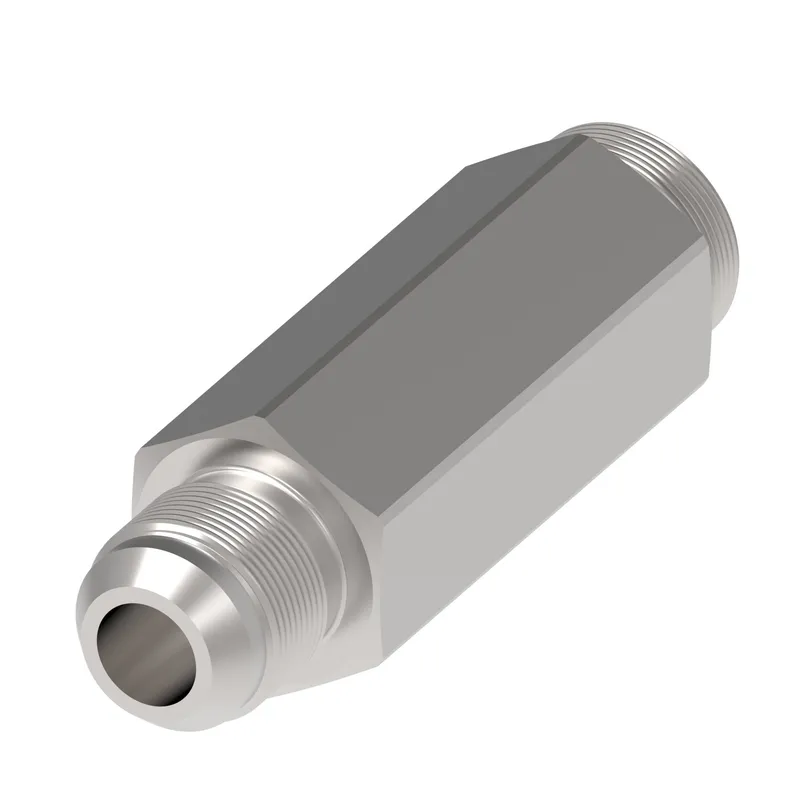

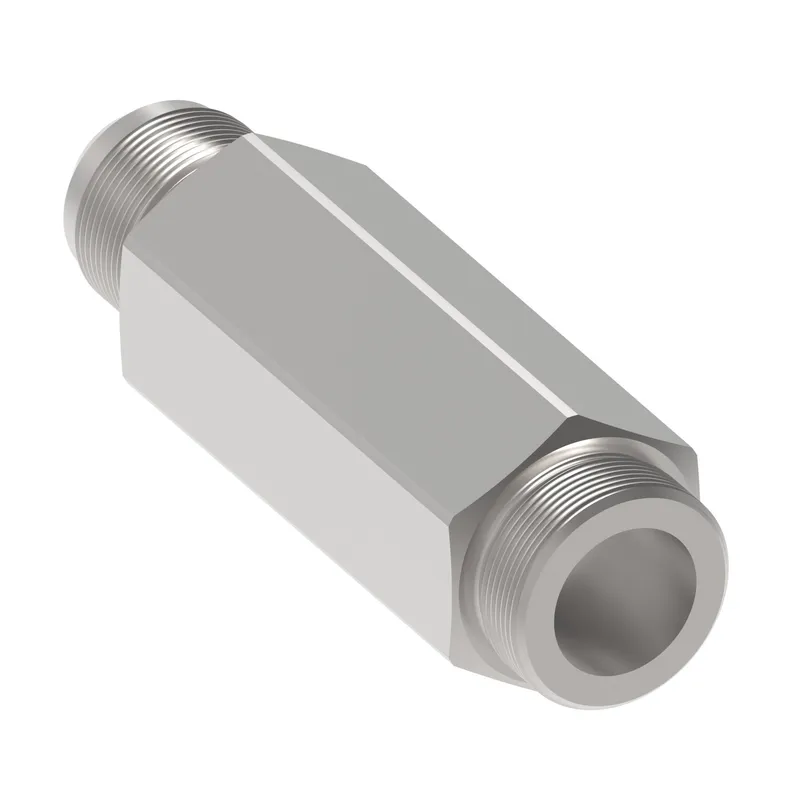

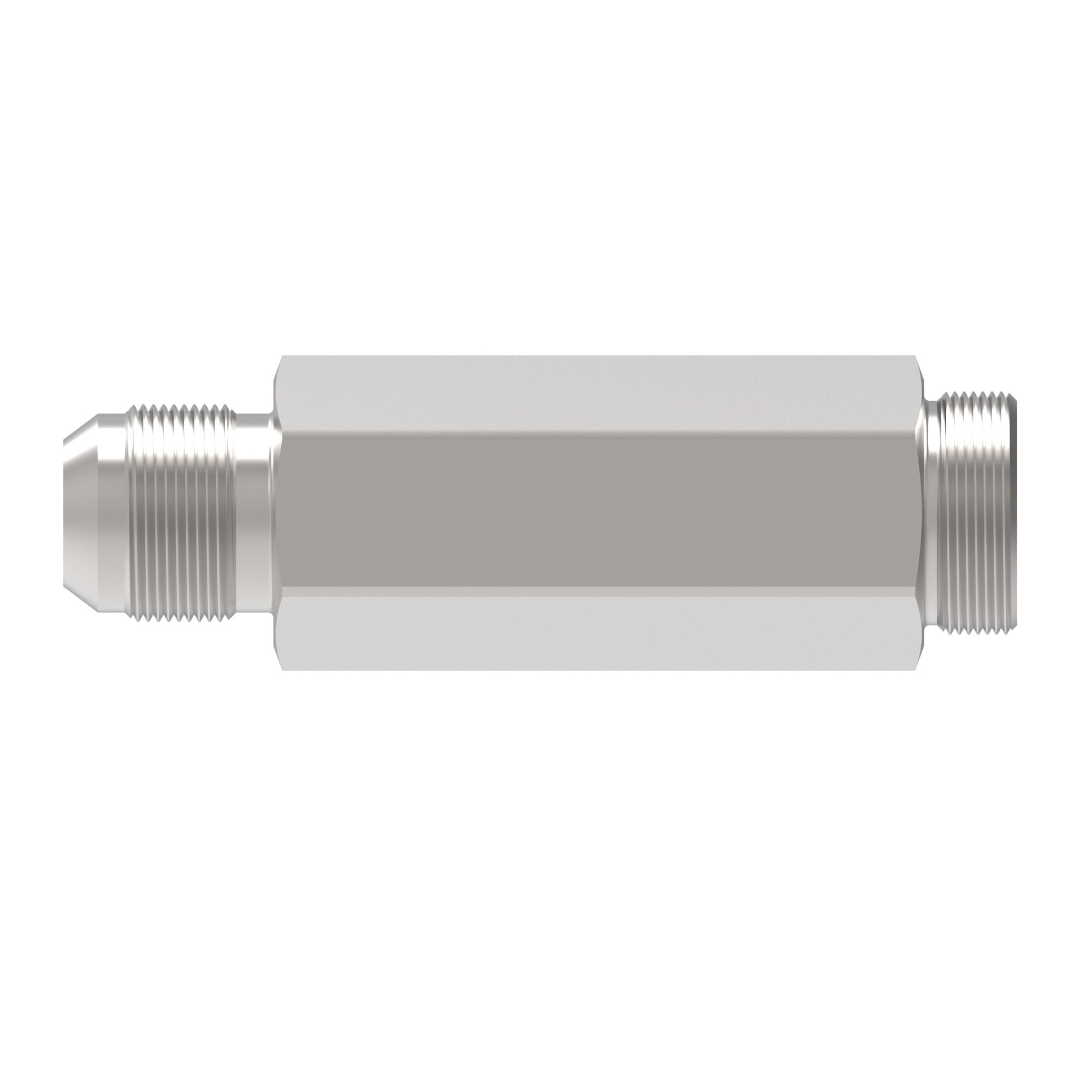

Adapter SAE37 str M SAE37 x M ORB

Name: Danfoss 202703-6-8S – Adapter SAE37 str M SAE37 x M ORB
Brand: Danfoss (Drives)
SKU: 202703-6-8S

MPN: 202703-6-8S · Brand: Danfoss (Drives)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Adapters and swivel joints
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 202703-6-8S be shipped?

202703-6-8S is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 202703-6-8S in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 202703-6-8S and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 202703-6-8S, subject to availability and destination.

Danfoss Adapter SAE37 str M SAE37 x M ORB, manufacturer part number 202703-6-8S. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146171894
Brand	Aeroquip by Danfoss
End Type 1	Male 37 degree
End Type 2	Male 37 degree
Finish plating	Dura-Kote
Hex size 1 IN	0.812
Hex size 1 MM	20.600
Product material	Carbon steel
Thread sealant	No
Thread size 1	9/16-18 UNF
Thread size 2	3/4-16 UNF
Tube outside diameter 1 IN	0.297
Tube outside diameter 1 MM	7.5
Tube outside diameter 2 IN	0.381
Tube outside diameter 2 MM	9.7
Working temp max C	121
Working temp max F	250
Working temp min C	-40
Working temp min F	-40
