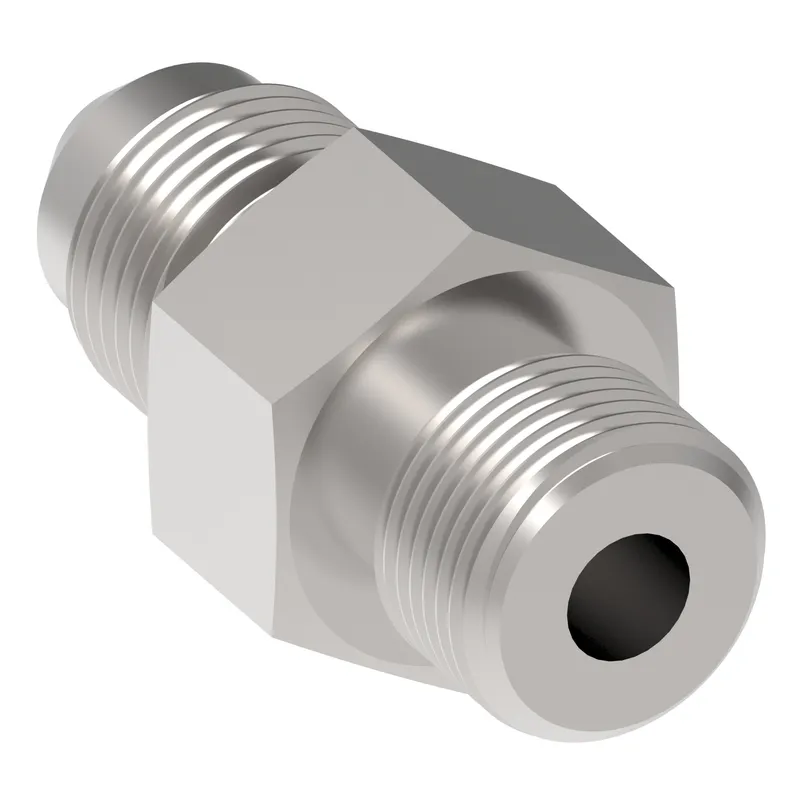

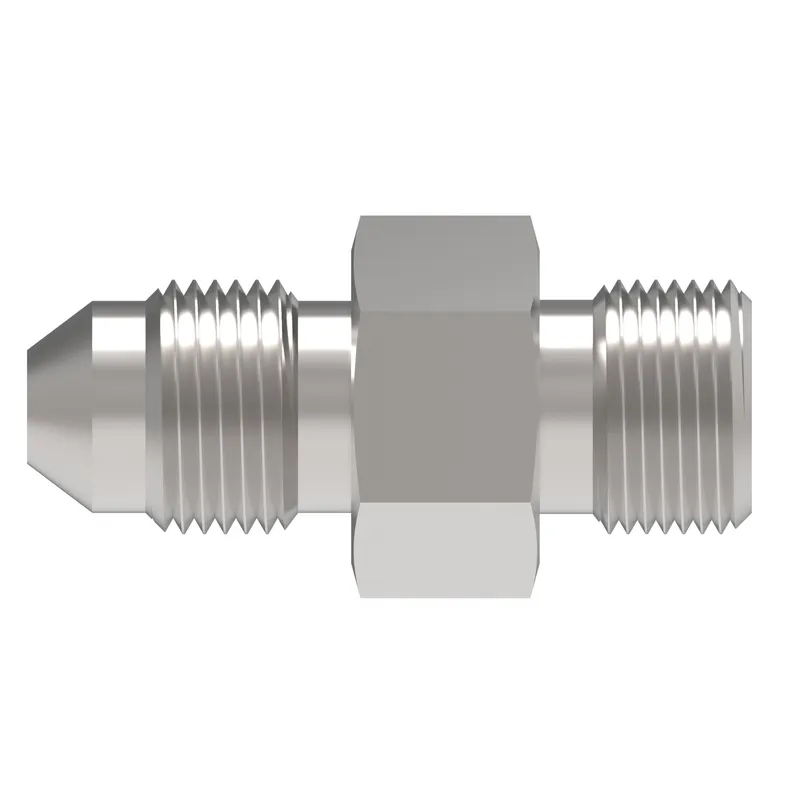

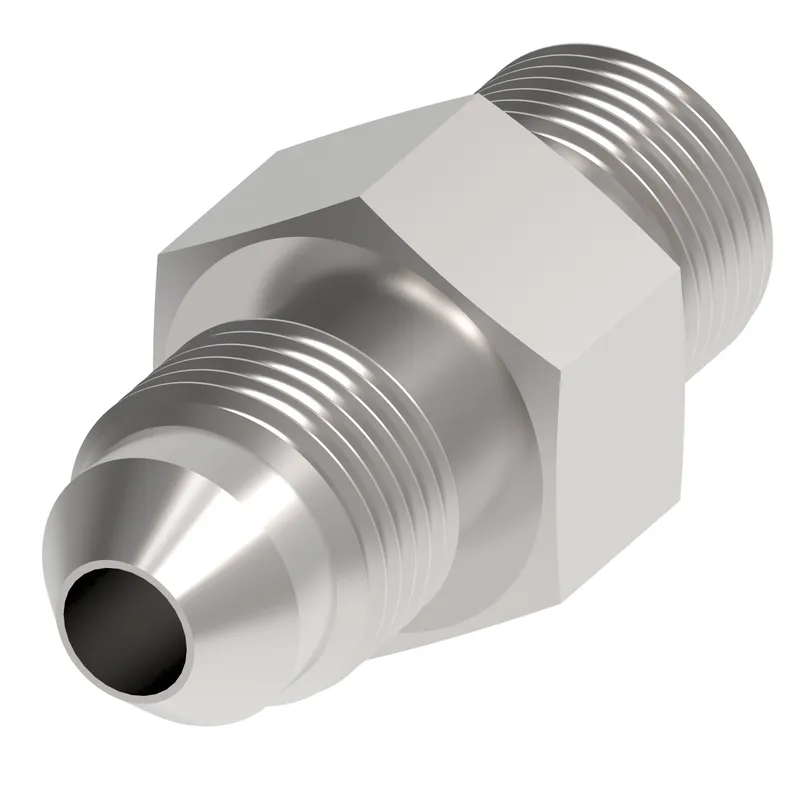

Danfoss 202701-20-16S

Adapter-STR,202701,-20-16,CS,ZD

MPN: 202701-20-16S
Category: Adapters and swivel joints

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 202701-20-16S?

Danfoss Adapter-STR,202701,-20-16,CS,ZD, manufacturer part number 202701-20-16S. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146171764
Complete connector	Yes
End size 1	-20
End size 2	-16
End Type 1	Male 37 degree
End Type 2	Male 37 degree
Finish plating	Dura-Kote
Hex size 1 IN	1.880
Hex size 1 MM	47.800
Hex size 5 MM	47.6
Item type	Adapter-straight
Product material	Carbon steel
Product serial name	202701
Thread sealant	No
Thread size 1	1 5/8-12 UN
Thread size 2	1 5/16-12 UN
Tube outside diameter 1 IN	1.080
Tube outside diameter 1 MM	27.4
Tube outside diameter 2 IN	0.840
Tube outside diameter 2 MM	21.3
Working pressure bar	172.0
Working pressure psi	2500
Working temp max C	121
Working temp max F	250
Working temp min C	-40
Working temp min F	-40
