Danfoss 20241Y-30-12Z

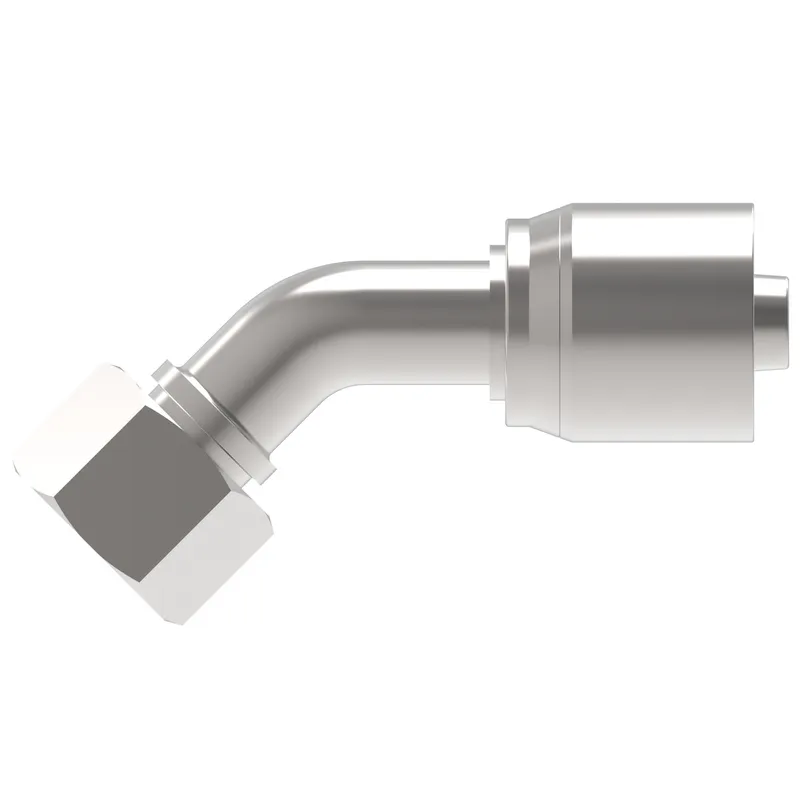

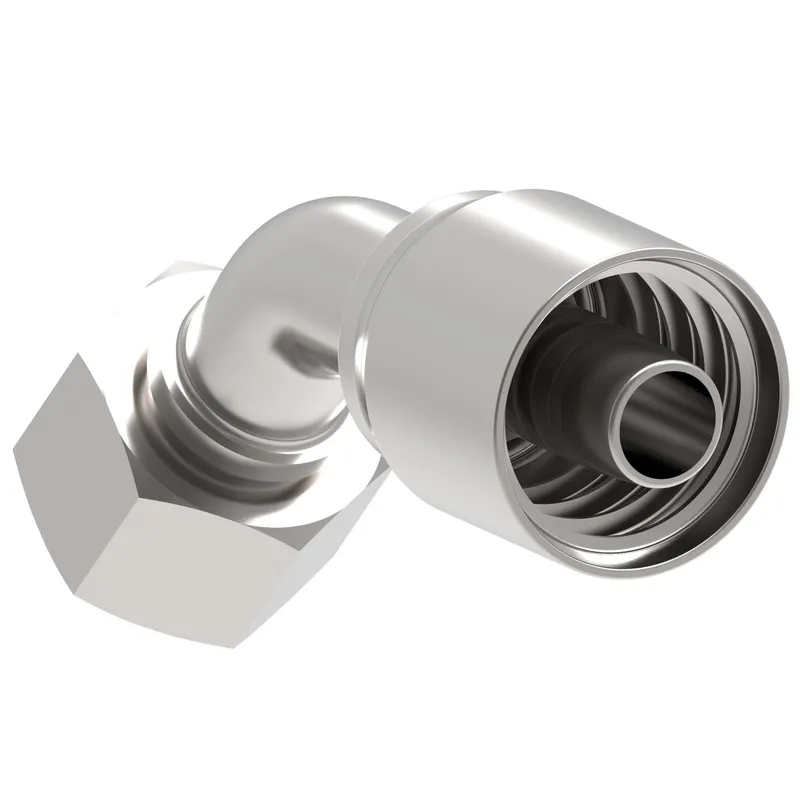

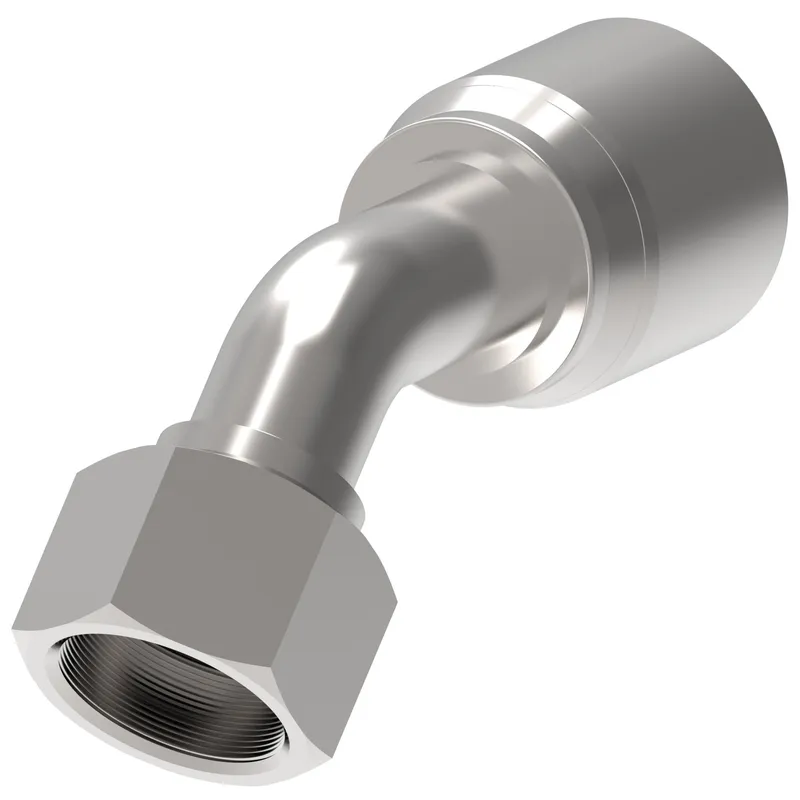

HOSE NIPPLE ASSY,1P/12,MORFS-F/30,CS,45D

MPN: 20241Y-30-12Z
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 20241Y-30-12Z?

Danfoss HOSE NIPPLE ASSY,1P/12,MORFS-F/30,CS,45D, manufacturer part number 20241Y-30-12Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	4.562
A dimension MM	115.900
Angle shape	45 Degree
Brand	Winner by Danfoss
Compatible hose ID IN	0.750
Compatible hose ID MM	19.000
Construction Style	Crimp
Drop dimension IN	1.181
Drop dimension MM	30.00
End size 2	-12
End Type 2	Line/hose/tube
Finish plating	Zinc plating
Hex size 1 IN	1.420
Hex size 1 MM	36.068
Hex size 2 IN	1.417
Hex size 2 MM	36.000
Hose cut off factor IN	3.047
Hose cut off factor MM	77.400
Hose size	-12
Inside diameter IN	0.590
Inside diameter MM	15.000
Product height in	2.550
Product height mm	64.770
Product length in	5.500
Product length mm	139.700
Product material	Carbon steel
Product width in	1.420
Product width mm	36.068
Thread sealant	No
Thread size 1	M30x1.5
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
