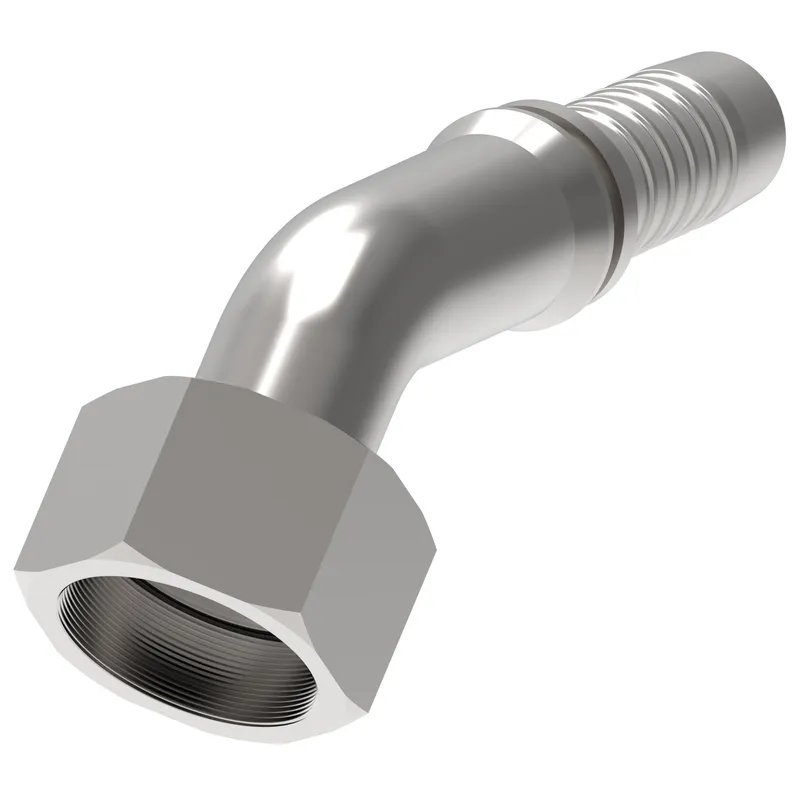

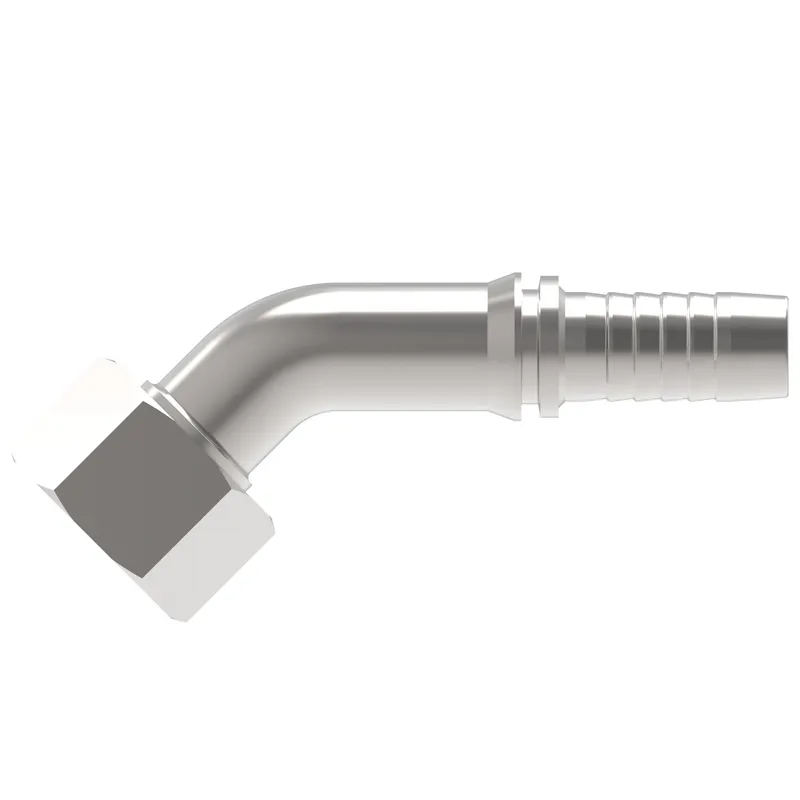

HOSE NIPPLE ASSY,2P/10,MORFS-F/27,CS,45D
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Braided hose and fittings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 20241-27-10TZ be shipped?
20241-27-10TZ is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 20241-27-10TZ in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 20241-27-10TZ and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 20241-27-10TZ, subject to availability and destination.
Danfoss HOSE NIPPLE ASSY,2P/10,MORFS-F/27,CS,45D, manufacturer part number 20241-27-10TZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| A dimension IN | 4.039 |
| A dimension MM | 102.600 |
| Angle shape | 45 Degree |
| Brand | Winner by Danfoss |
| Compatible hose ID IN | 0.620 |
| Compatible hose ID MM | 15.900 |
| Construction Style | Crimp |
| Drop dimension IN | 0.956 |
| Drop dimension MM | 24.30 |
| End size 2 | -6 |
| End Type 2 | Line/hose/tube |
| Finish plating | Zinc plating |
| Hex size 1 IN | 1.260 |
| Hex size 1 MM | 32.004 |
| Hex size 2 IN | 1.260 |
| Hex size 2 MM | 32.000 |
| Hose cut off factor IN | 2.700 |
| Hose cut off factor MM | 68.600 |
| Hose size | -10 |
| Inside diameter IN | 0.472 |
| Inside diameter MM | 12.000 |
| Product height in | 3.070 |
| Product height mm | 77.978 |
| Product length in | 4.530 |
| Product length mm | 115.062 |
| Product material | Carbon steel |
| Product width in | 1.259 |
| Product width mm | 31.979 |
| Series | Winner 2-Piece |
| Thread sealant | No |
| Thread size 1 | M27x1.5 |
| Working temperature max C | 100 |
| Working temperature max F | 212 |
| Working temperature min C | -40 |
| Working temperature min F | -40 |
More Danfoss (Drives) parts
Available on requestHOSE NIPPLE ASSY,2P/05,MORFS-F/16,CS,45D

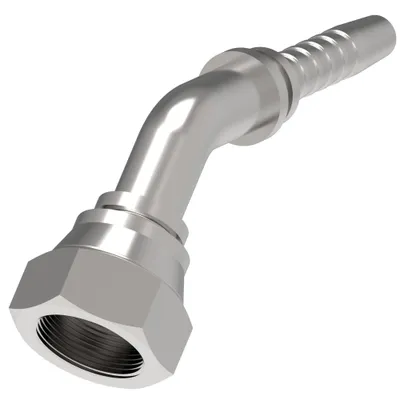

Available on requestHOSE NIPPLE ASSY,2P/05,MORFS-F/18,CS,45D
Available on requestHOSE NIPPLE ASSY,2P/06,MORFS-F/18,CS,45D
Available on requestHOSE NIPPLE ASSY,2P/08,MORFS-F/22,CS,45D
Available on requestHOSE NIPPLE ASSY,2P/16,MORFS-F/39,CS,45D
Available on requestHOSE NIPPLE ASSY,2P/20,MORFS-F/42,CS,45D
Available on requestHOSE NIPPLE ASSY,2P/24,MORFS-F/52,CS,45D

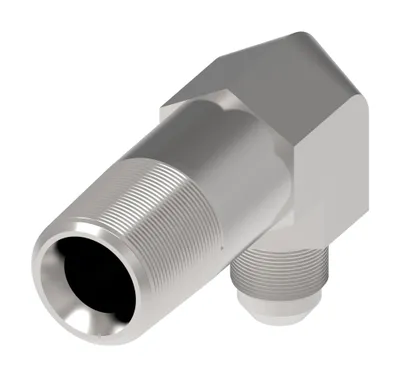

Available on requestAdapter, SAE 37
