Danfoss 20211-10-04Z

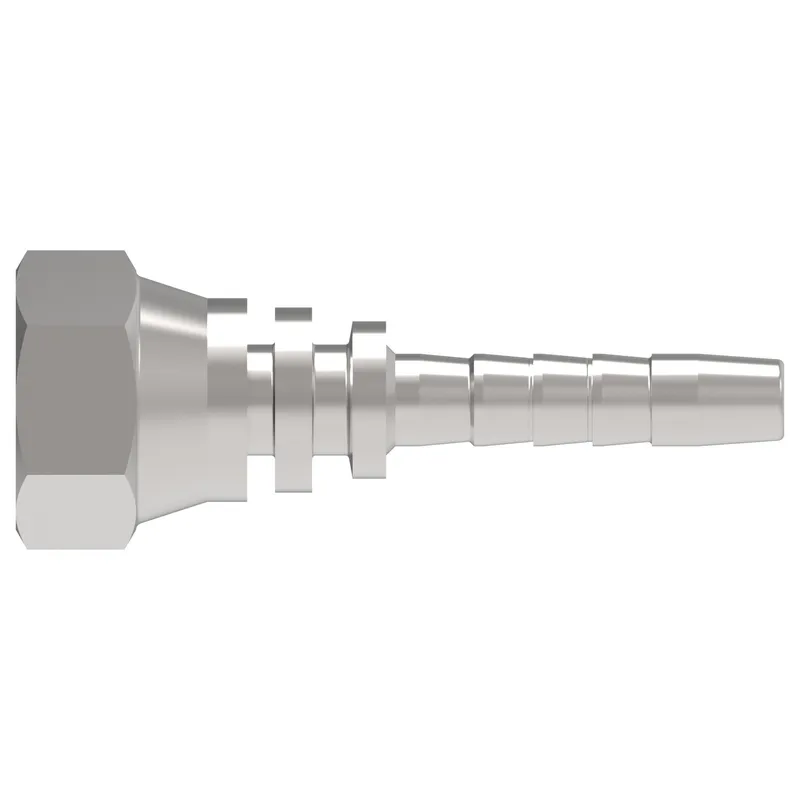

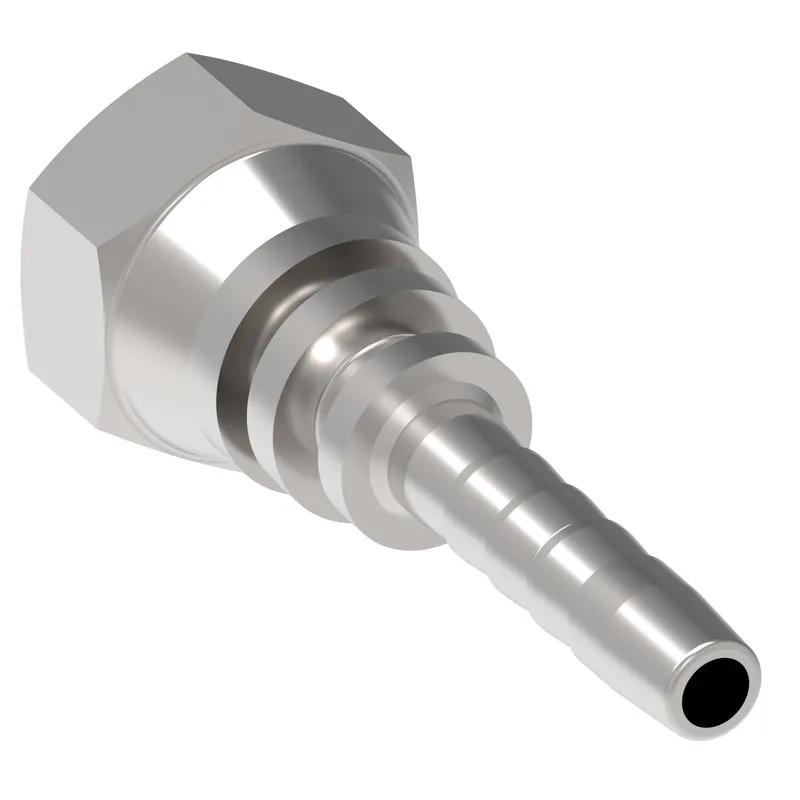

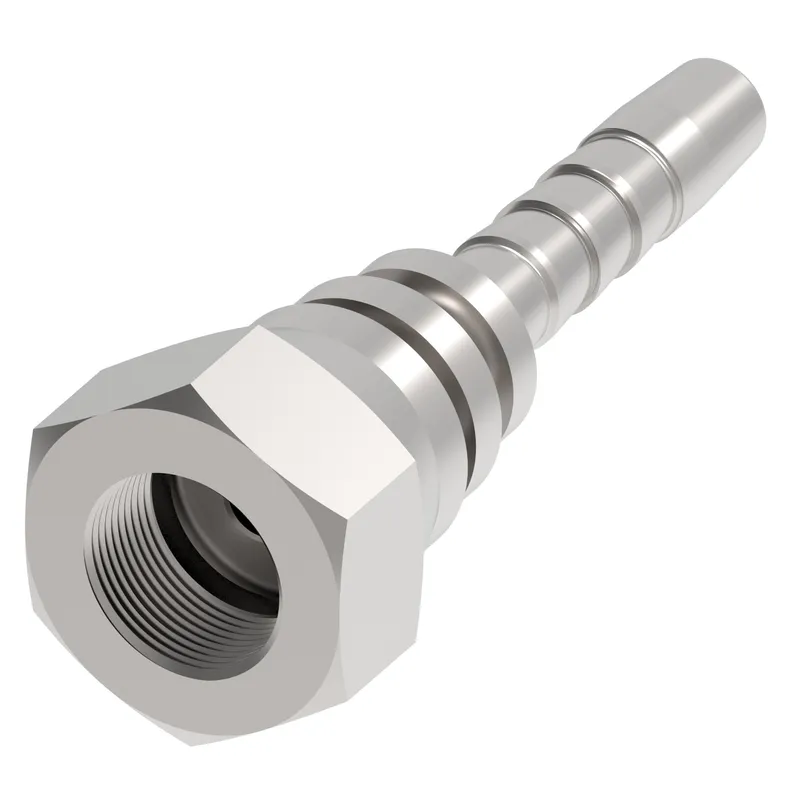

HOSE NIPPLE ASSY,2P/04,MORFS-F/10,CS,STR

MPN: 20211-10-04Z
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 20211-10-04Z?

Danfoss HOSE NIPPLE ASSY,2P/04,MORFS-F/10,CS,STR, manufacturer part number 20211-10-04Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	1.673
A dimension MM	42.500
Angle shape	Straight
Brand	Winner by Danfoss
Compatible hose ID IN	0.250
Compatible hose ID MM	6.400
Construction Style	Crimp
Finish plating	Zinc plating
Hex size 1 IN	0.550
Hex size 1 MM	13.970
Hose cut off factor IN	0.570
Hose cut off factor MM	14.500
Hose size	-4
Inside diameter IN	0.157
Inside diameter MM	4.000
Product height in	0.640
Product height mm	16.256
Product length in	1.670
Product length mm	42.418
Product material	Carbon steel
Product width in	0.550
Product width mm	13.97
Series	Winner 2-Piece
Thread sealant	No
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
