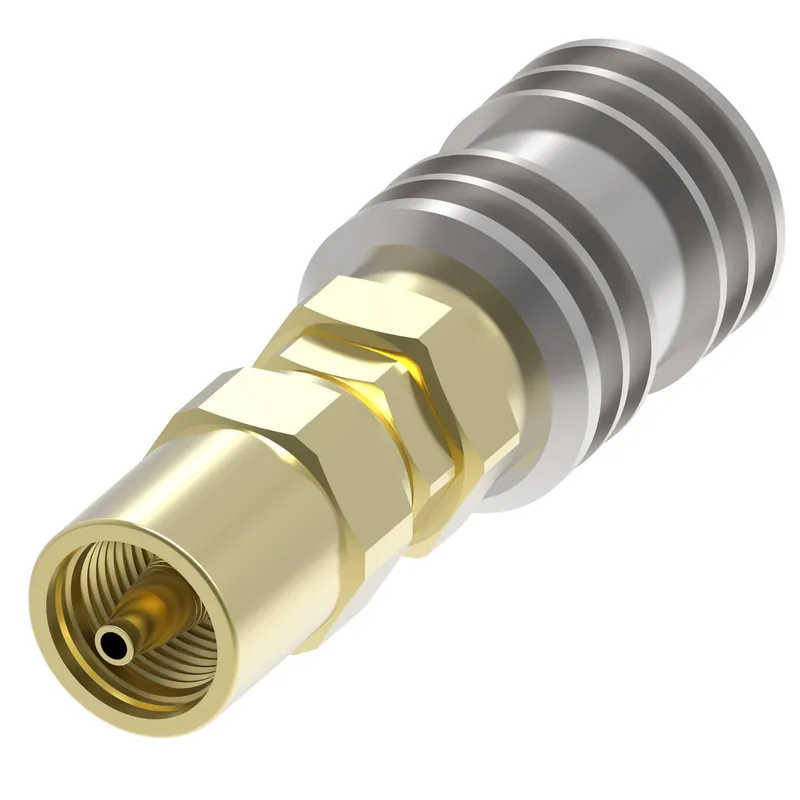

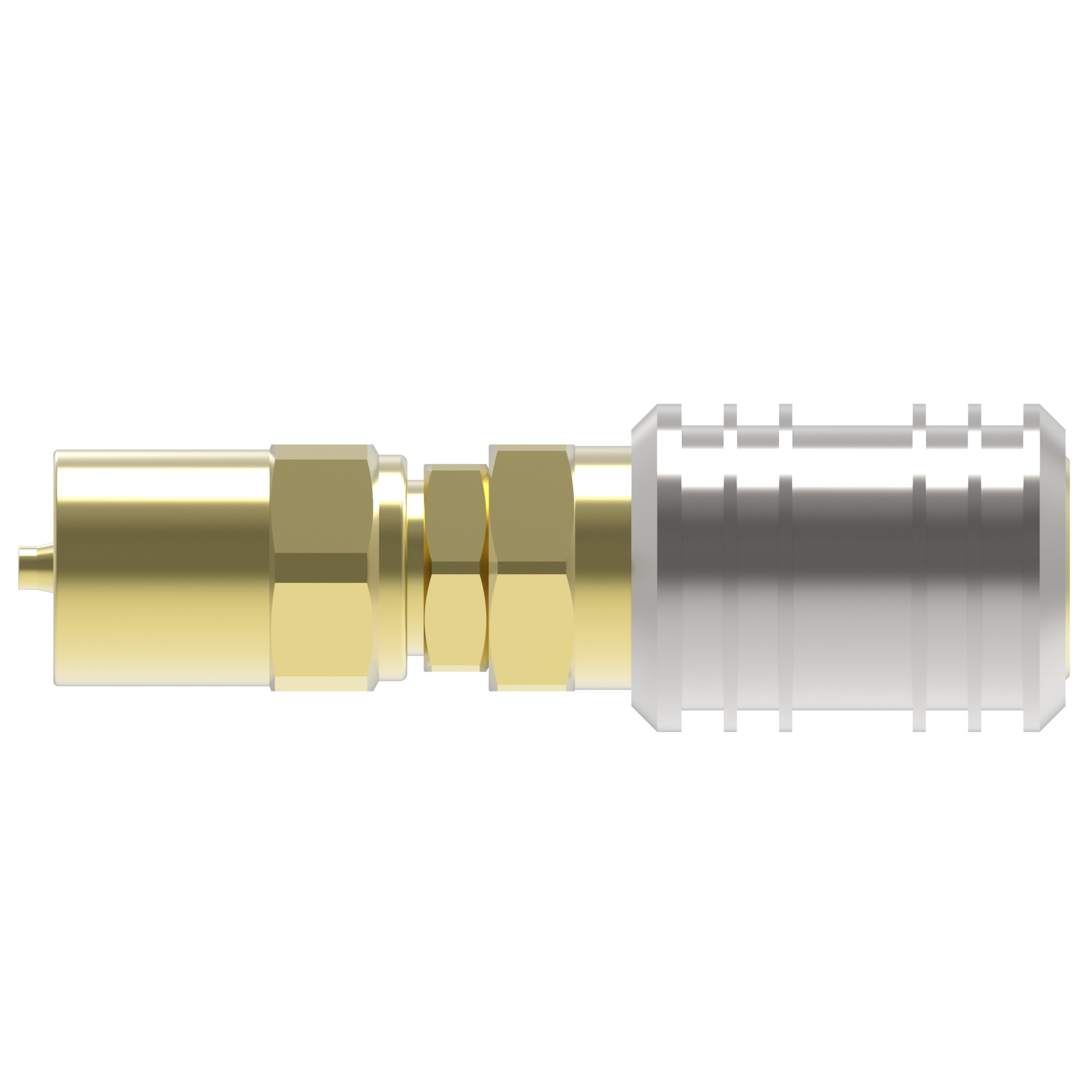

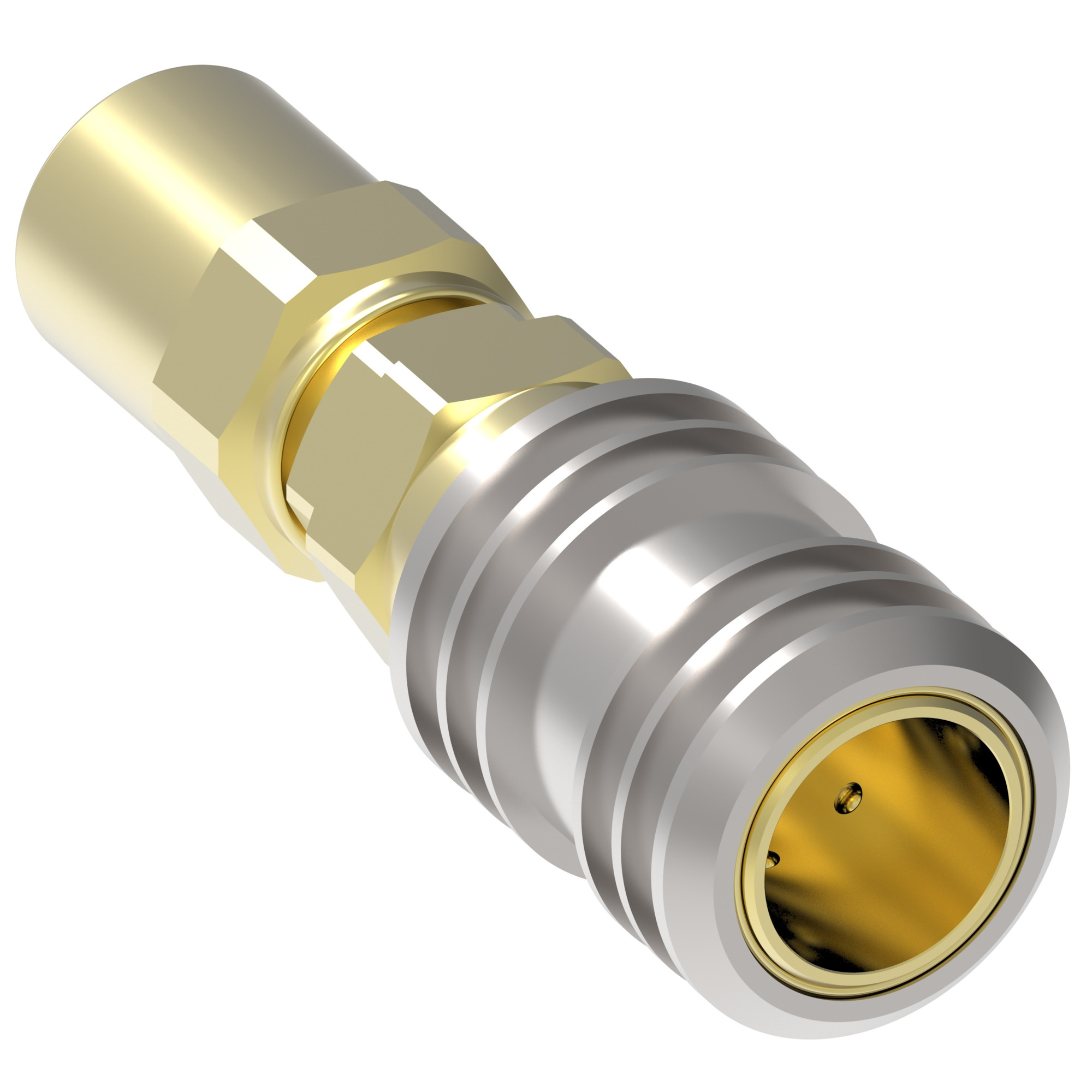

Danfoss 1SB1

Cplng, 1000 SERIES FEMALE, BRASS

MPN: 1SB1
Category: Danfoss Hansen® quick disconnect couplings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1SB1?

Danfoss Cplng, 1000 SERIES FEMALE, BRASS, manufacturer part number 1SB1. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146097736
Angle shape	Straight
Body size	1/4
Brand	Danfoss
Burst pressure min bar	552
Burst pressure min psi	8000
Connection style	Manual connect
End type 1	Female Push to Connect
End type 2	Line/hose/tube
Flow rate GPM	179.00
Flow rate LPM	677.59
Fluid compatibility	Compressed air, Gases and liquids
Hex size 1 IN	0.630
Hex size 1 MM	16.002
Item type	Female half
Latch type	Push/pull
Product length in	2.690
Product material	Brass
Safety locking mechanism	Sleeve lock
Seal material	Nitrile (NBR)
Sub brand	Hansen
Valve type	1 way
Working pressure max psi	2000
Working pressure max BAR	138
Working temperature max C	121
Working temperature max F	250
Working temperature min C	-40
Working temperature min F	-40
