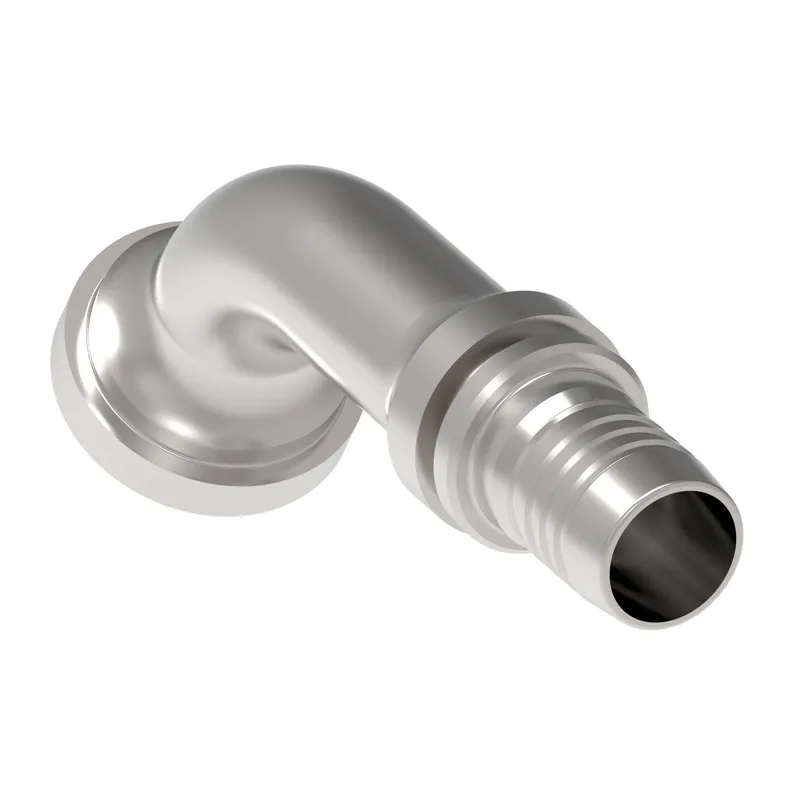

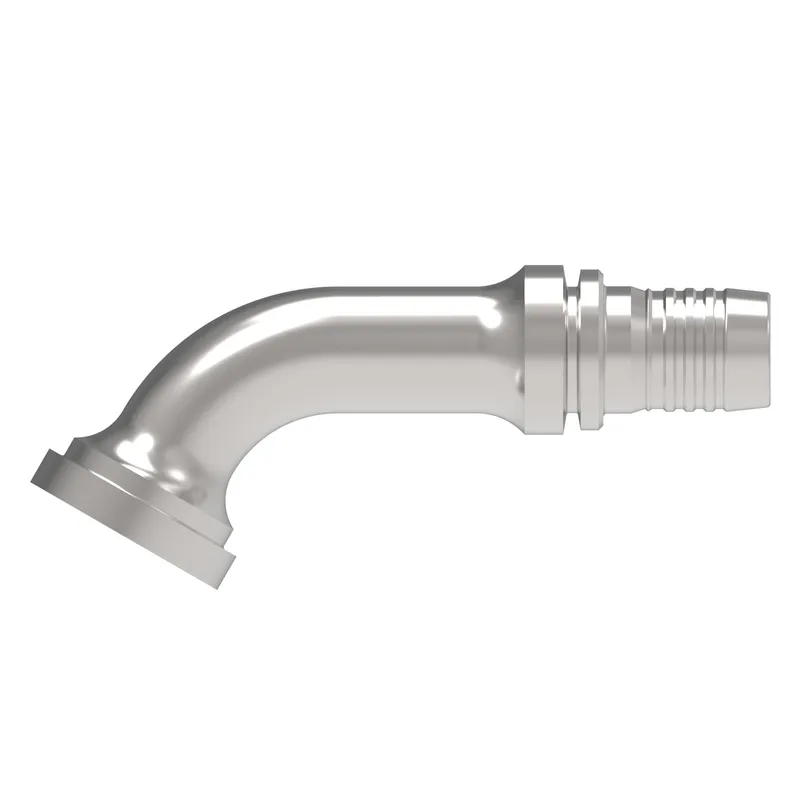

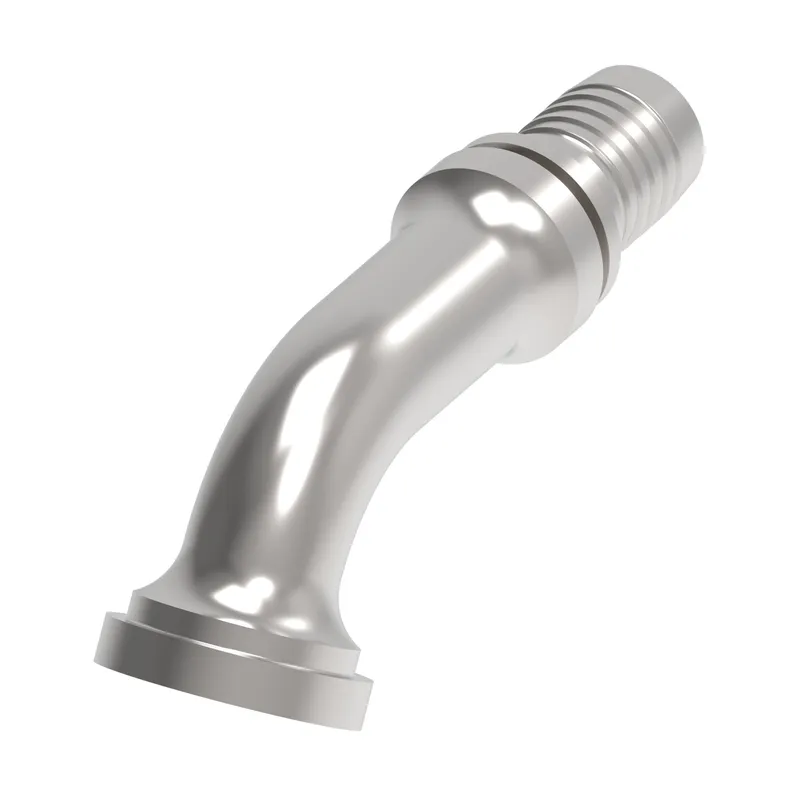

HOSE NIPPLE ASSY, 1A/16, C61/16, CS, 60D
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Braided hose and fittings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 1S16FLG16 be shipped?
1S16FLG16 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 1S16FLG16 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 1S16FLG16 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1S16FLG16, subject to availability and destination.
Danfoss HOSE NIPPLE ASSY, 1A/16, C61/16, CS, 60D, manufacturer part number 1S16FLG16. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| A dimension IN | 5.240 |
| A dimension MM | 133.100 |
| Angle shape | 60 Degree |
| Brand | Aeroquip by Danfoss |
| Compatible hose ID IN | 1.000 |
| Compatible hose ID MM | 25.400 |
| Compatible hoses | 2781 |
| Construction Style | Crimp |
| Drop dimension IN | 1.507 |
| Drop dimension MM | 38.30 |
| End size 1 | -16 |
| End Type 1 | Split flange code 61 |
| Finish plating | Dura-Kote |
| Hose cut off factor IN | 3.885 |
| Hose cut off factor MM | 98.700 |
| Hose size | -16 |
| Inside diameter IN | 0.783 |
| Inside diameter MM | 19.900 |
| Product height in | 2.200 |
| Product height mm | 55.880 |
| Product length in | 6.100 |
| Product length mm | 154.940 |
| Product material | Carbon steel |
| Product width in | 1.750 |
| Product width mm | 44.45 |
| Thread sealant | No |
| Working pressure max BAR | 345.00 |
| Working pressure max PSI | 5000.00 |
| Working temperature max C | 100 |
| Working temperature max F | 212 |
| Working temperature min C | -40 |
| Working temperature min F | -40 |
