HOSE NIPPLE ASSY,1A/16,BSP-M/16,CS,STR
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Braided hose and fittings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 1S16BB16 be shipped?
1S16BB16 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 1S16BB16 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 1S16BB16 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1S16BB16, subject to availability and destination.

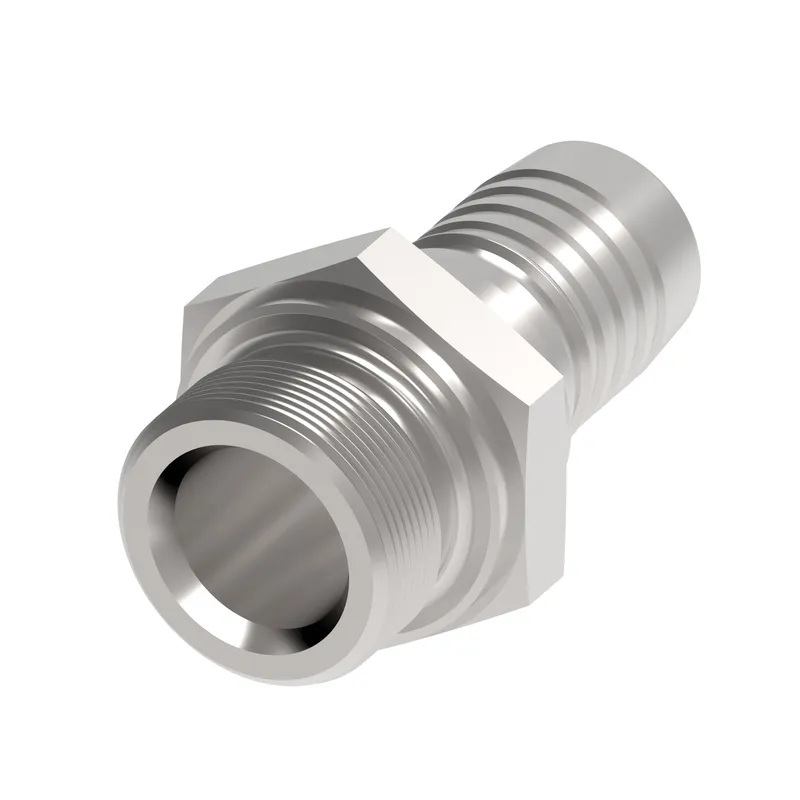

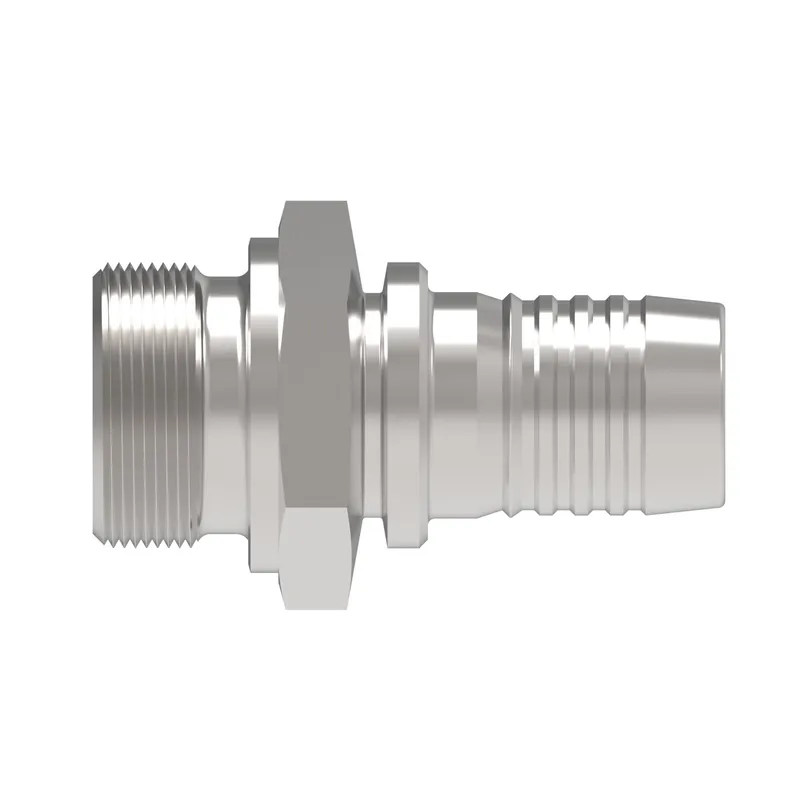

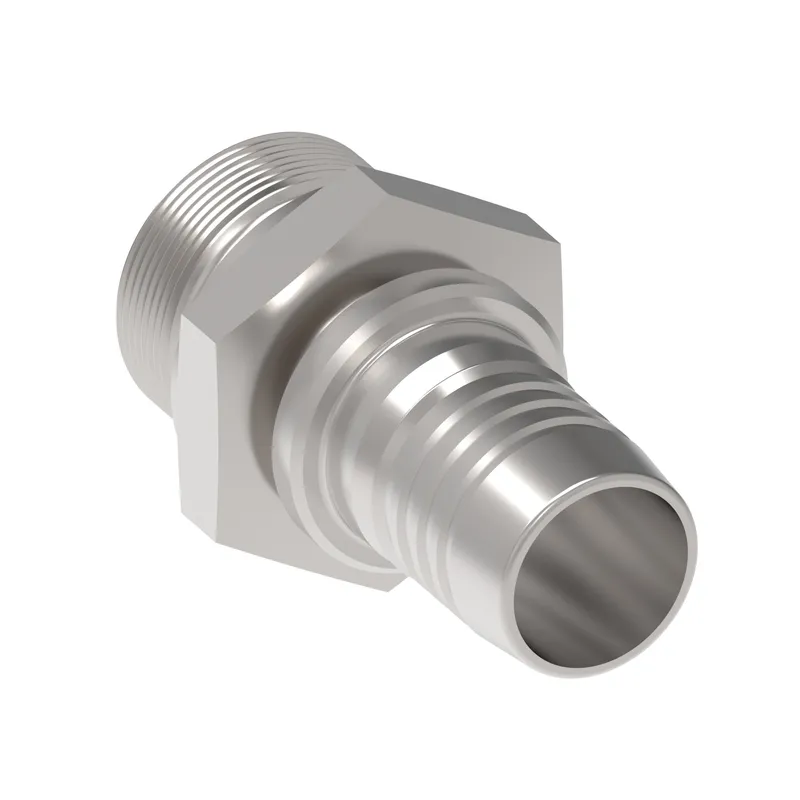

Danfoss HOSE NIPPLE ASSY,1A/16,BSP-M/16,CS,STR, manufacturer part number 1S16BB16. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| A dimension IN | 2.882 |
| A dimension MM | 73.200 |
| Angle shape | Straight |
| Brand | Aeroquip by Danfoss |
| Compatible hose ID IN | 1.000 |
| Compatible hose ID MM | 25.400 |
| Compatible hoses | 2781 |
| Construction Style | Crimp |
| End size 1 | -16 |
| End Type 1 | Male BSP DIN 3852 form B |
| Finish plating | Dura-Kote |
| Hex size 1 IN | 1.614 |
| Hex size 1 MM | 41.000 |
| Hose cut off factor IN | 1.527 |
| Hose cut off factor MM | 38.800 |
| Hose size | -16 |
| Inside diameter IN | 0.819 |
| Inside diameter MM | 20.800 |
| Product height in | 1.600 |
| Product height mm | 40.640 |
| Product length in | 2.880 |
| Product length mm | 73.152 |
| Product material | Carbon steel |
| Product width in | 1.600 |
| Product width mm | 40.64 |
| Thread sealant | No |
| Thread size 1 | G 1 |
| Working pressure max BAR | 280.00 |
| Working pressure max PSI | 4050.00 |
| Working temperature max C | 100 |
| Working temperature max F | 212 |
| Working temperature min C | -40 |
| Working temperature min F | -40 |
