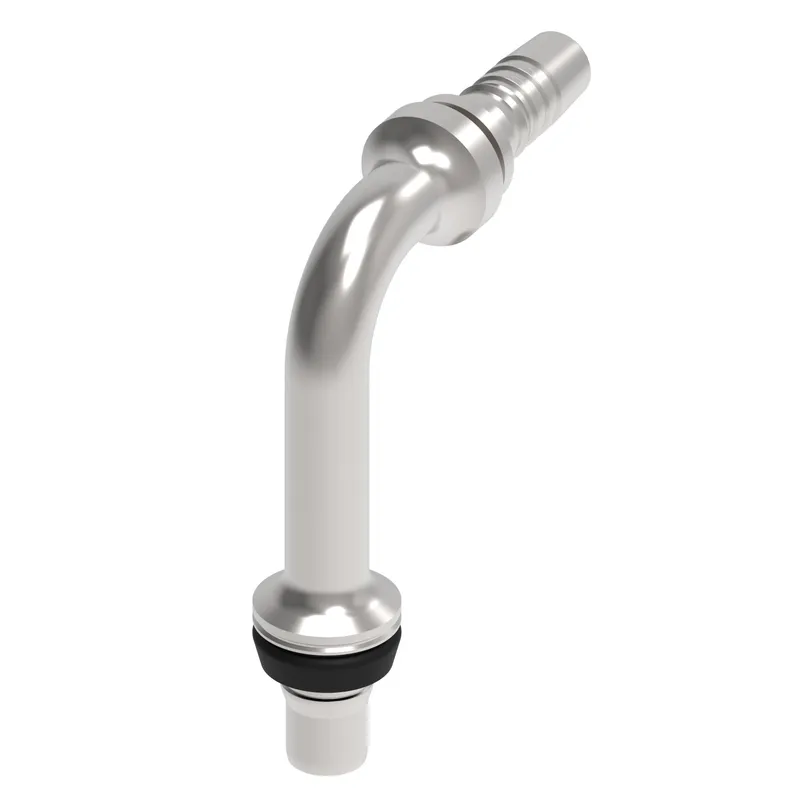

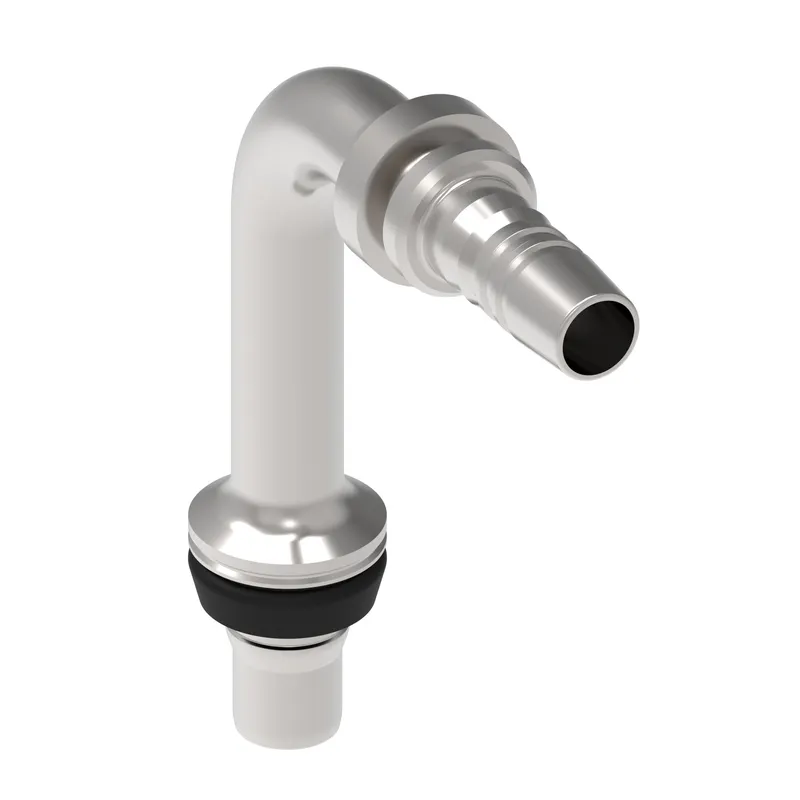

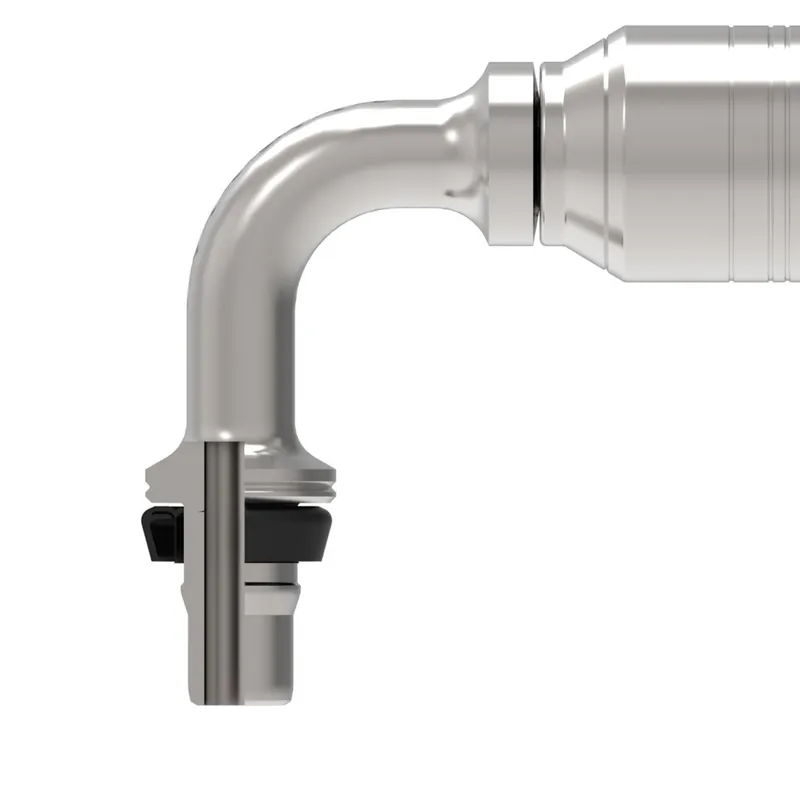

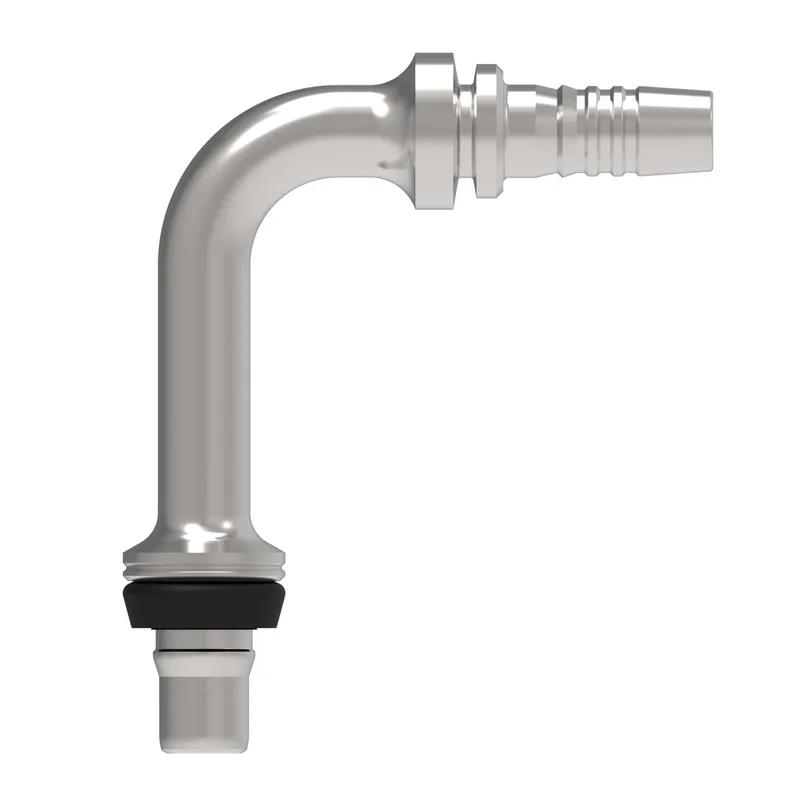

HOSE NIPPLE ASSY,1A/12,STC-M/12,CS,90D
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Braided hose and fittings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 1S12MCC12 be shipped?
1S12MCC12 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 1S12MCC12 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 1S12MCC12 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1S12MCC12, subject to availability and destination.
Danfoss HOSE NIPPLE ASSY,1A/12,STC-M/12,CS,90D, manufacturer part number 1S12MCC12. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| A dimension IN | 3.490 |
| A dimension MM | 88.700 |
| Angle shape | 90 Degree |
| Compatible hose ID IN | 0.750 |
| Compatible hose ID MM | 19.050 |
| Compatible hoses | 2781 |
| Construction Style | Crimp |
| Drop dimension IN | 4.870 |
| Drop dimension MM | 123.70 |
| End size 1 | -12 |
| End Type 1 | Male STC connector, formed |
| Finish plating | Dura-Kote |
| Hose cut off factor IN | 2.300 |
| Hose cut off factor MM | 58.500 |
| Hose size | -12 |
| Inside diameter IN | 0.540 |
| Inside diameter MM | 13.800 |
| Product height in | 5.400 |
| Product height mm | 137.160 |
| Product length in | 4.070 |
| Product length mm | 103.378 |
| Product material | Carbon steel |
| Product width in | 1.260 |
| Product width mm | 32.004 |
| Seal material | Hydrogenated Nitrile (HNBR) |
| Thread sealant | No |
| Working pressure max BAR | 275 |
| Working pressure max PSI | 4000 |
| Working temperature max C | 100 |
| Working temperature max F | 212 |
| Working temperature min C | -40 |
| Working temperature min F | -40 |
