Danfoss 1S12BP12

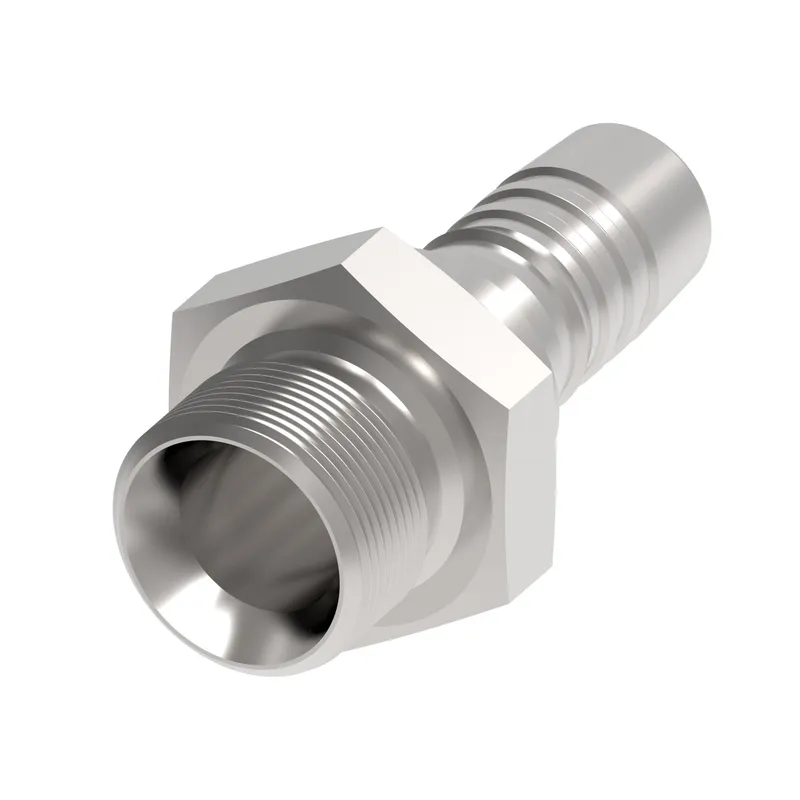

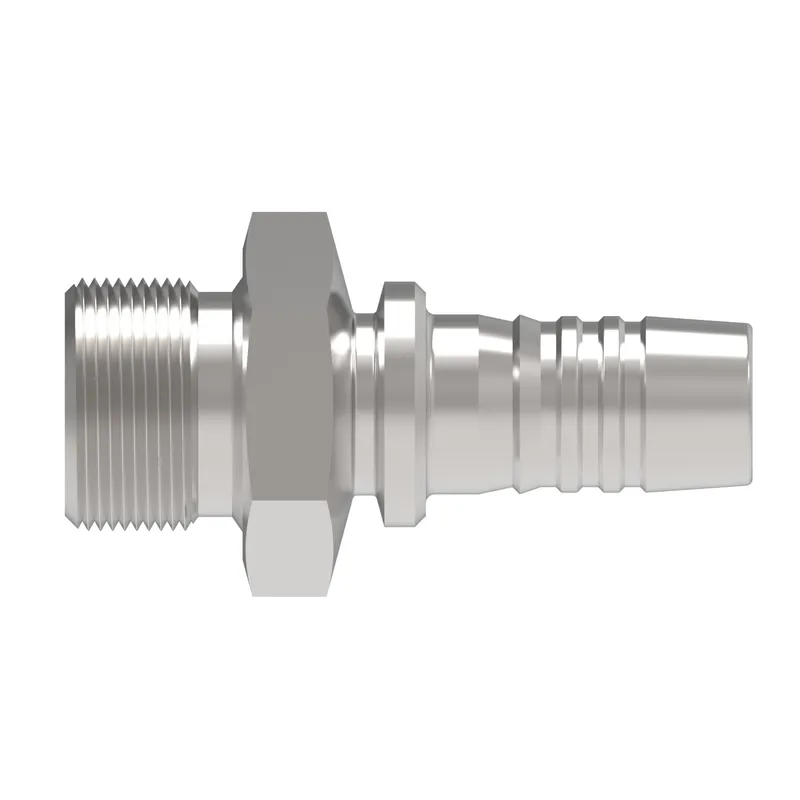

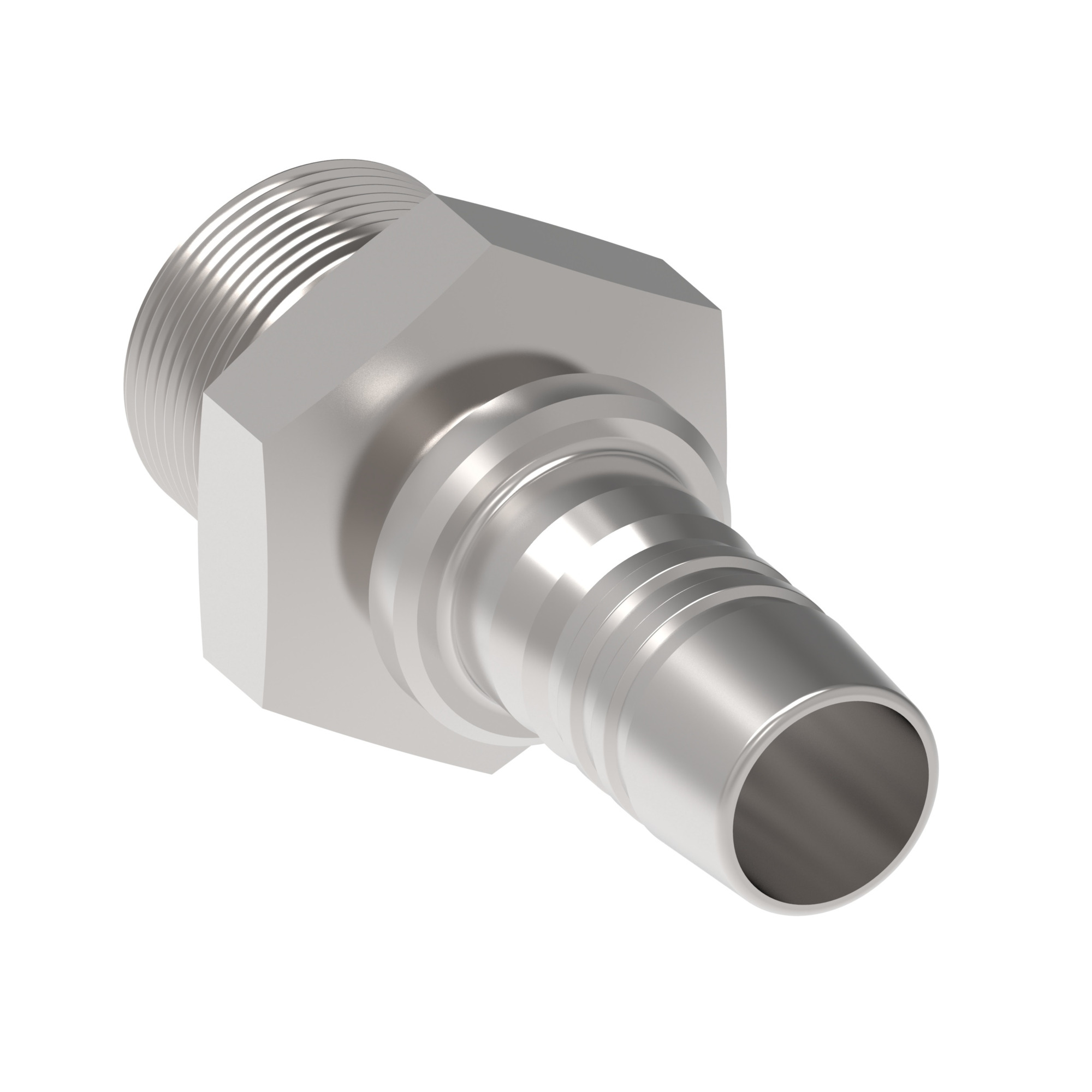

HOSE NIPPLE ASSY,1A/12,BSPJ/12,CS,STR

MPN: 1S12BP12
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Danfoss 1S12BP12?

Danfoss HOSE NIPPLE ASSY,1A/12,BSPJ/12,CS,STR, manufacturer part number 1S12BP12. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.461
A dimension MM	63.100
Angle shape	Straight
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.750
Compatible hose ID MM	19.000
Compatible hoses	2781
Construction Style	Crimp
End connection torque	103-118 lb-ft(140-160 Nm)
End size 1	-12
End Type 1	Male BSPP 60 degree cone
Finish plating	Dura-Kote
Hex size 1 IN	1.260
Hex size 1 MM	32.004
Hex size 2 MM	32.000
Hose cut off factor IN	1.189
Hose cut off factor MM	30.200
Hose size	-12
Inside diameter IN	0.614
Inside diameter MM	15.600
Product height in	1.260
Product height mm	32.004
Product length in	2.480
Product length mm	62.992
Product material	Carbon steel
Product width in	1.260
Product width mm	32.004
Series	1A/Z Series
Thread sealant	No
Thread size 1	G 3/4
Working pressure max BAR	330
Working pressure max PSI	4800
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
