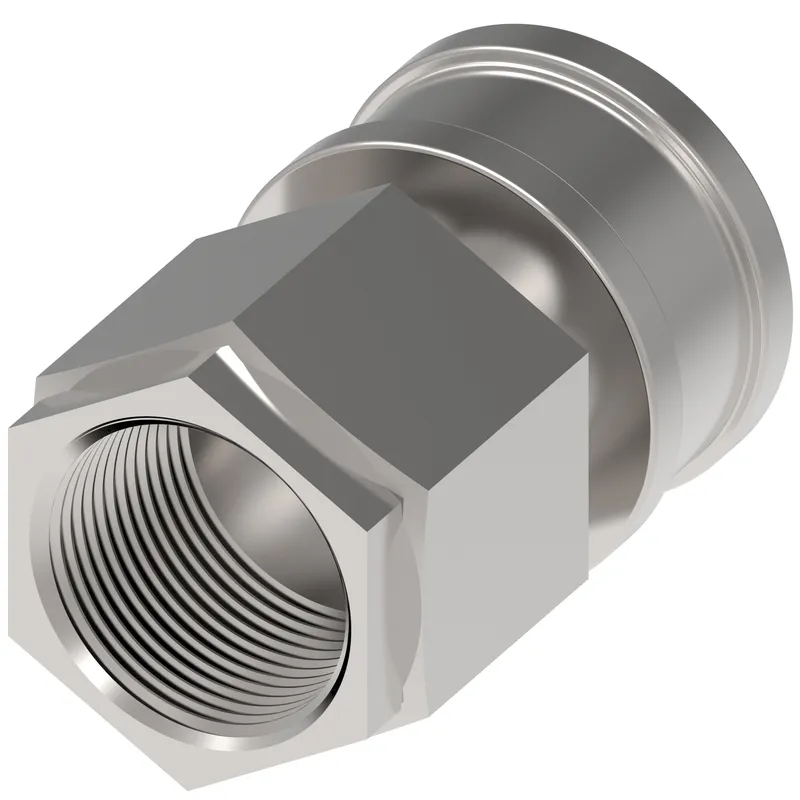

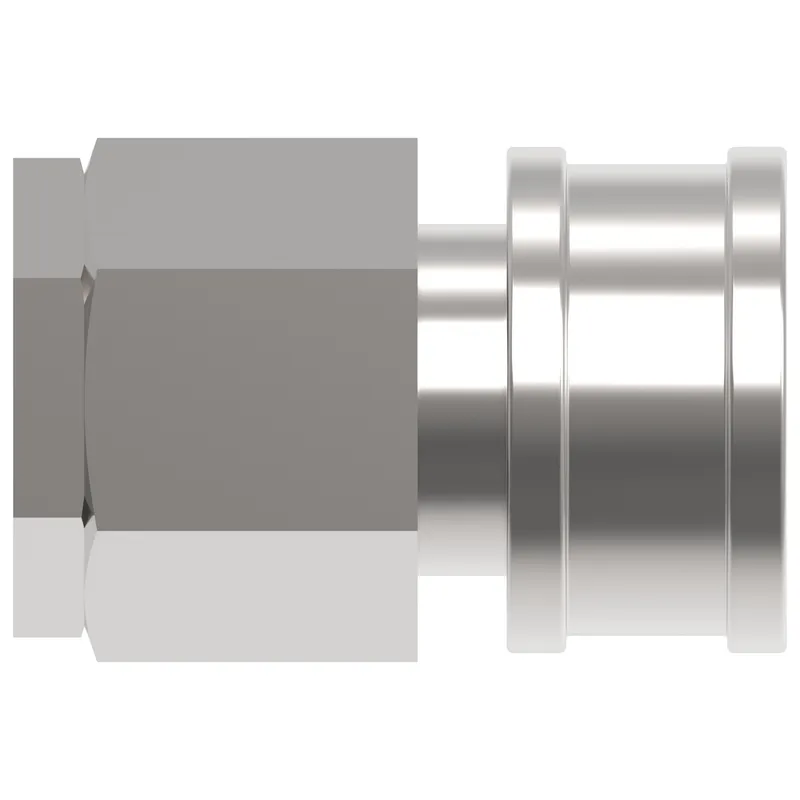

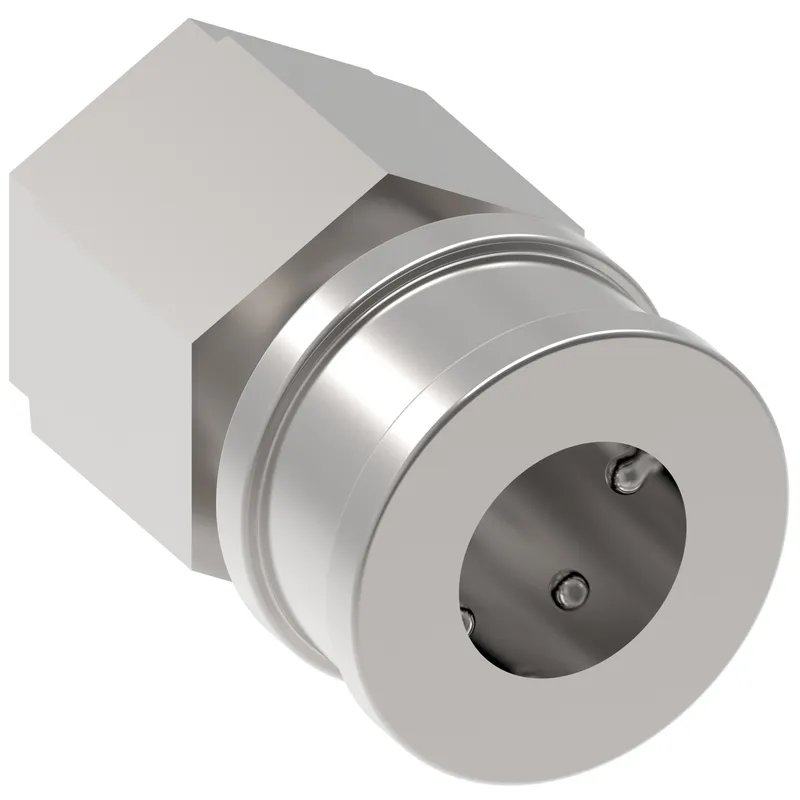

Danfoss 1H4

COUPLING,HK,F,1/8,CS,-4UNF,NBR

MPN: 1H4
Category: Danfoss Hansen® quick disconnect couplings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1H4?

Danfoss COUPLING,HK,F,1/8,CS,-4UNF,NBR, manufacturer part number 1H4. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146097613
Air inclusion max cc	0.60
Angle shape	Straight
Application	Aerospace, Agriculture, Chemical, Construction, Consumer products, Fluid transfer, Food and beverage, General industry, Hvac, Hydraulics, Law enforcement/rescue, Medical, Military, Oil and gas, Transportation, Trucks
Body size	1/8
Certifications	ISO 7241-1 Series B
Connection style	Manual connect
End size 1	-4
End type 1	Female ORB port ISO 11926-1
Finish plating	Zinc trivalent
Flow rate GPM	0.80
Fluid compatibility	Hydraulic service
Fluid loss cc	0.50000
Hex size 1 IN	0.690
Item type	Female half
Latch type	Push/pull
Product length in	2.060
Product material	Carbon steel
Safety locking mechanism	None
Seal material	Nitrile (NBR)
Thread size 1	7/16-20 UNF
Valve type	2 way
Working pressure max psi	4000
Working temperature max F	250
Working temperature min F	-40
