Danfoss 1G40DLB24

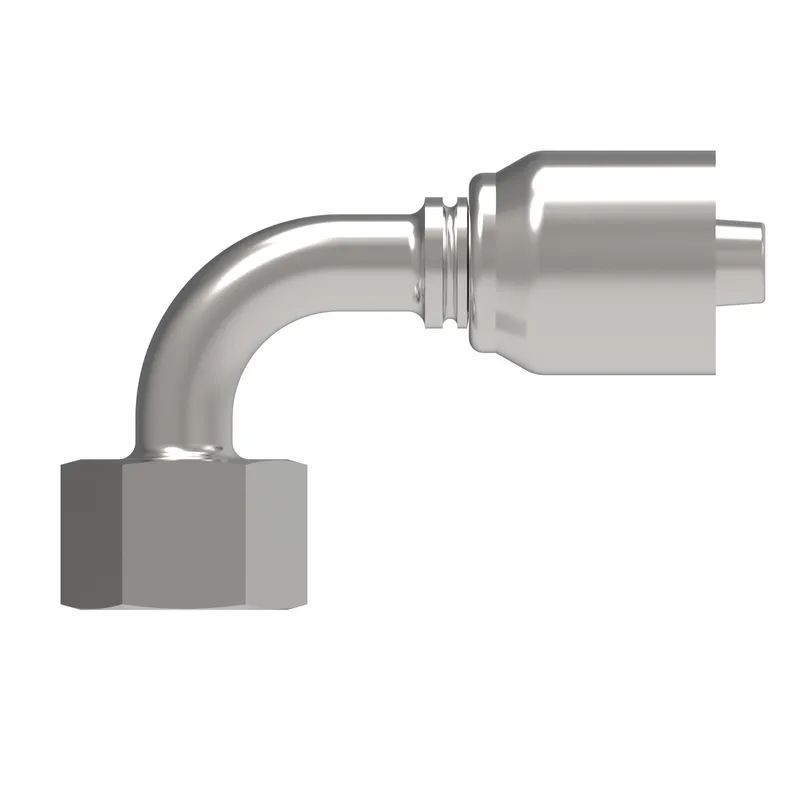

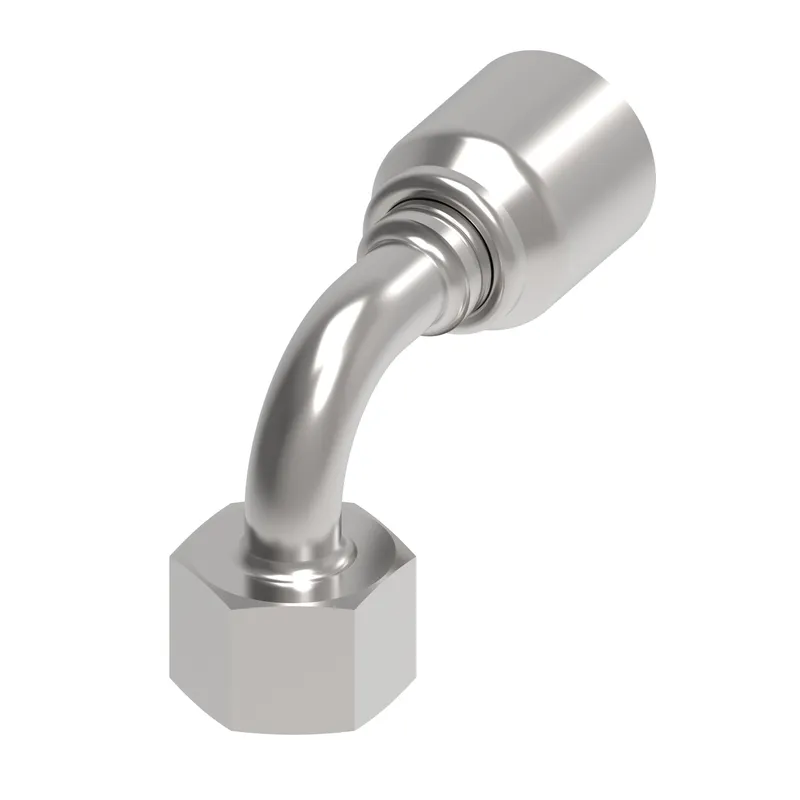

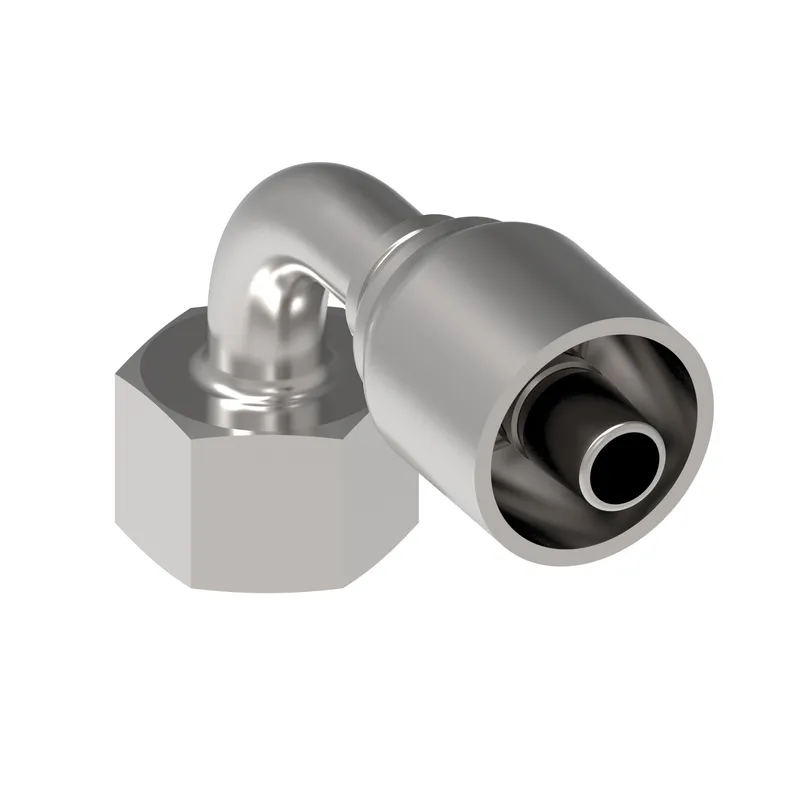

HOSE FTG, 1G/24, DKOL/40, CS, 90D

MPN: 1G40DLB24
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1G40DLB24?

Danfoss HOSE FTG, 1G/24, DKOL/40, CS, 90D, manufacturer part number 1G40DLB24. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	5.980
A dimension MM	152.000
Angle shape	90 Degree
Brand	Aeroquip by Danfoss
Compatible hose ID IN	1.500
Compatible hose ID MM	38.100
Compatible hoses	GH585, GH586
Construction Style	Crimp
Drop dimension IN	4.170
Drop dimension MM	106.00
End size 1	-40
End Type 1	24 deg. DKO swivel light duty
Finish plating	Zinc plating
Hex size 1 IN	2.360
Hex size 1 MM	59.944
Hose cut off factor IN	4.130
Hose cut off factor MM	105.700
Hose size	-24
Inside diameter IN	1.260
Inside diameter MM	32.000
Product height in	5.310
Product height mm	134.874
Product length in	7.160
Product length mm	181.864
Product material	Carbon steel
Product width in	2.362
Product width mm	59.995
Proposition 65	Cancer and Reproductive Harm
Series	OTC
Thread sealant	No
Thread size 1	M52x2
Working pressure max BAR	400.00
Working pressure max PSI	5800.00
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
