Danfoss 1F20540-2020-S

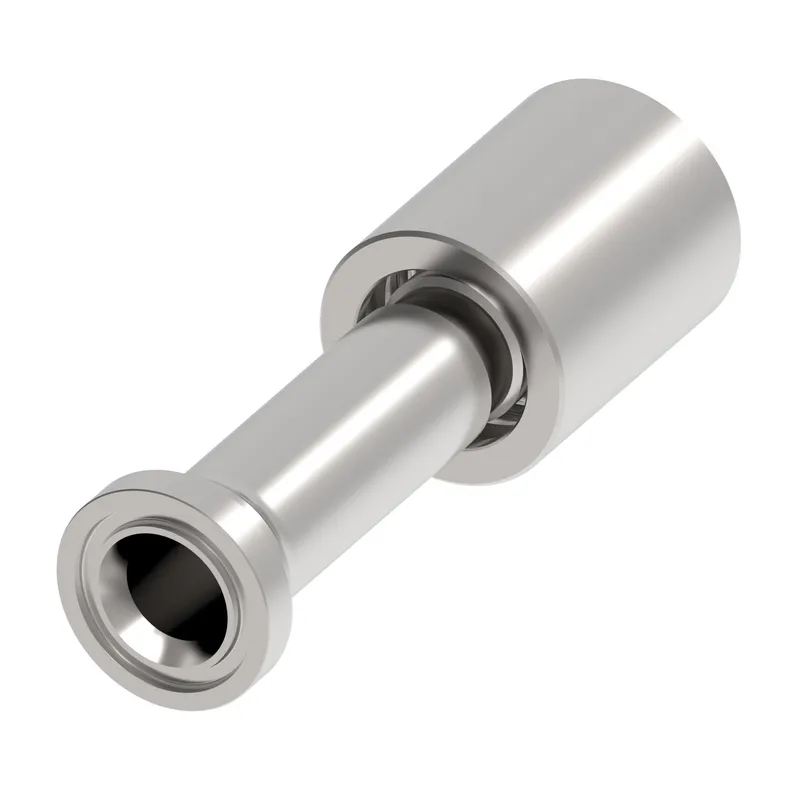

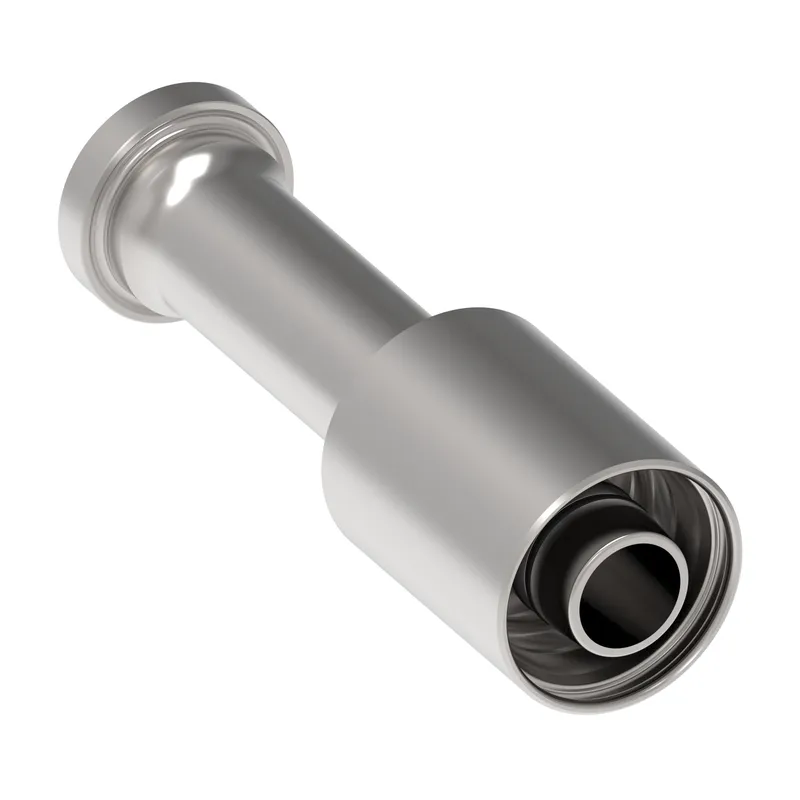

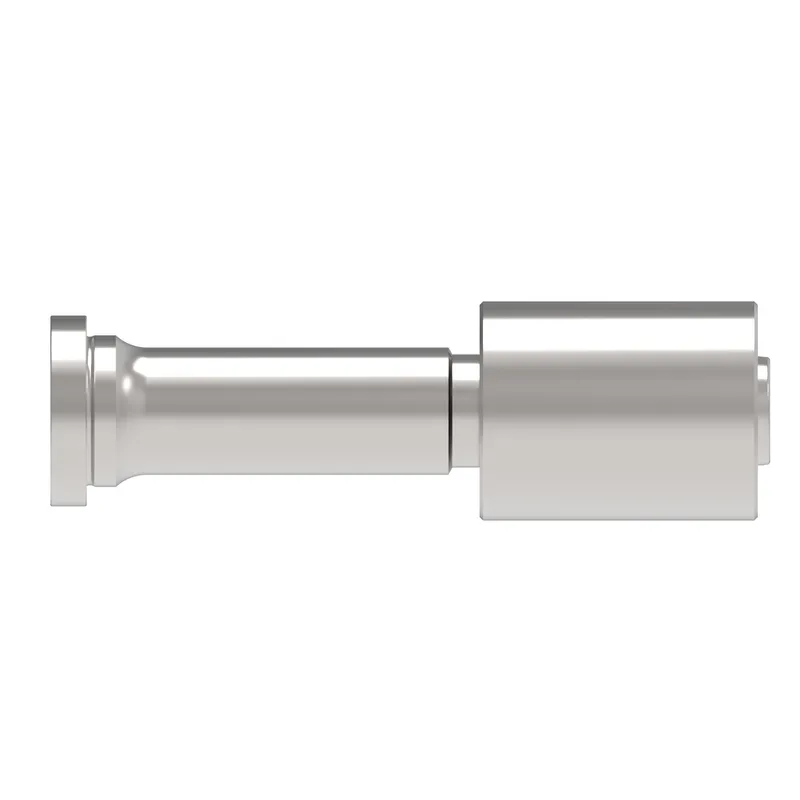

HOSE FTG, 1A/20, C62/20, CS, STR

MPN: 1F20540-2020-S
Category: Spiral hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1F20540-2020-S?

Danfoss HOSE FTG, 1A/20, C62/20, CS, STR, manufacturer part number 1F20540-2020-S. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	8.020
A dimension MM	203.600
Angle shape	Straight
Brand	Aeroquip by Danfoss
Compatible hose ID IN	1.250
Compatible hose ID MM	31.800
Construction Style	Crimp
End size 1	-20
End type 1	Split flange code 62
Finish plating	Dura-Kote
Hose cut off factor IN	5.070
Hose cut off factor MM	128.700
Hose size	-20
Inside diameter IN	1.000
Inside diameter MM	25.500
Product height in	2.441
Product height mm	61.999
Product length in	8.016
Product length mm	203.601
Product material	Carbon steel
Product width in	2.441
Product width mm	61.999 mm
Seal material	Ethylene Propylene (EPDM)
Series	1A/Z Series
Thread sealant	No
Working pressure max BAR	414
Working pressure max PSI	6000
