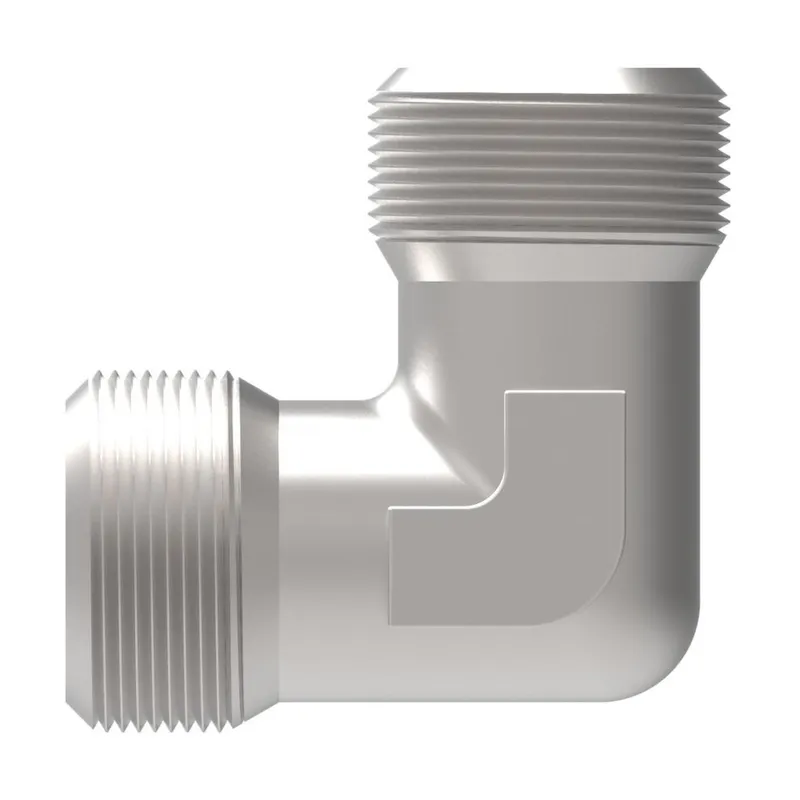

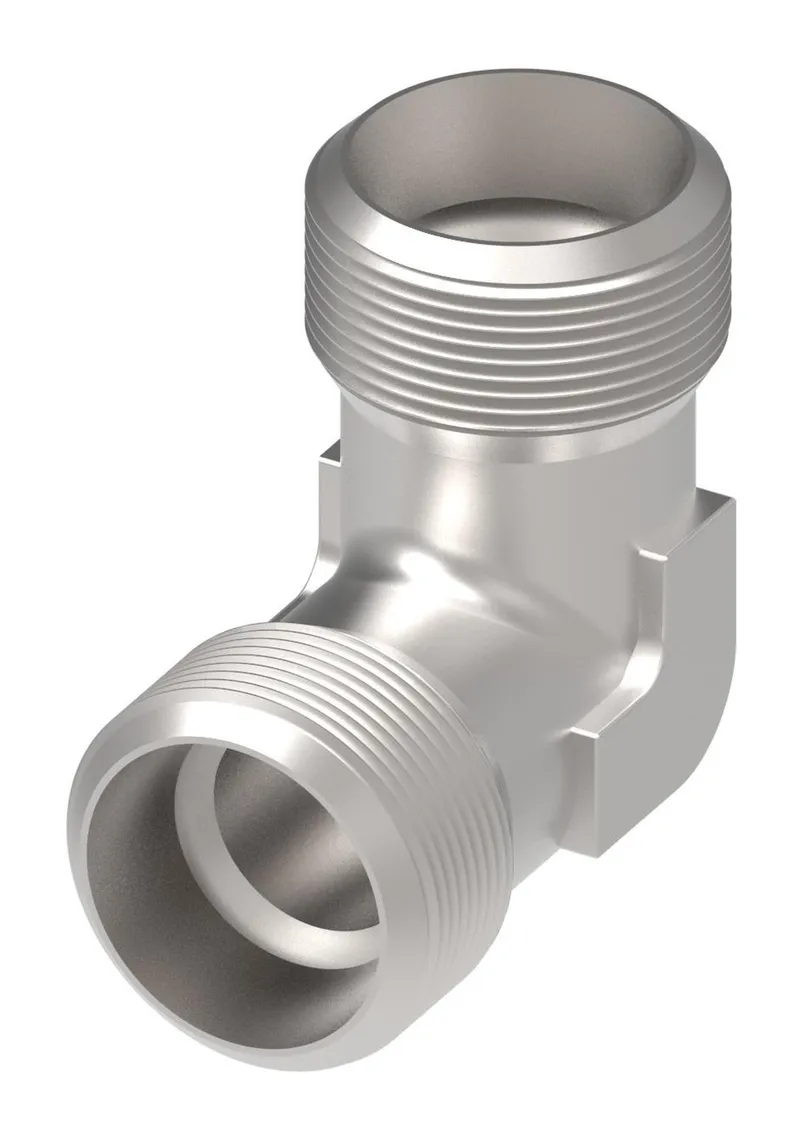

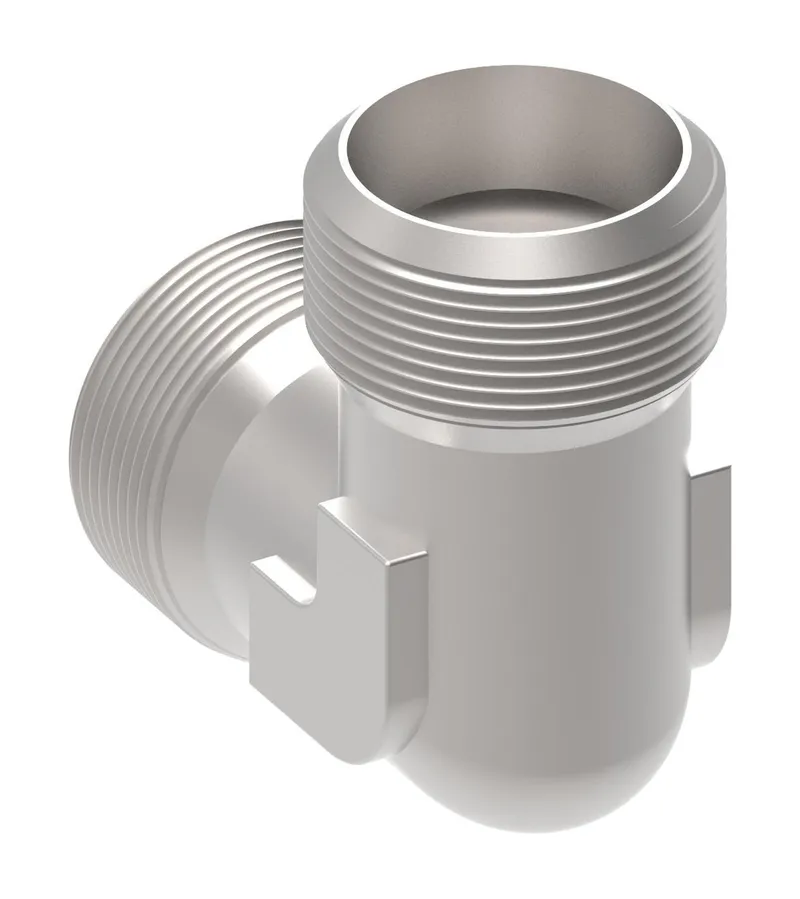

HOSE FTG, 1A/08, DKOH-B/08, AN, 90D
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Tube fittings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 1D9-24SR be shipped?
1D9-24SR is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 1D9-24SR in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 1D9-24SR and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1D9-24SR, subject to availability and destination.
Danfoss HOSE FTG, 1A/08, DKOH-B/08, AN, 90D, manufacturer part number 1D9-24SR. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| A dimension IN | 1.299 |
| A dimension MM | 33.000 |
| Angle shape | 90 Degree |
| Brand | Winner by Danfoss |
| Complete connector | Yes |
| Construction Style | Crimp |
| End size 1 | -8 |
| End Type 1 | 24 deg. DKO swivel heavy duty |
| Hex size 5 MM | 24.0 |
| Hose size | -8 |
| Inside diameter IN | 0.4720 |
| Inside diameter MM | 12.0000 |
| Item type | Adapter-elbow |
| Product height in | 1.771 |
| Product height mm | 45.000 |
| Product length in | 1.771 |
| Product length mm | 45.000 |
| Product material | 304 Stainless steel |
| Product serial name | 1D9 |
| Product width in | 0.944 |
| Product width mm | 24 |
| Series | 1A/Z Series |
| Thread size 1 | M24x1.5 |
| Working pressure max BAR | 360.00 |
| Working pressure max PSI | 5300.00 |
