Danfoss 1CH9-22OGSVRNW

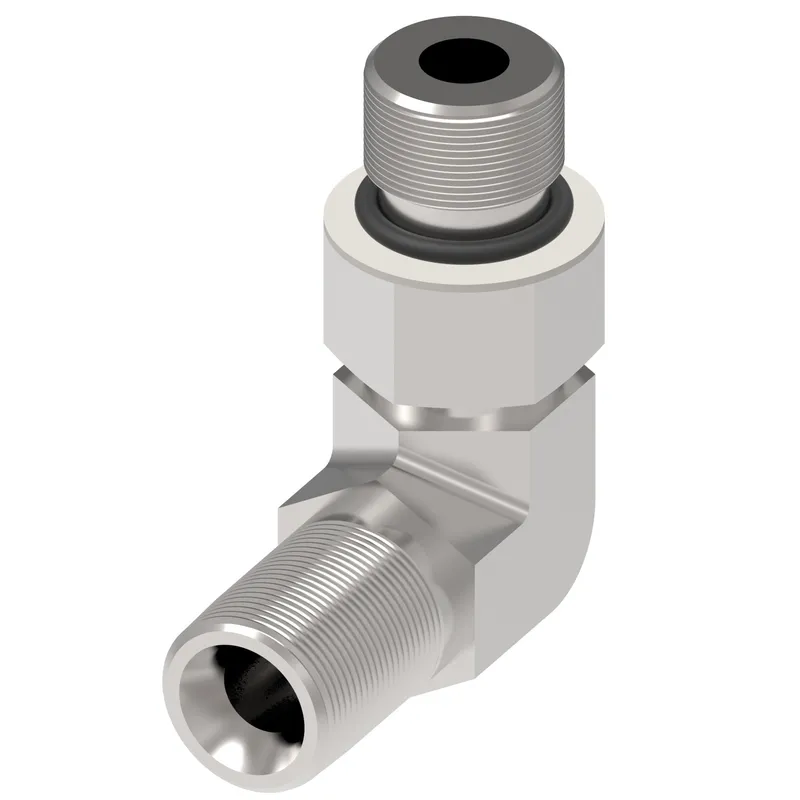

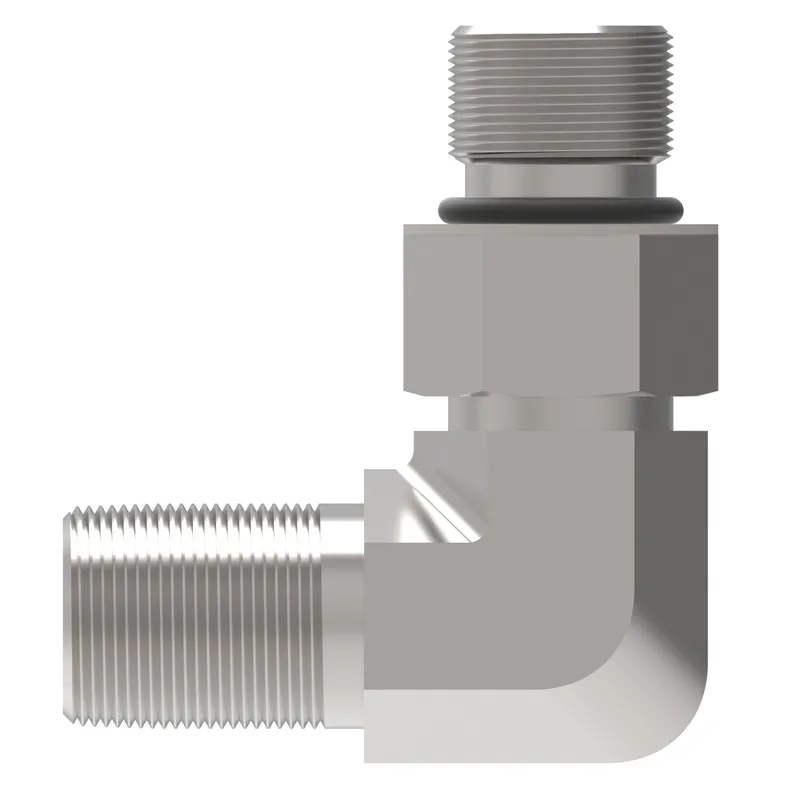

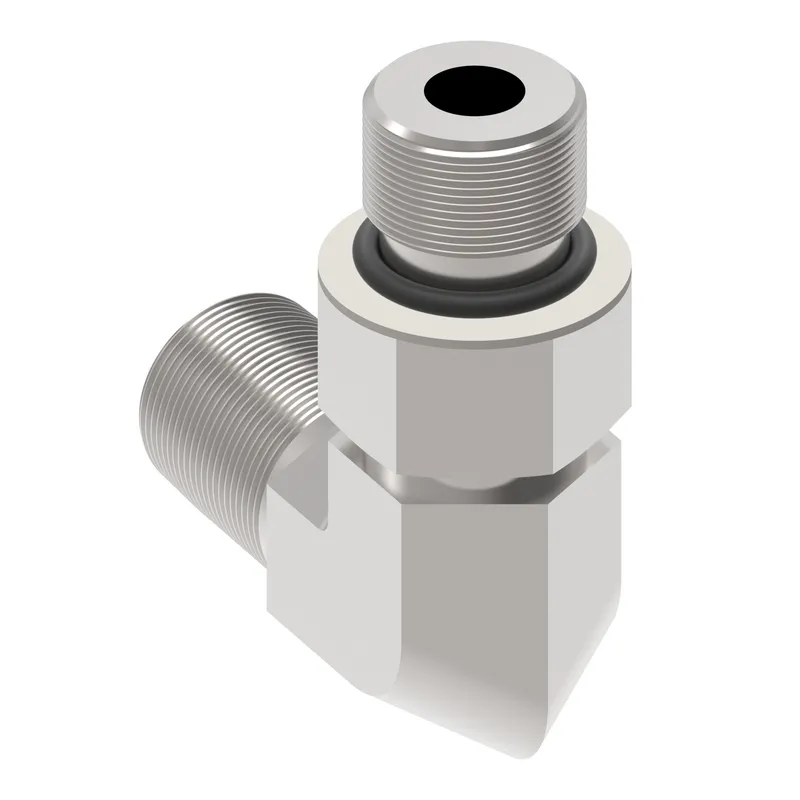

Adapter-ELB,1CH9,15LM22,316L,FKM,PA

MPN: 1CH9-22OGSVRNW
Category: Tube fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1CH9-22OGSVRNW?

Danfoss Adapter-ELB,1CH9,15LM22,316L,FKM,PA, manufacturer part number 1CH9-22OGSVRNW. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Angle shape	90 Degree
Brand	Winner by Danfoss
Complete connector	Yes
End size 1	15L
End size 2	M22
End type 1	24 deg. tube port light duty
End type 2	Male adjustable ORB ISO 6149-2
Finish plating	Passivate
Hex size 1 MM	27.0
Hex size 2 MM	27.0
Hex size 5 MM	22.0
Item type	Adapter-elbow
Product material	316L Stainless steel
Product serial name	1CH9
Seal material	Fluorocarbon (FKM)
Thread sealant	No
Thread size 1	M22x1.5
Thread size 2	M22x1.5

1CH9-22OGSVRNW: frequently asked questions

When can 1CH9-22OGSVRNW be shipped?

1CH9-22OGSVRNW is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1CH9-22OGSVRNW in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1CH9-22OGSVRNW and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1CH9-22OGSVRNW, subject to availability and destination.
