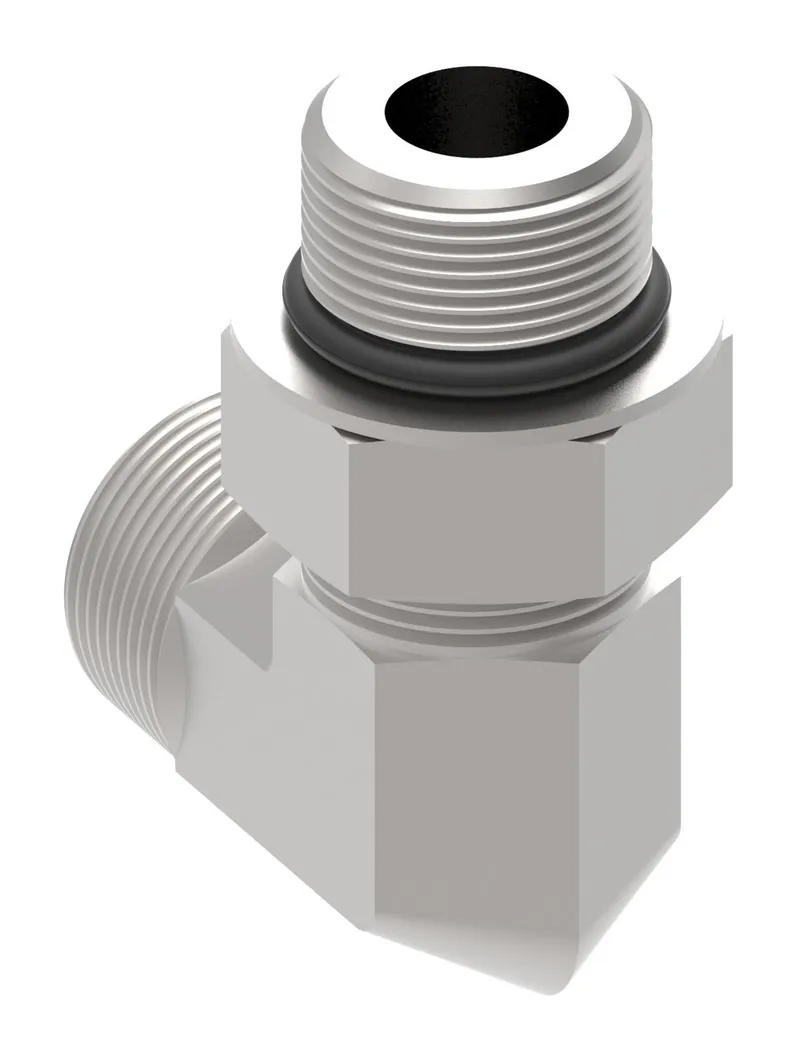

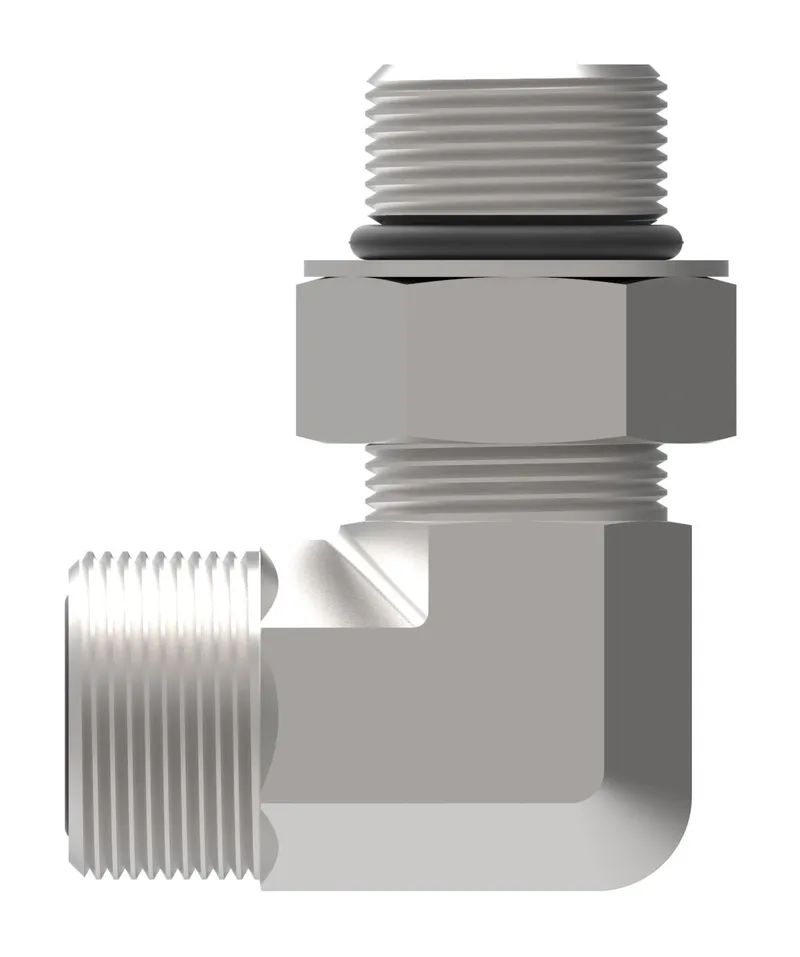

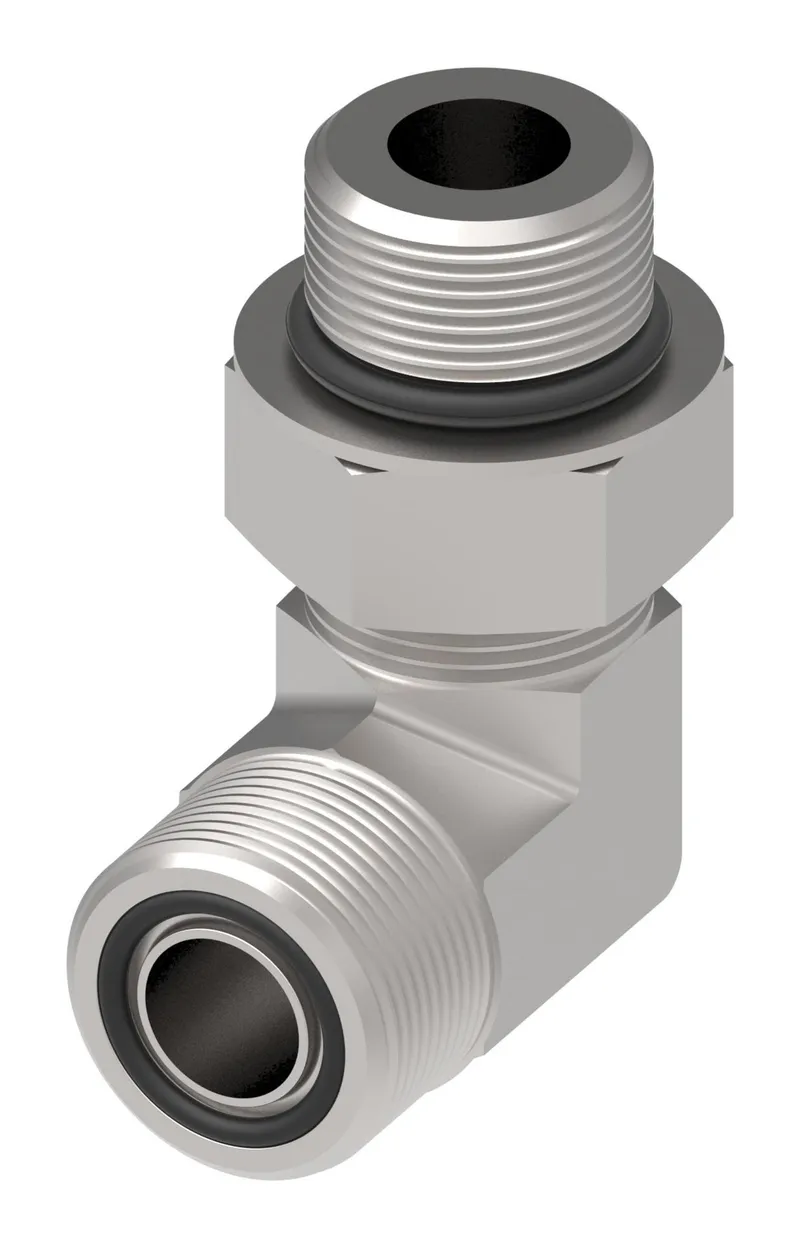

Adapter-ELB,1CG9,22L-16,CS,NBR,Z

Name: Danfoss 1CG9-30-16OGZ – Adapter-ELB,1CG9,22L-16,CS,NBR,Z
Brand: Danfoss (Drives)
SKU: 1CG9-30-16OGZ

MPN: 1CG9-30-16OGZ · Brand: Danfoss (Drives)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Tube fittings
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 1CG9-30-16OGZ be shipped?

1CG9-30-16OGZ is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1CG9-30-16OGZ in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1CG9-30-16OGZ and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1CG9-30-16OGZ, subject to availability and destination.

Danfoss Adapter-ELB,1CG9,22L-16,CS,NBR,Z, manufacturer part number 1CG9-30-16OGZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Angle shape	90 Degree
Brand	Winner by Danfoss
End size 1	22L
End size 2	-16
End type 1	24 deg. tube port light duty
End type 2	Male adjustable ORB BSPP
Finish plating	Zinc
Hex size 2 MM	41.000
Hex size 3 MM	33.0
Item type	Adapter-elbow
Product material	Carbon steel
Product serial name	1CG9
Seal material	Nitrile (NBR)
Thread size 1	M30x2
Thread size 2	G 1
