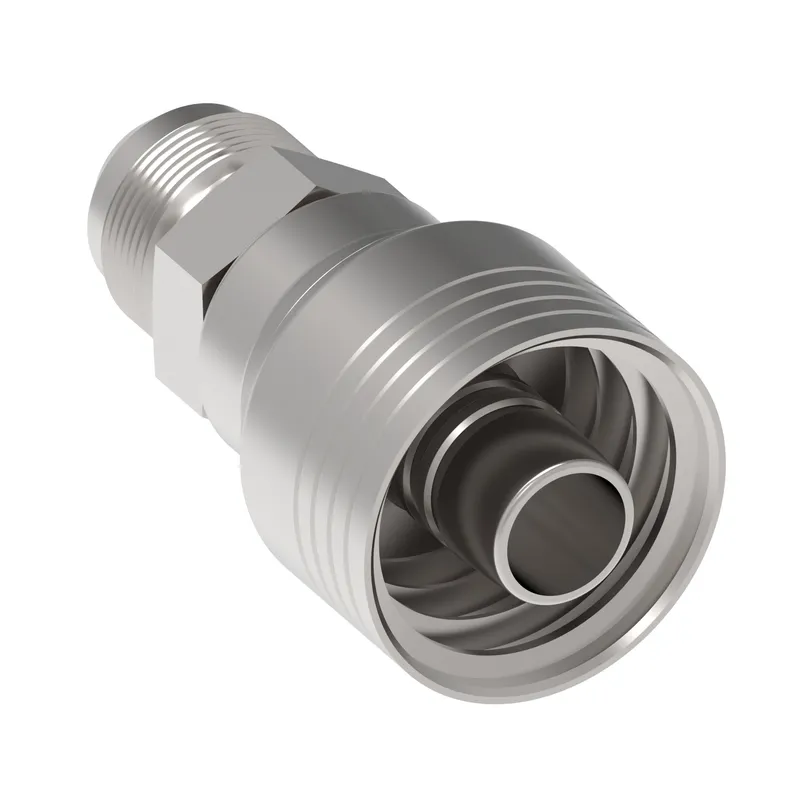

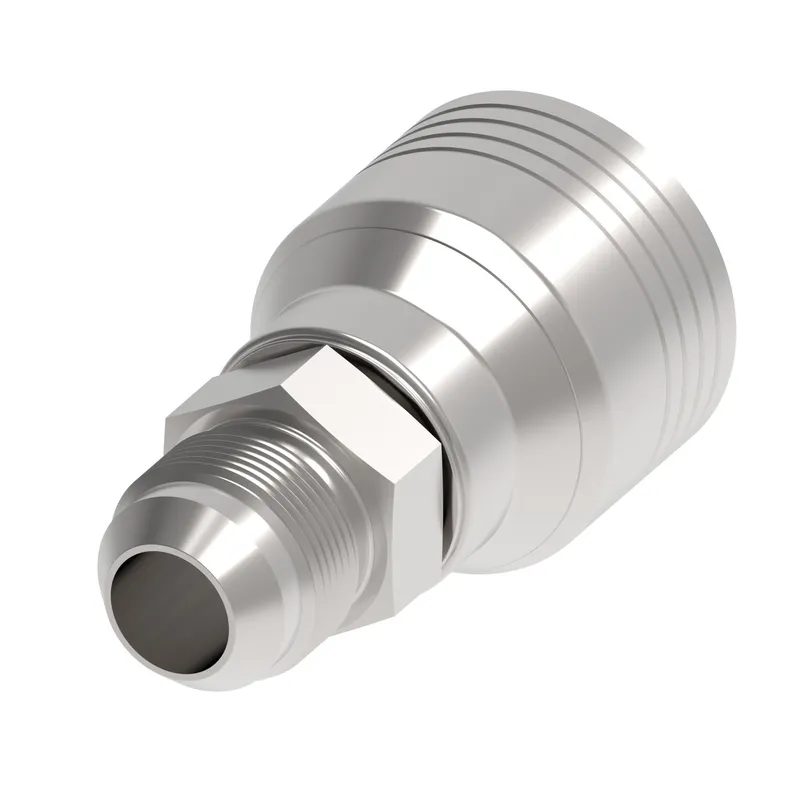

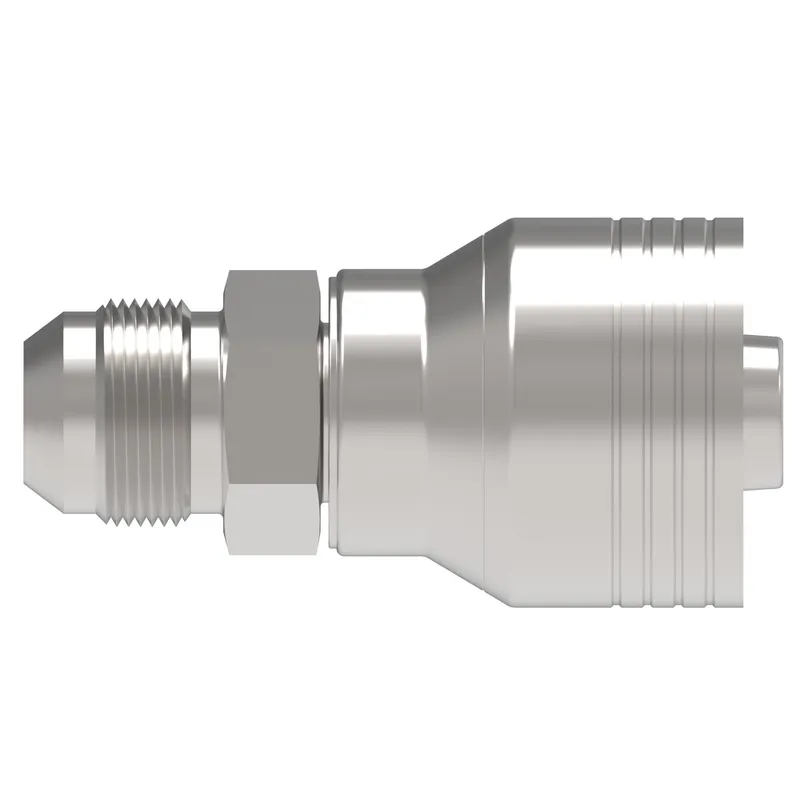

Danfoss 1BA8MJ8

HOSE FTG, 1A/08, JIC-M/08, CS, STR

MPN: 1BA8MJ8
Category: Spiral hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1BA8MJ8?

Danfoss HOSE FTG, 1A/08, JIC-M/08, CS, STR, manufacturer part number 1BA8MJ8. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146131430
A dimension IN	2.590
A dimension MM	65.800
Angle shape	Straight
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.500
Compatible hose ID MM	12.700
Compatible hoses	EC525, FC736, GH493, FC636
Compatible tube OD IN	0.50
Compatible tube OD MM	12.700
Construction Style	Crimp
End size 1	-8
End type 1	Male 37 degree
Finish plating	Zinc plating
Hex size 1 IN	0.813
Hex size 1 MM	20.638
Hose cut off factor IN	1.400
Hose cut off factor MM	35.500
Hose size	-8
Inside diameter IN	0.380
Inside diameter MM	9.600
Product height in	1.335
Product height mm	33.909
Product length in	2.570
Product length mm	65.278
Product material	Carbon steel
Product width in	1.335
Product width mm	33.909 mm
Series	1A/Z Series
Thread sealant	No
Thread size 1	3/4-16 UNF
Tube OD 1 IN	0.500
Tube OD 1 MM	12.700
Working pressure max BAR	414
Working pressure max PSI	6000
