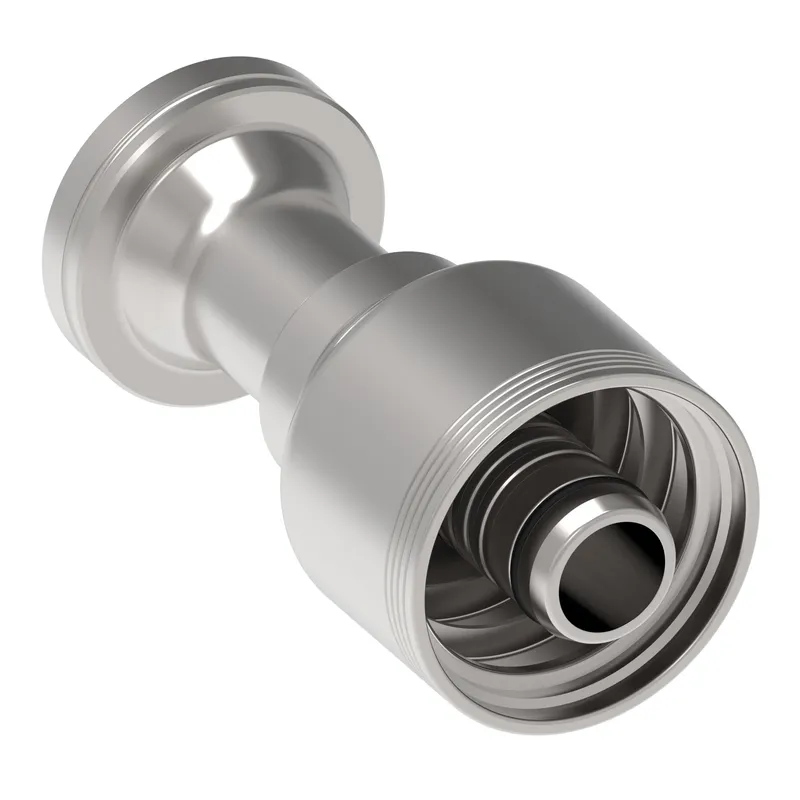

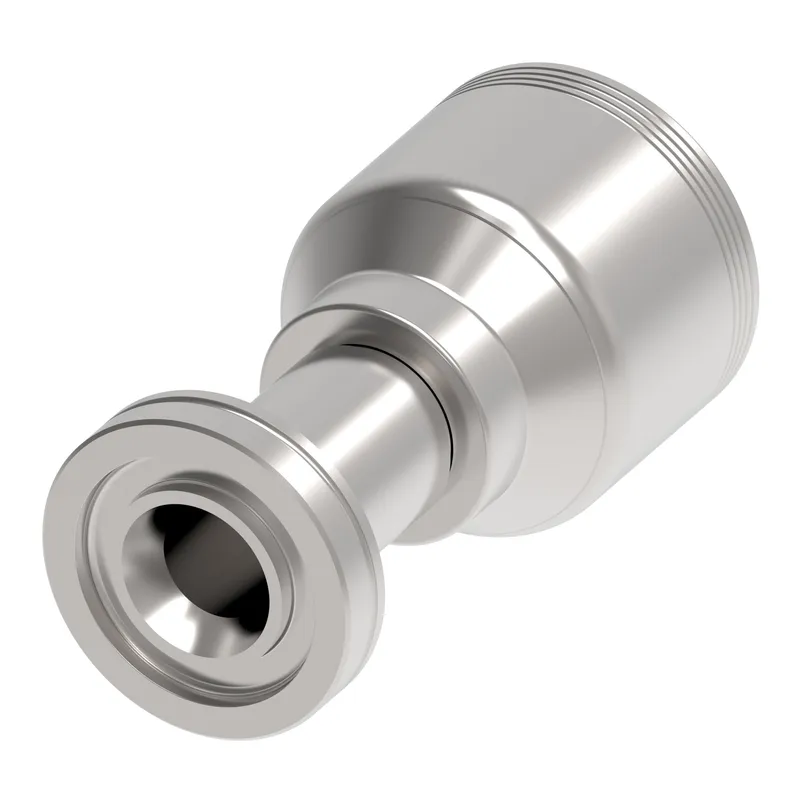

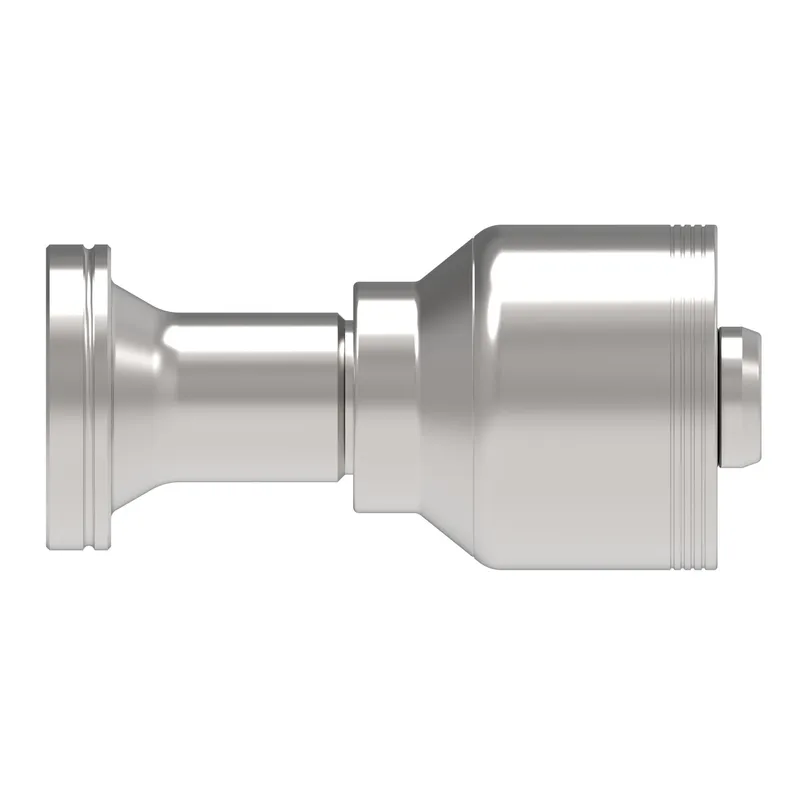

Danfoss 1B12FH12

FTG TTC12 C62 USE 4S12FH 12

MPN
1B12FH12
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1B12FH12?

Danfoss FTG TTC12 C62 USE 4S12FH 12, manufacturer part number 1B12FH12. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

EAN/UPC678146128652
A dimension IN3.570
A dimension MM90.700
Angle shapeStraight
BrandAeroquip by Danfoss
Compatible hose ID IN0.750
Compatible hose ID MM19.000
Construction StyleCrimp
End size 1-12
End type 1Split flange code 62
Finish platingZinc plating
Hose cut off factor IN2.150
Hose cut off factor MM54.500
Hose size-12
Inside diameter IN0.560
Inside diameter MM14.200
Product height in1.657
Product height mm42.078
Product length in3.310
Product length mm84.074
Product materialCarbon steel
Product width in1.657
Product width mm42.087 mm
Seal materialEthylene propylene (EPDM)
SeriesB Series
Thread sealantNo
Working pressure max BAR414.00
Working pressure max PSI6000.00
Working temperature max C93
Working temperature max F200
Working temperature min C-40
Working temperature min F-40

1B12FH12: frequently asked questions

When can 1B12FH12 be shipped?

1B12FH12 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1B12FH12 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1B12FH12 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1B12FH12, subject to availability and destination.
