Danfoss 1AA6MFB6

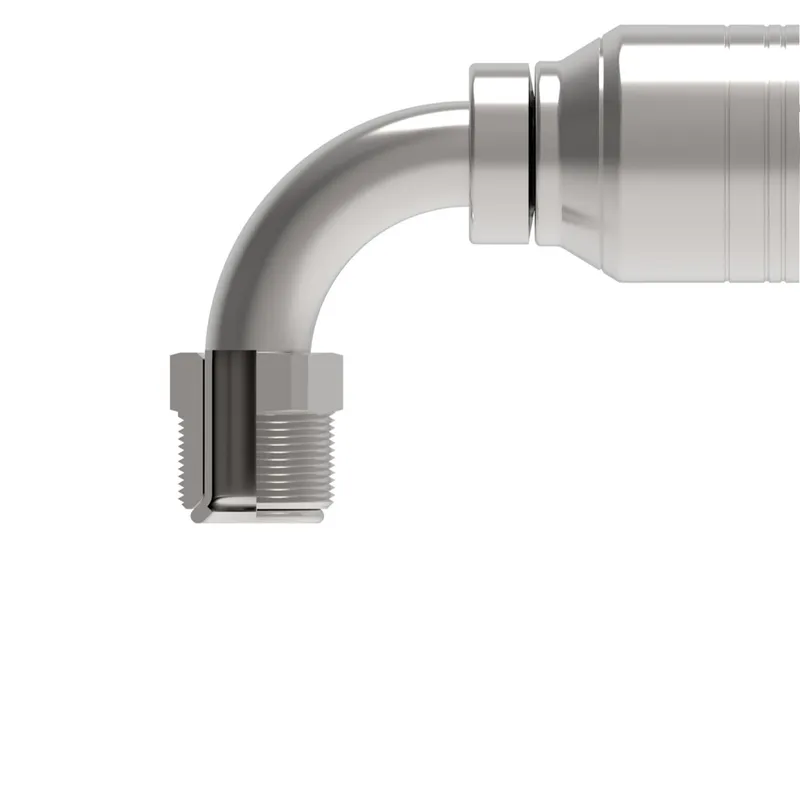

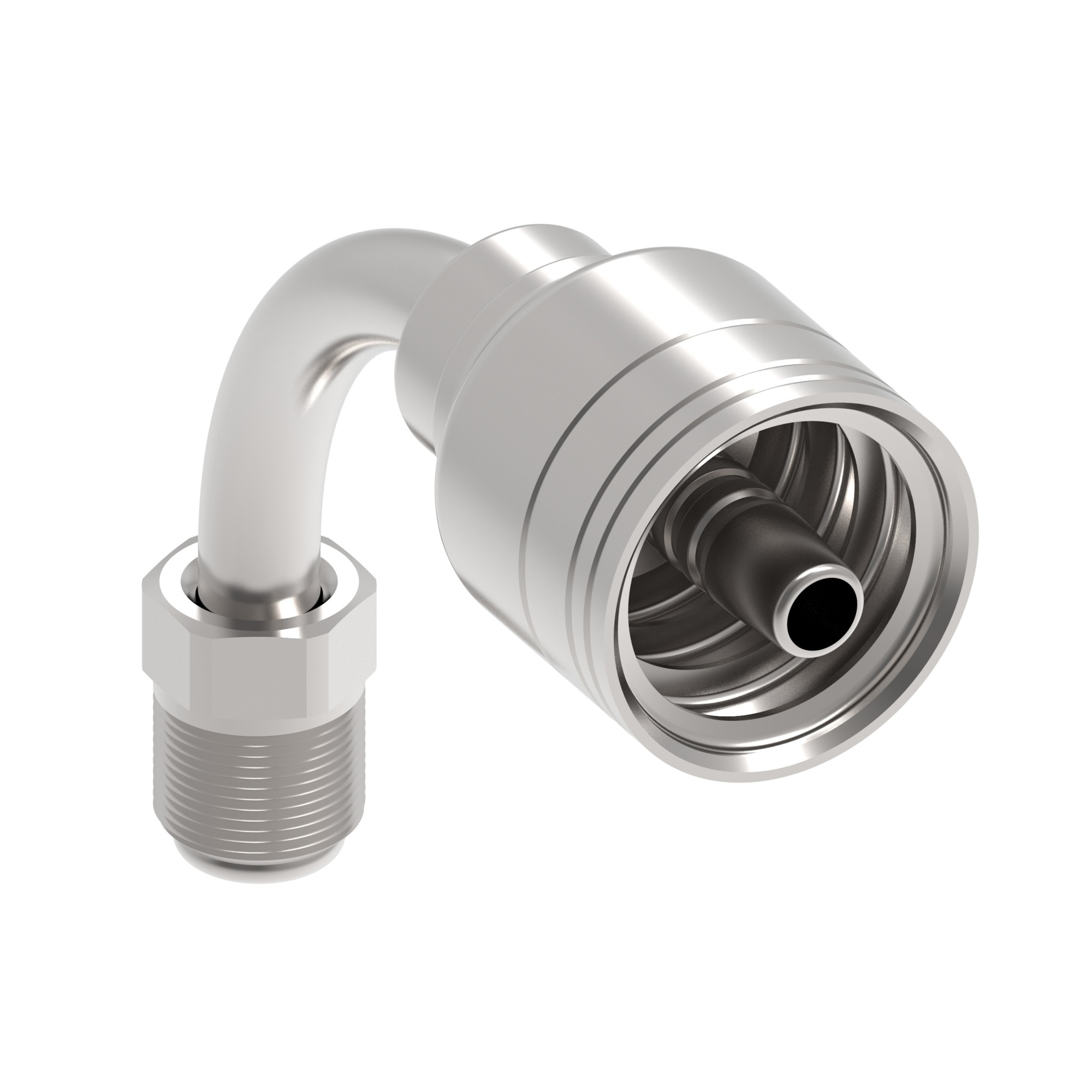

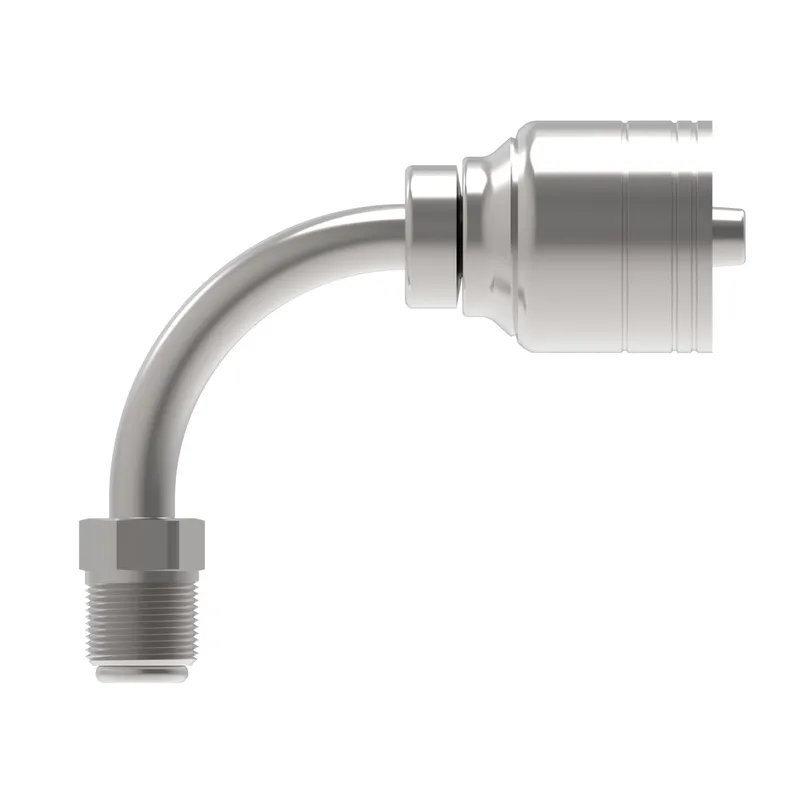

HOSE FTG, 1A/06, INVF-M/06, CS, 90D

MPN: 1AA6MFB6
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1AA6MFB6?

Danfoss HOSE FTG, 1A/06, INVF-M/06, CS, 90D, manufacturer part number 1AA6MFB6. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146127358
A dimension IN	2.350
A dimension MM	59.700
Angle shape	90 Degree
Compatible hose ID IN	0.380
Compatible hose ID MM	9.500
Construction Style	Crimp
Drop dimension IN	1.730
Drop dimension MM	44.00
End size 1	-6
End Type 1	Male inverted flare
Finish plating	Dura-Kote
Hose cut off factor IN	1.510
Hose cut off factor MM	38.400
Hose size	-6
Inside diameter IN	0.260
Inside diameter MM	6.700
Product height in	1.730
Product height mm	43.942
Product length in	2.510
Product length mm	63.754
Product material	Carbon steel
Product width in	1.070
Product width mm	27.178
Series	1A/Z Series
Thread size 1	5/8-18 UNF
Working pressure max BAR	275.00
Working pressure max PSI	4000.00
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40

1AA6MFB6: frequently asked questions

When can 1AA6MFB6 be shipped?

1AA6MFB6 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1AA6MFB6 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1AA6MFB6 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1AA6MFB6, subject to availability and destination.
