Danfoss 1AA6FRC4

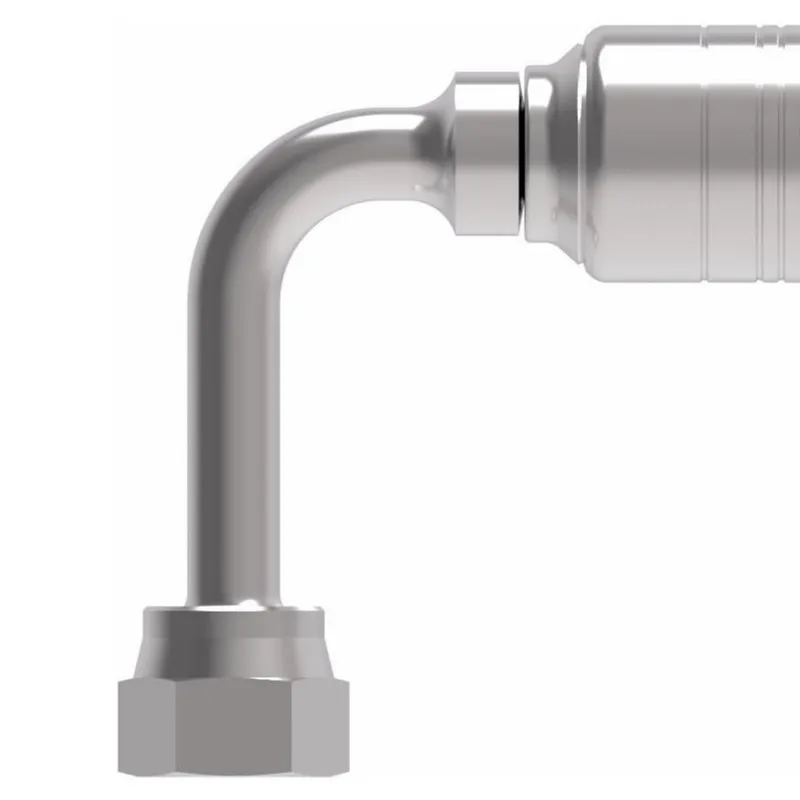

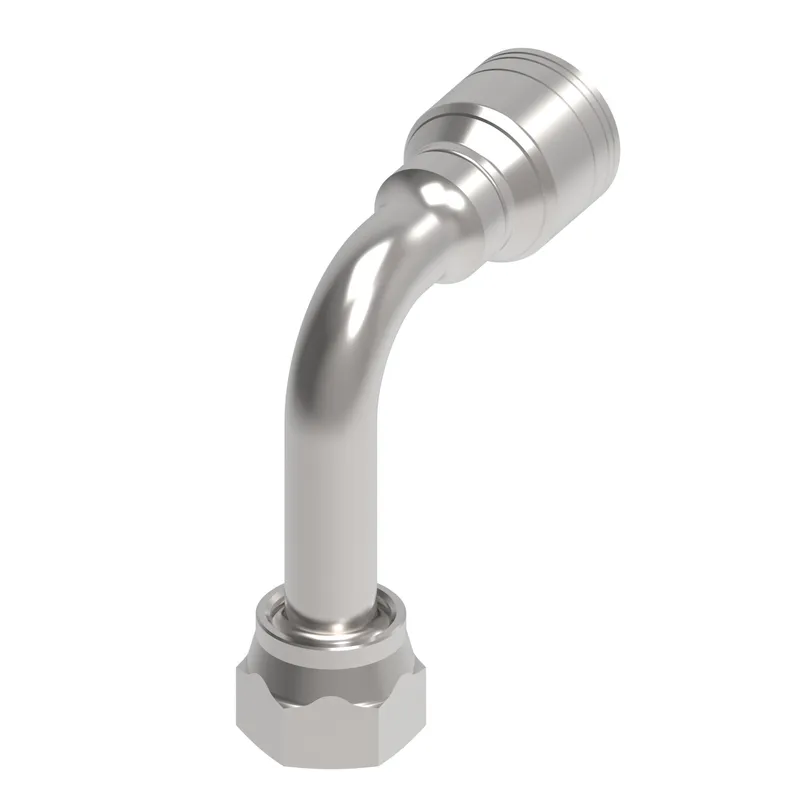

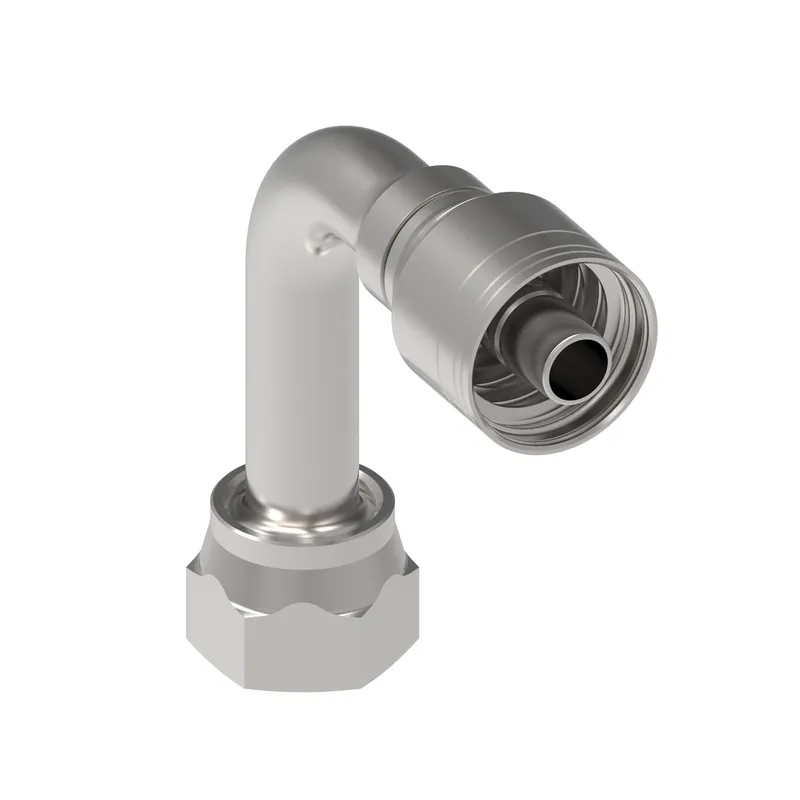

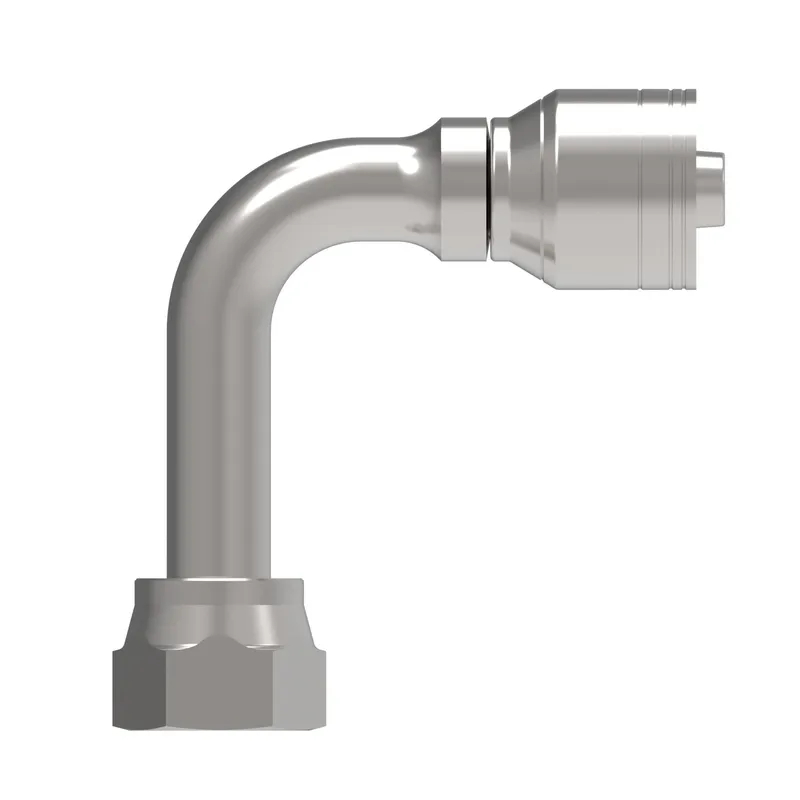

HOSE FTG, 1A/04, ORS-F/06, CS, 90D

MPN: 1AA6FRC4
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1AA6FRC4?

Danfoss HOSE FTG, 1A/04, ORS-F/06, CS, 90D, manufacturer part number 1AA6FRC4. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146127273
A dimension IN	2.090
A dimension MM	53.100
Angle shape	90 Degree
Compatible hose ID IN	0.250
Compatible hose ID MM	6.400
Construction Style	Crimp
Drop dimension IN	2.130
Drop dimension MM	54.10
End connection torque	18-20 lb-ft(24-27 Nm)
End size 1	-6
End Type 1	Female ORFS swivel
Finish plating	Dura-Kote
Hose cut off factor IN	1.300
Hose cut off factor MM	32.900
Hose size	-4
Inside diameter IN	0.170
Inside diameter MM	4.200
Product height in	2.940
Product height mm	74.676
Product length in	2.620
Product length mm	66.548
Product material	Carbon steel
Product width in	0.880
Product width mm	22.352
Series	1A/Z Series
Thread size 1	11/16-16 UN
Working pressure max BAR	621.00
Working pressure max PSI	9100.00
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
