Danfoss 1AA6FJB8

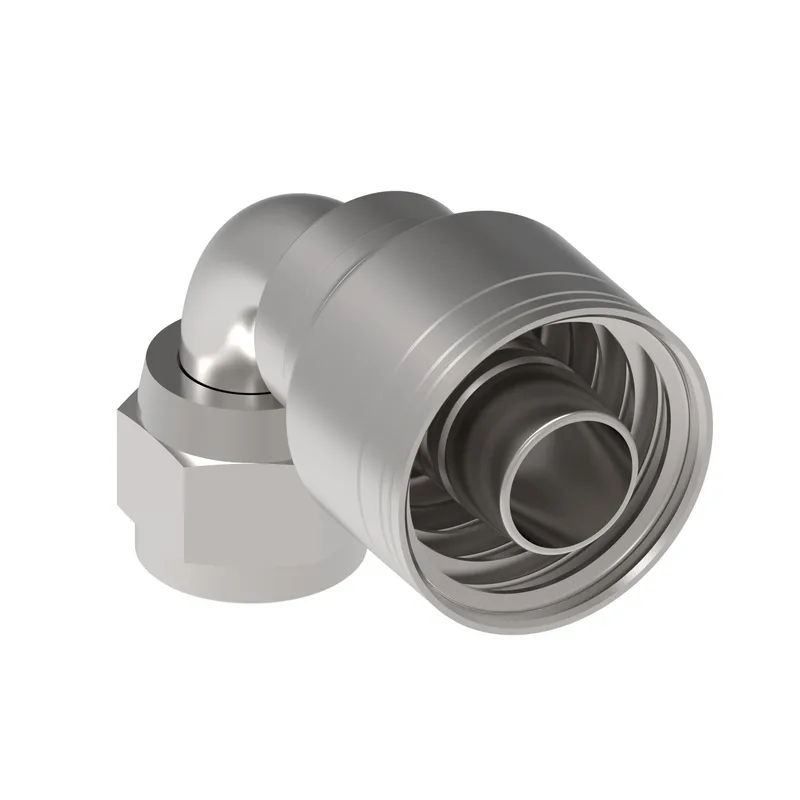

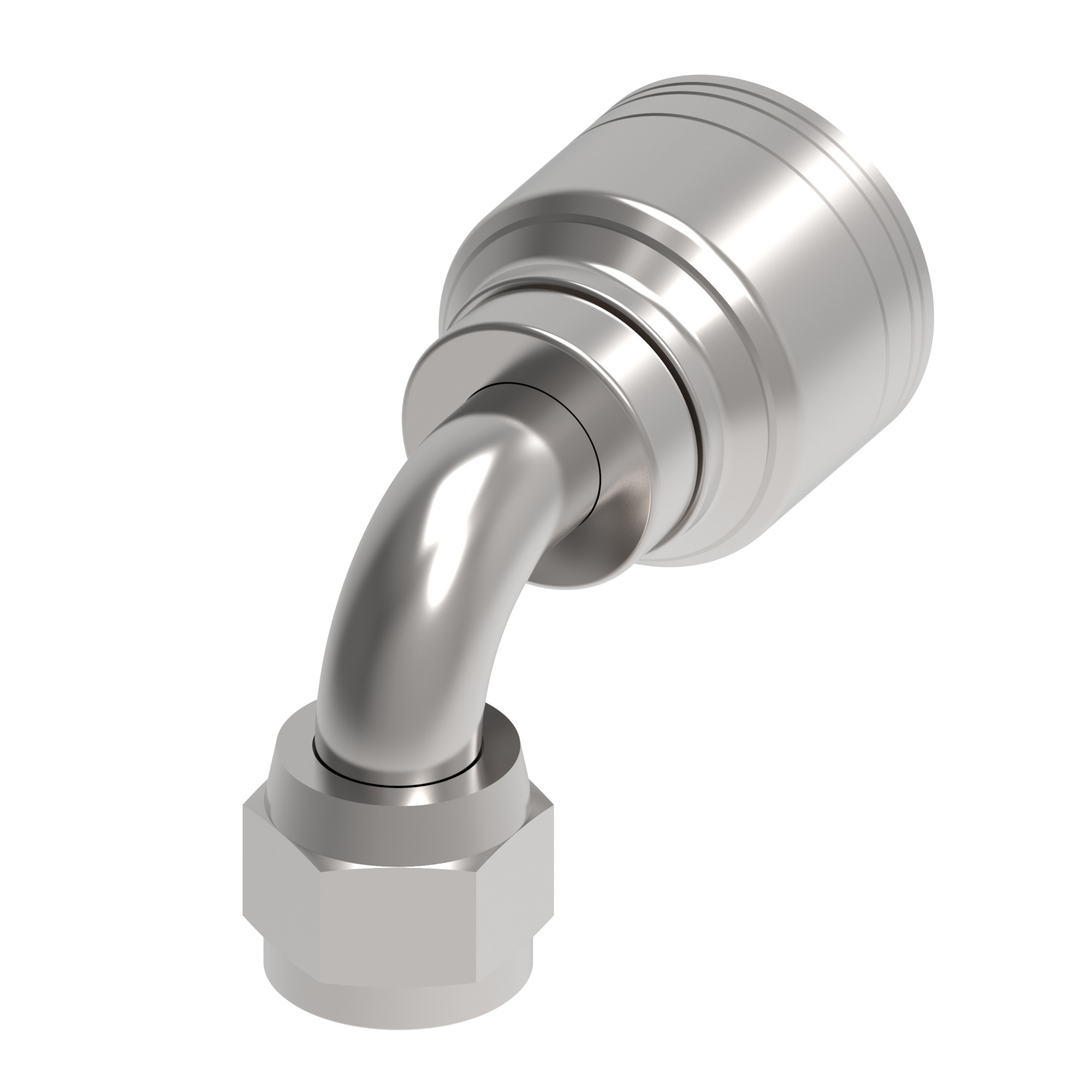

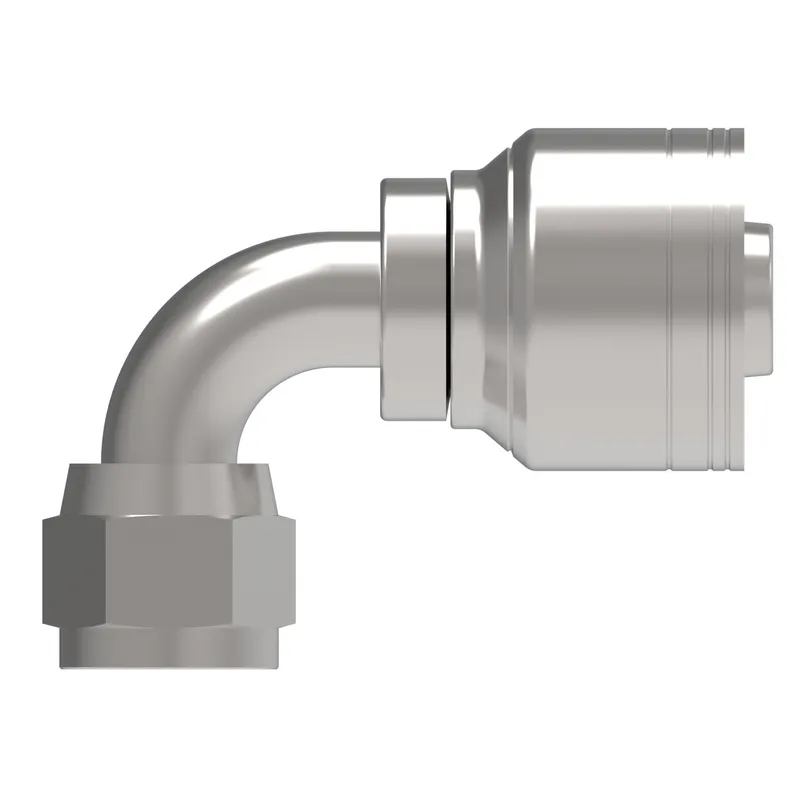

HOSE FTG, 1A/08, JIC-F/06, CS, 90D

MPN: 1AA6FJB8
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1AA6FJB8?

Danfoss HOSE FTG, 1A/08, JIC-F/06, CS, 90D, manufacturer part number 1AA6FJB8. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146127150
A dimension IN	2.270
A dimension MM	57.600
Angle shape	90 Degree
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.500
Compatible hose ID MM	12.700
Construction Style	Crimp
Drop dimension IN	0.850
Drop dimension MM	21.60
End connection torque	18-20 lb-ft(24-28 Nm)
End size 1	-6
End Type 1	Female 37 degree swivel
Finish plating	Dura-Kote
Hose cut off factor IN	1.264
Hose cut off factor MM	32.100
Hose size	-8
Inside diameter IN	0.240
Inside diameter MM	6.200
Product height in	0.840
Product height mm	21.336
Product length in	2.430
Product length mm	61.722
Product material	Carbon steel
Product width in	1.220
Product width mm	30.988
Series	1A/Z Series
Thread size 1	9/16-18 UNF
Working pressure max BAR	400
Working pressure max PSI	5800
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
