Danfoss 1AA14MJ12

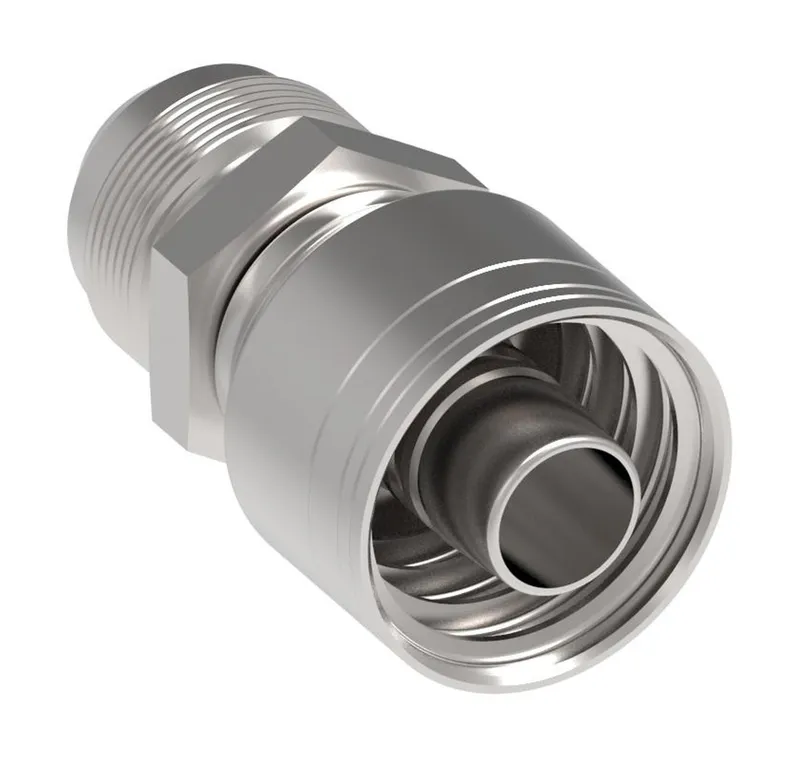

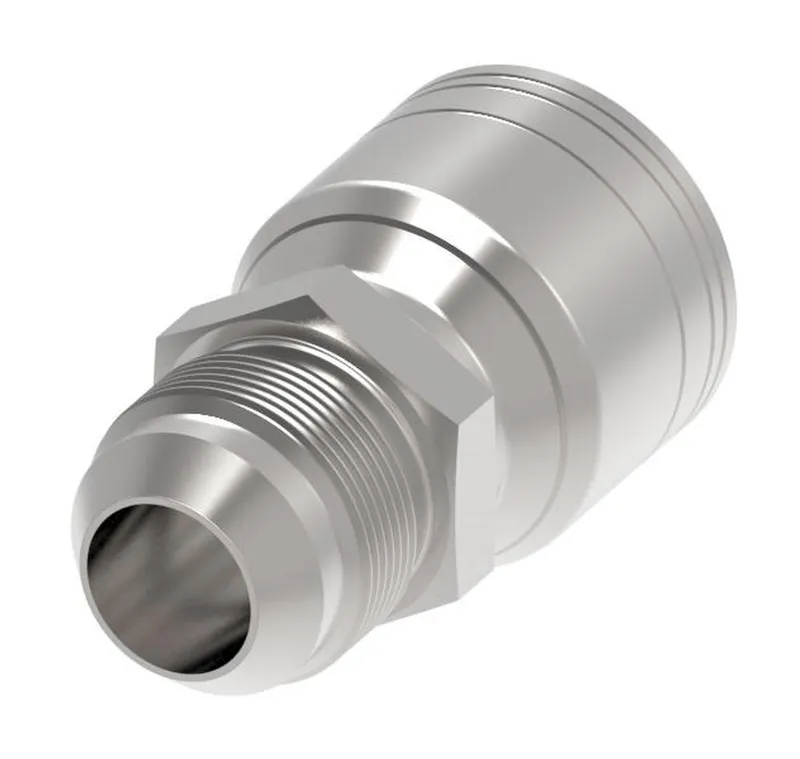

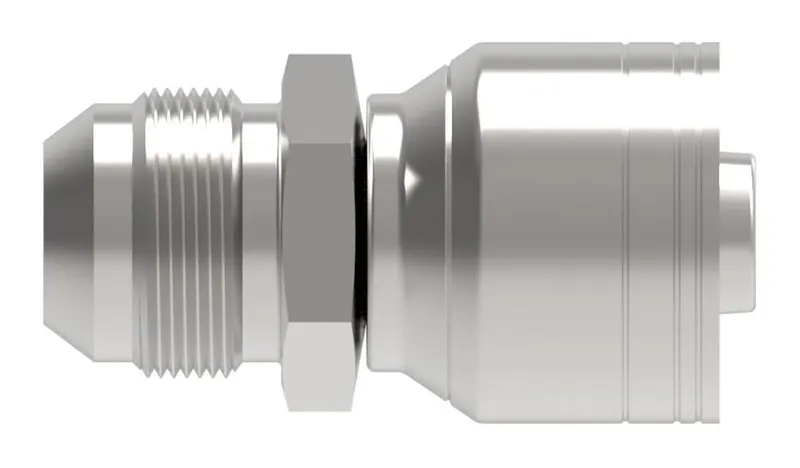

HOSE FTG, 1A/12, JIC-M/14, CS, STR

MPN: 1AA14MJ12
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1AA14MJ12?

Danfoss HOSE FTG, 1A/12, JIC-M/14, CS, STR, manufacturer part number 1AA14MJ12. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146125927
A dimension IN	2.610
A dimension MM	66.300
Angle shape	Straight
Compatible hose ID IN	0.750
Compatible hose ID MM	19.000
Construction Style	Crimp
End size 1	-14
End Type 1	Male 37 degree
Finish plating	Zinc plating
Hex size 2 MM	32.000
Hose cut off factor IN	1.540
Hose cut off factor MM	39.200
Hose size	-12
Inside diameter IN	0.610
Inside diameter MM	15.500
Product height in	1.560
Product height mm	39.624
Product length in	2.730
Product length mm	69.342
Product material	Carbon steel
Product width in	1.560
Product width mm	39.624
Series	1A/Z Series
Thread size 1	1 3/16-12 UN
Working pressure max BAR	276
Working pressure max PSI	4000
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
