Danfoss 190933-16S

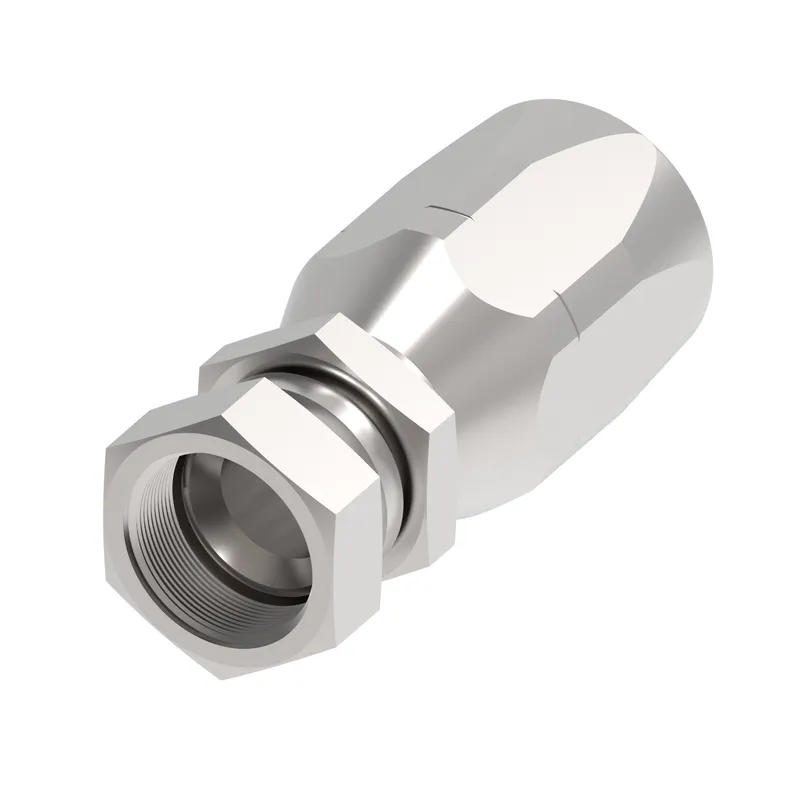

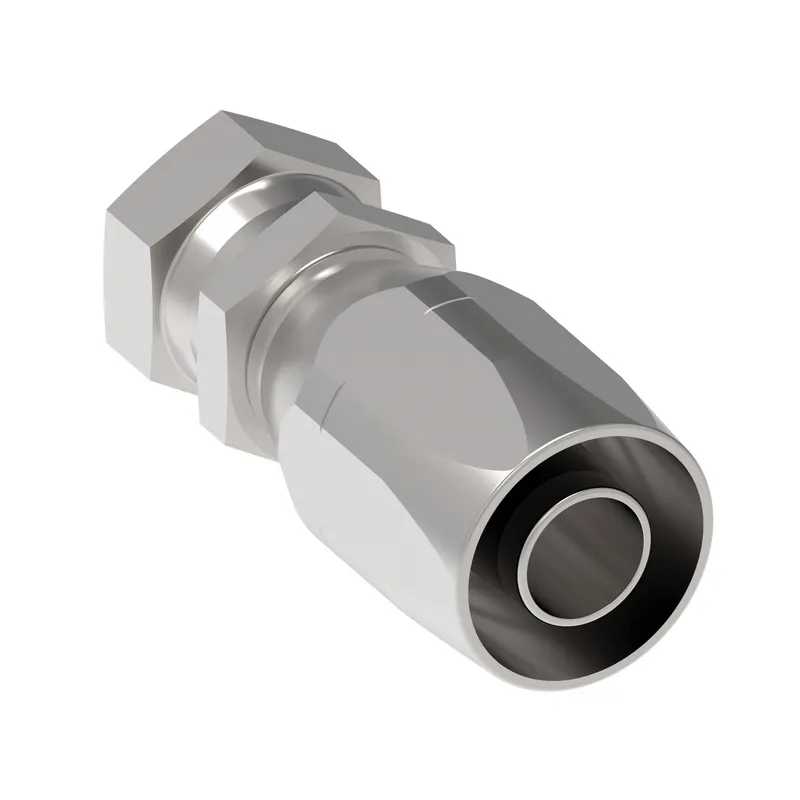

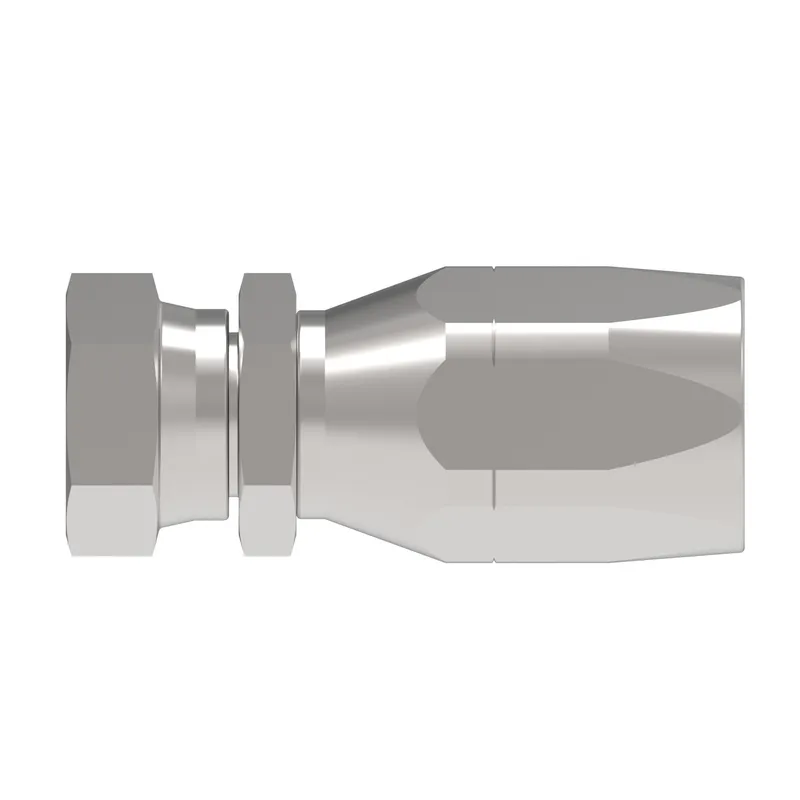

HOSE NIPPLE ASSY,1K/16,JIC-F/16,CS,STR

MPN: 190933-16S
Category: Spiral hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 190933-16S?

Danfoss HOSE NIPPLE ASSY,1K/16,JIC-F/16,CS,STR, manufacturer part number 190933-16S. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146044945
A dimension IN	4.480
A dimension MM	113.800
Angle shape	Straight
Brand	Aeroquip by Danfoss
Compatible hose ID IN	1.000
Compatible hose ID MM	25.400
Construction Style	Reusable
End connection torque	127-133 lb-ft(173-182 Nm)
End size 1	-16
End type 1	Female 37 degree swivel
Finish plating	Zinc plating
Hex size 2 MM	38.000
Hose cut off factor IN	2.430
Hose cut off factor MM	61.722
Hose size	-16
Inside diameter IN	0.820
Inside diameter MM	20.800
Product height in	1.750
Product height mm	44.450
Product length in	4.480
Product length mm	113.792
Product material	Carbon steel
Product width in	1.750
Product width mm	44.450 mm
Series	Winner 2-Piece
Thread size 1	1 5/16-12 UN
Working pressure max BAR	280
Working pressure max PSI	4050
Working temperature max C	121
Working temperature max F	250
Working temperature min C	-40
Working temperature min F	-40
