Danfoss 187

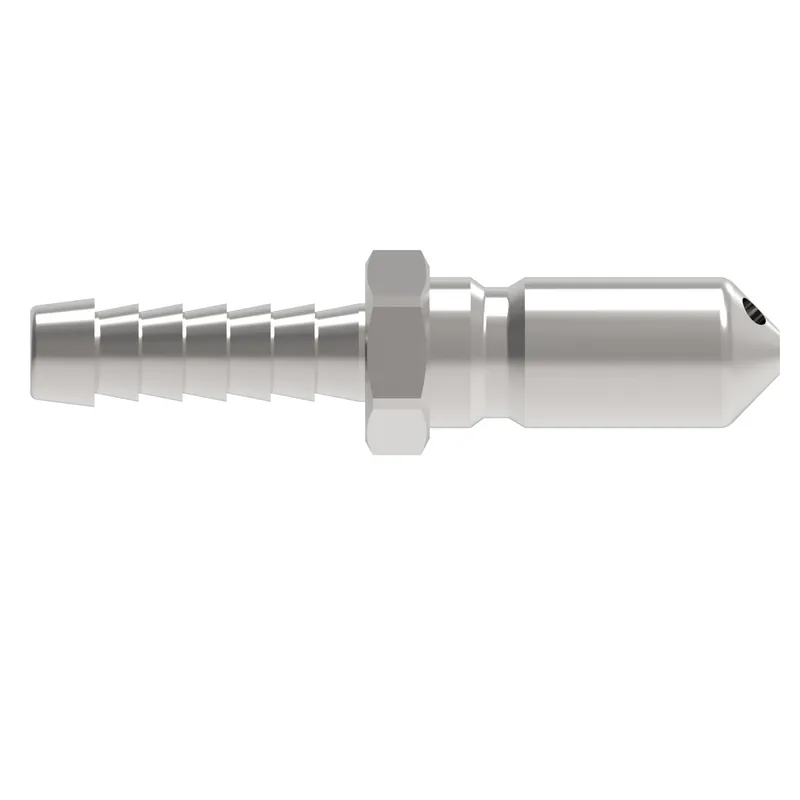

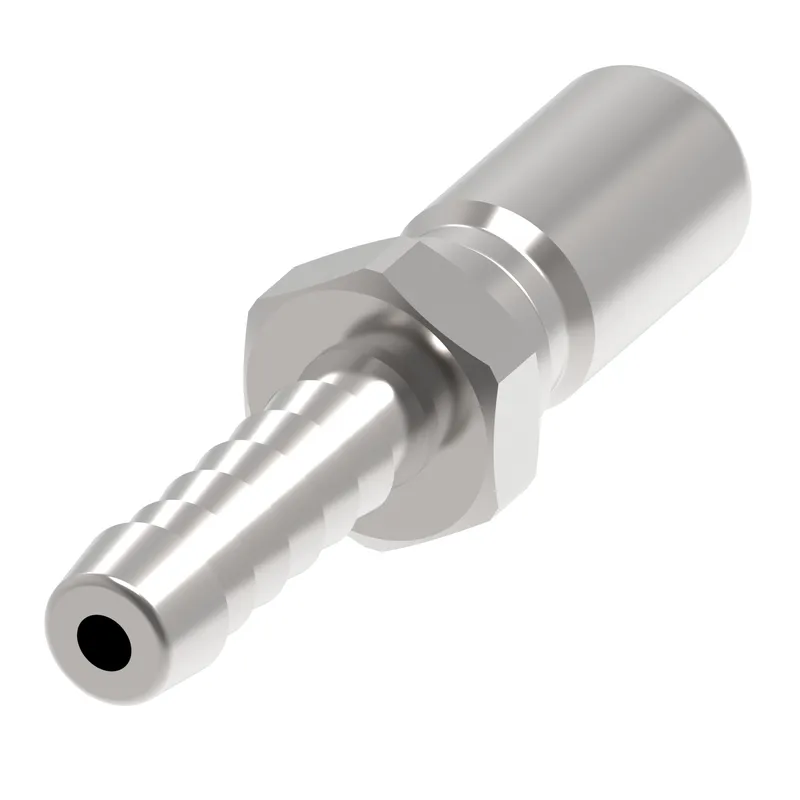

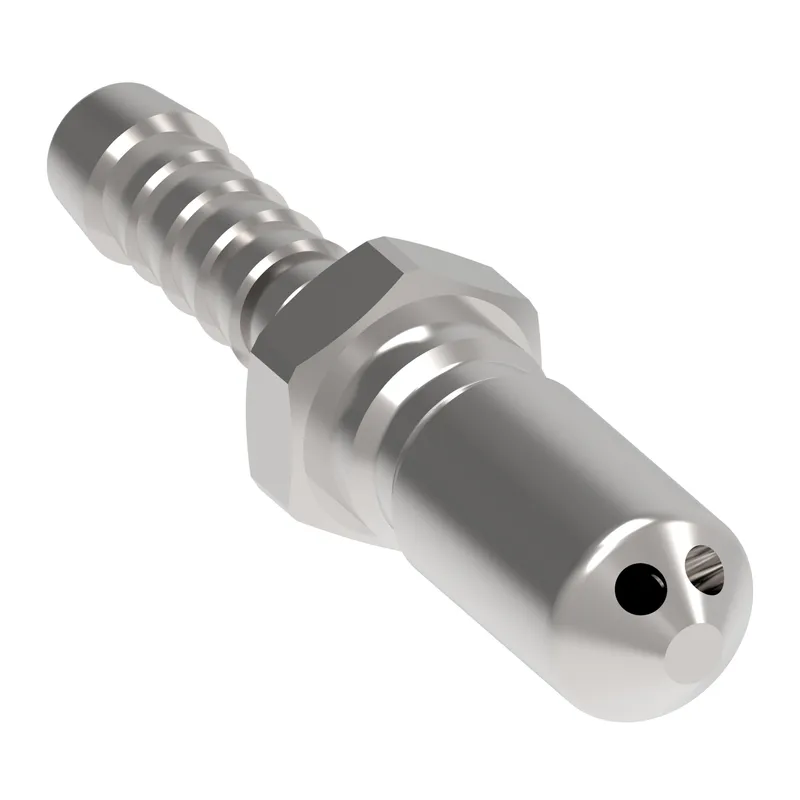

COUPLING,180/280,M,1/8,B,-2BARB

MPN: 187
Category: Danfoss Hansen® quick disconnect couplings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 187?

Danfoss COUPLING,180/280,M,1/8,B,-2BARB, manufacturer part number 187. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146195869
Angle shape	Straight
Body size	1/8
Burst pressure min bar	193
Burst pressure min psi	2800
Connection style	Manual connect
End type 1	Male push to connect
End type 2	Line/hose/tube
Flow rate GPM	18.75
Flow rate LPM	70.98
Fluid compatibility	Compressed air, Gases and liquids
Item type	Male half
Latch type	Push/pull
Product height in	0.380
Product height mm	9.652
Product length in	1.250
Product length mm	31.750
Product material	Brass
Product width in	0.380
Product width mm	9.652 mm
Seal material	Nitrile (NBR)
Valve type	1 way
Working pressure max psi	700
Working pressure max BAR	48
Working temperature max C	121
Working temperature max F	250
Working temperature min C	-40
Working temperature min F	-40
