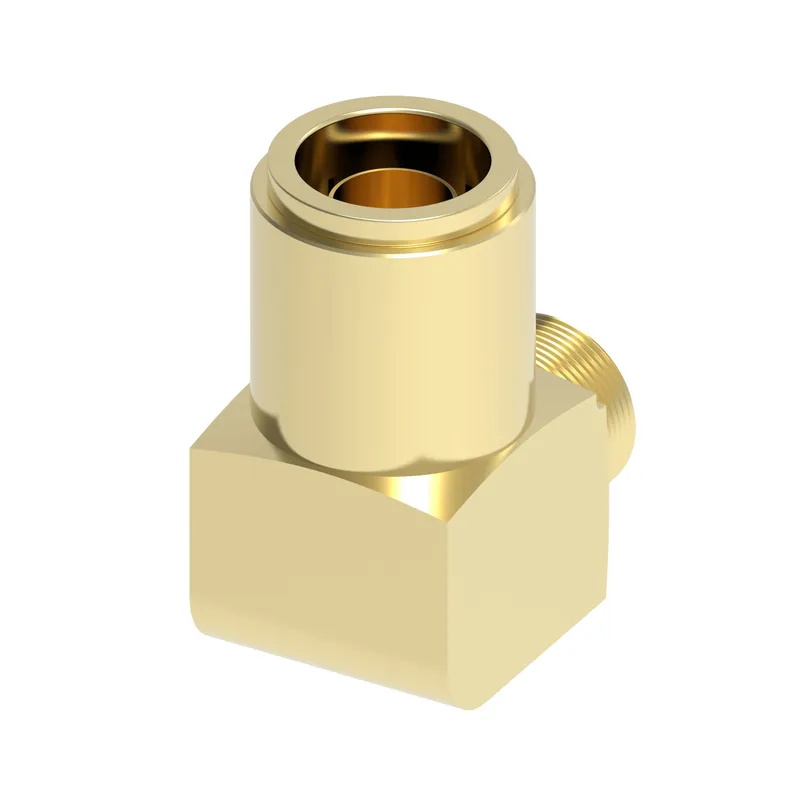

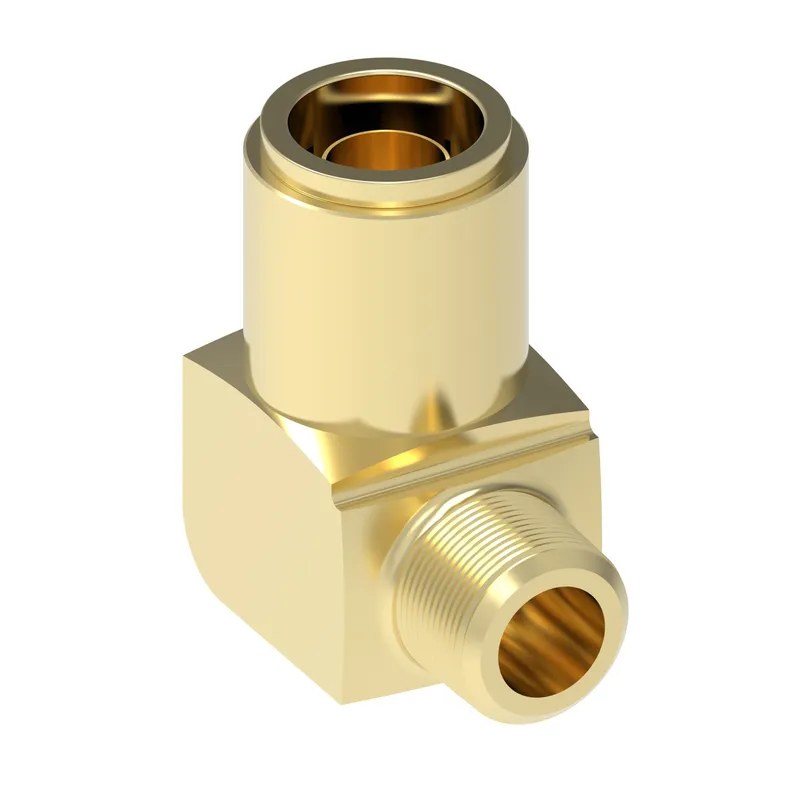

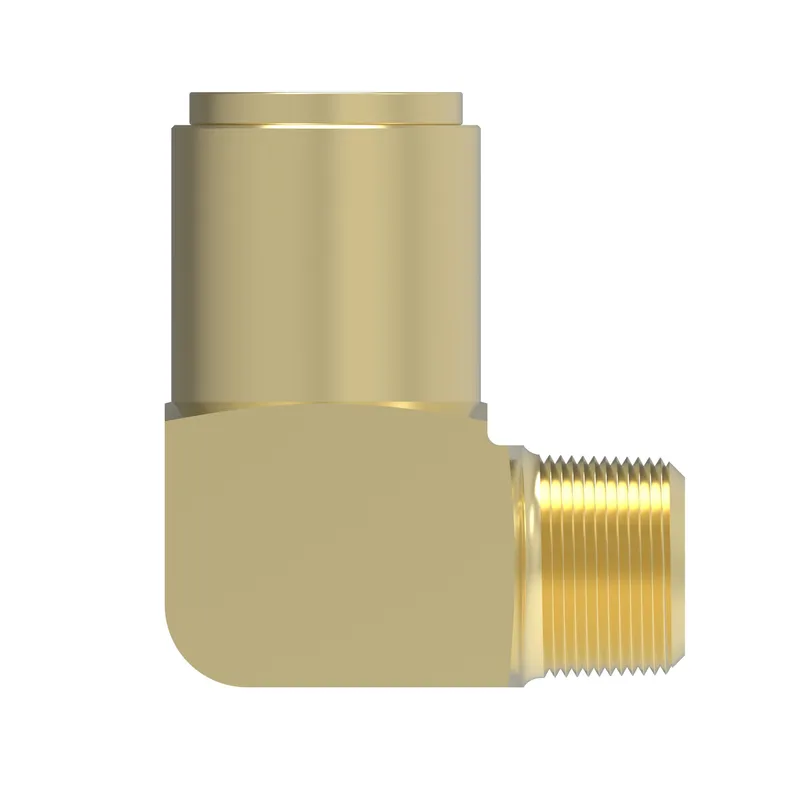

QCAB Adapter Brass 90 D 3/16 T x 1/8 MP

Name: QCAB Adapter Brass 90 D 3/16 T x 1/8 MP
Brand: Danfoss (Drives)
SKU: 1869X3

MPN: 1869X3 · Brand: Danfoss (Drives)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Adapters and swivel joints
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 1869X3 be shipped?

1869X3 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1869X3 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1869X3 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1869X3, subject to availability and destination.

Danfoss QCAB Adapter Brass 90 D 3/16 T x 1/8 MP, manufacturer part number 1869X3. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	725975636251
Angle shape	90 Degree
Brand	Danfoss
Compliances	SAE AA0302, SAE J1131
End size 2	-2
End Type 1	Female push to connect
End Type 2	Male pipe (NPTF)
Item type	Adapter-elbow
Product material	Brass
Thread sealant	No
Working pressure bar	10.0
Working pressure max BAR	10.00
Working pressure max PSI	150.00
Working pressure psi	150
Working temp max C	93
Working temp max F	200
Working temp min C	-40
Working temp min F	-40
Working temperature max C	93
Working temperature max F	200
Working temperature min C	-40
Working temperature min F	-40
