Danfoss 185-3125-002

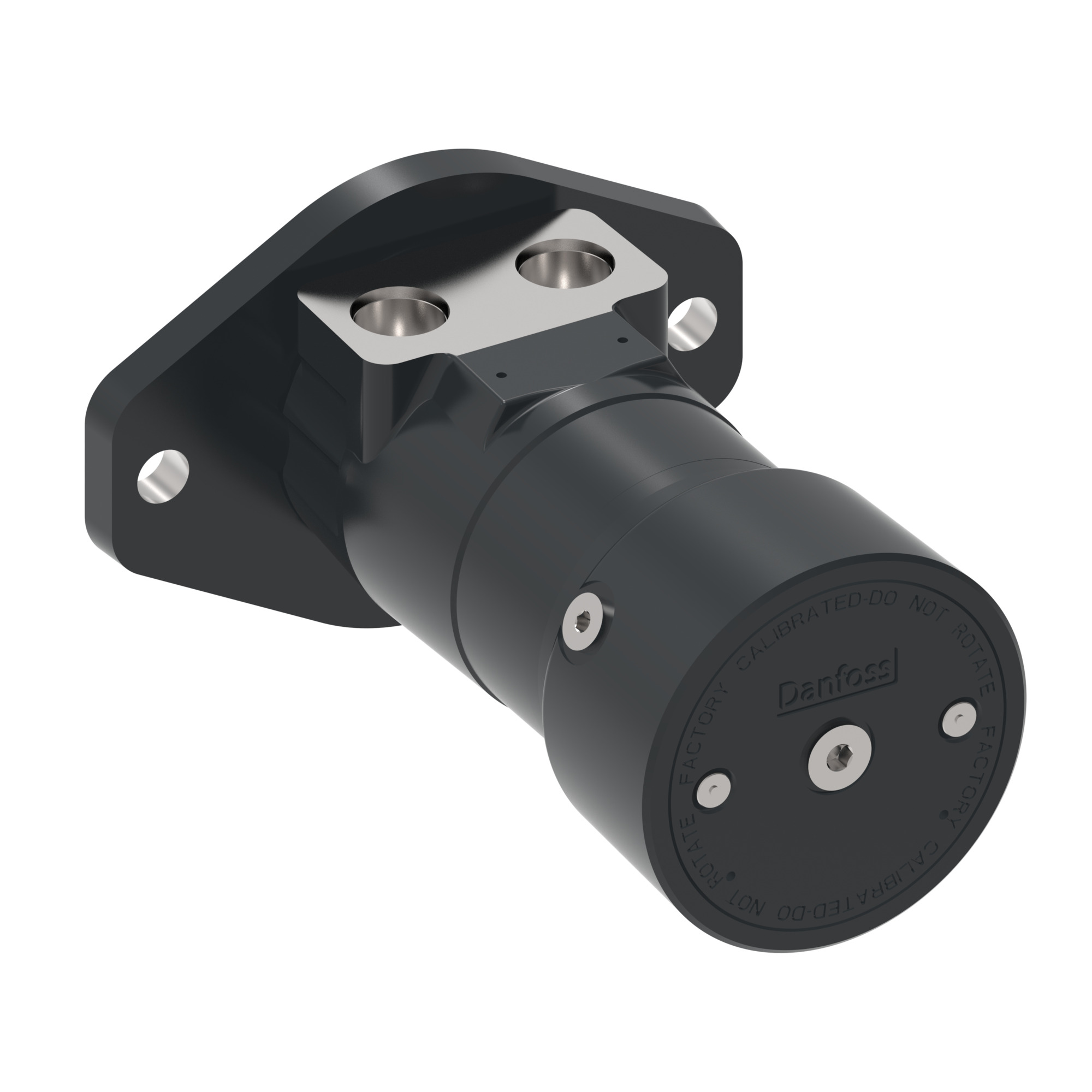

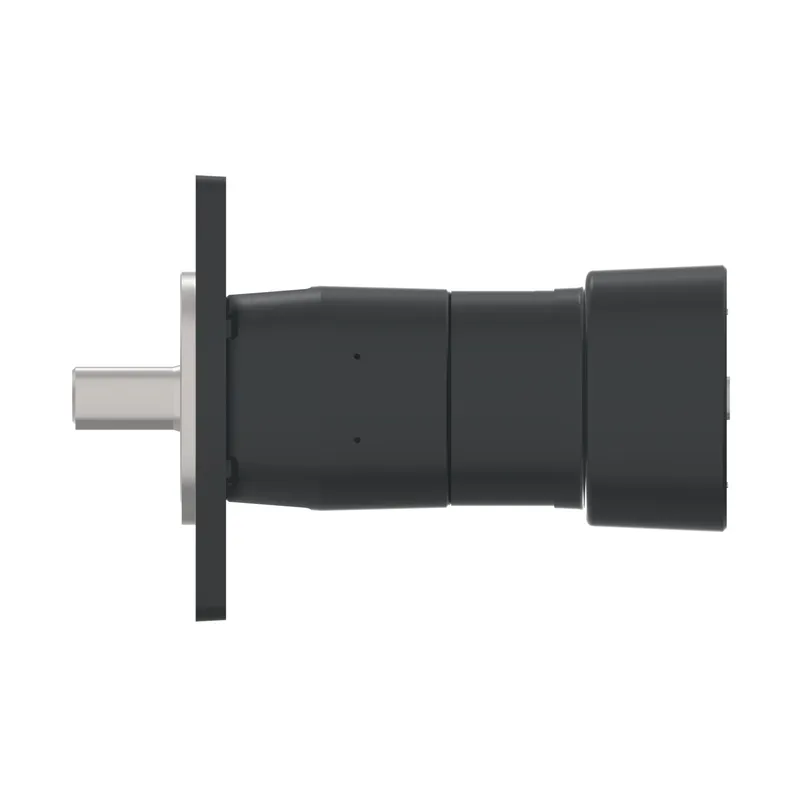

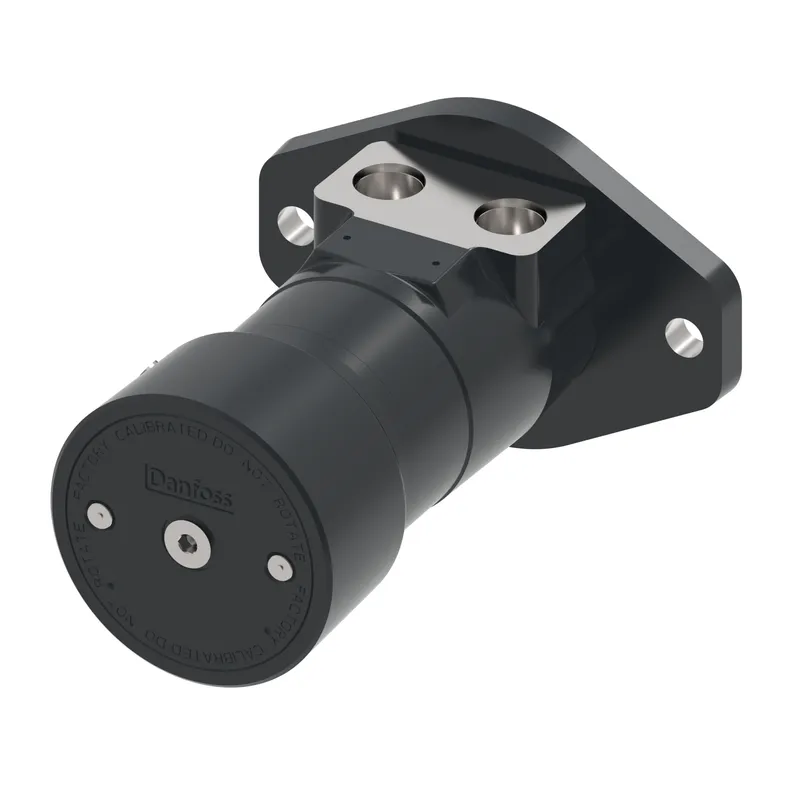

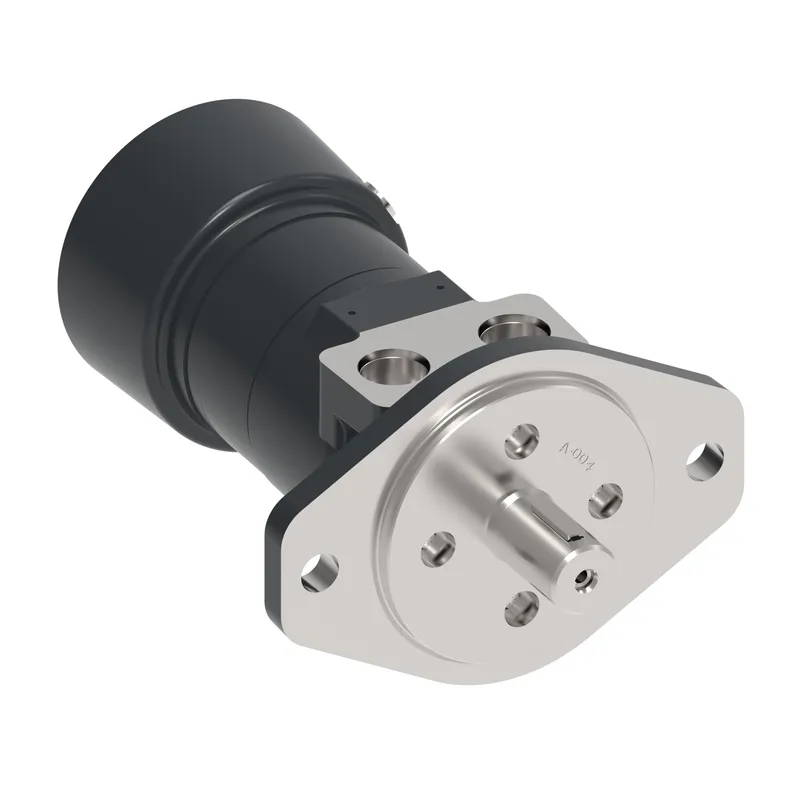

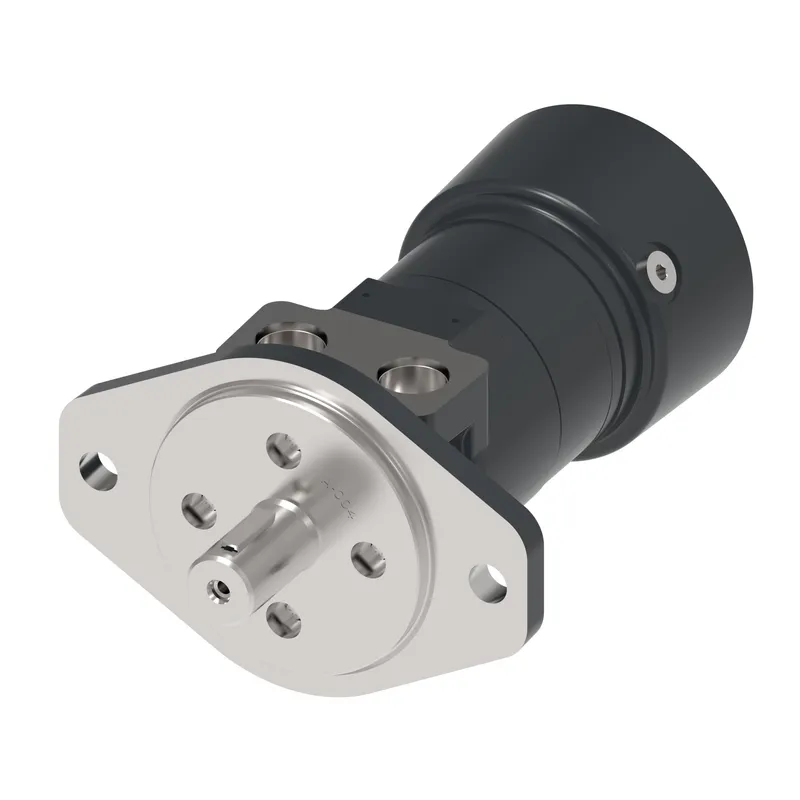

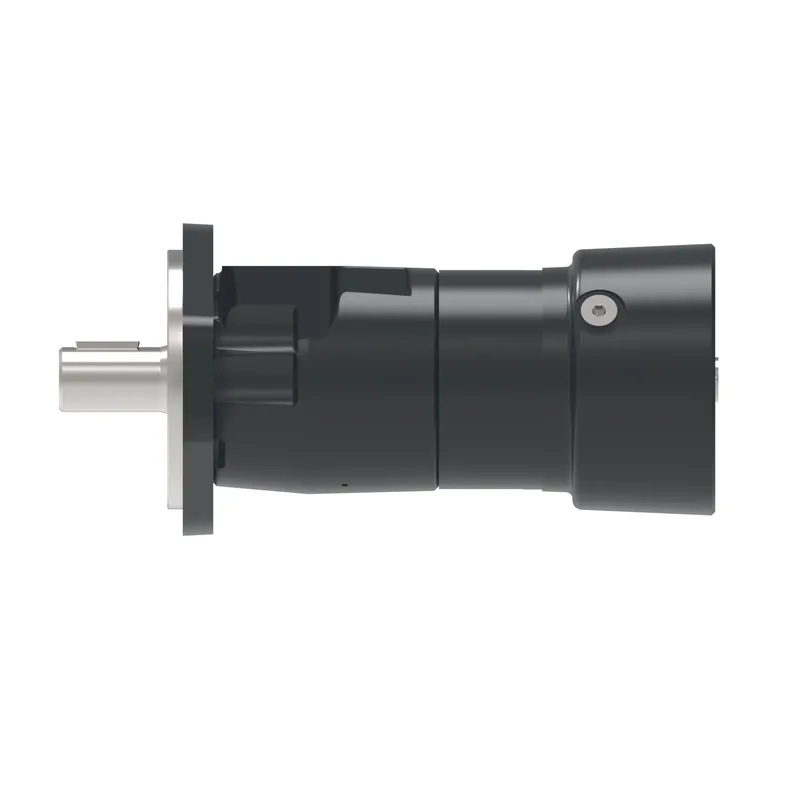

MOTOR-ORBITAL,T BR SERIES 305 [18.7], MTB187DA02AA00A0070000AB0AA00B

MPN: 185-3125-002
Category: Danfoss orbital motor quick selector

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 185-3125-002?

Danfoss MOTOR-ORBITAL,T BR SERIES 305 [18.7], MTB187DA02AA00A0070000AB0AA00B, manufacturer part number 185-3125-002. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Model Code	MTB187DA02AA00A0070000AB0AA00B
Motor Series	T Series
Valve system	Spool valve
Orbital gearwheel set type	Geroler
Mounting type	2 s p102 b146 h14
Motor size	305
Geometric displacement [cm3/r [in3/r]]	306 [18.9]
Motor type	Motor - Brake
Motor function	Brake - Low release pressure, Higher efficiency and smooth running (Low speed valving)
Mounting flange type	2 Bolt - B
Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]]	101.6 x 6.1, 146.1, 14.4 [4.00 x 0.24, 5.75, 0.57] SAE B
Shaft type	Splined
Shaft dimension	Dia. 1 inch, SAE 6B, 1/4 - 20 UNC-2B thread in shaft end
Shaft Key	n/a
Main port thread type	UN / UNF
Main port style	Sideport - aligned
Main port dimension	7/8 - 14 UNF-2B SAE O-Ring port
Drain Port Dimension	None
Brake Release Port Dimension	7/16 - 20 UNF-2B SAE O-Ring Port
Painted	Yes
Paint information	Primer, Black, Low gloss
Special Features Assembly	Standard
Dust seal	Standard
Shaft Seal	HNBR - High pressure
Seal Kit	No data available
Front bearing type	Journal bearing
Rear bearing type	Journal bearing
Orbital gearwheel set	Standard
Check valve function	No
Hydraulic valve function	None
Sensor	None
Packaging	No data available
Name Tag	Danfoss name tag
Design code	2
Brand	Danfoss
Output shaft type	02 Spl 1in
Seal options	HP SHAFT SEAL
Series	T series motor w/brake
Sub brand	Char-Lynn
