Danfoss 185-2259-002

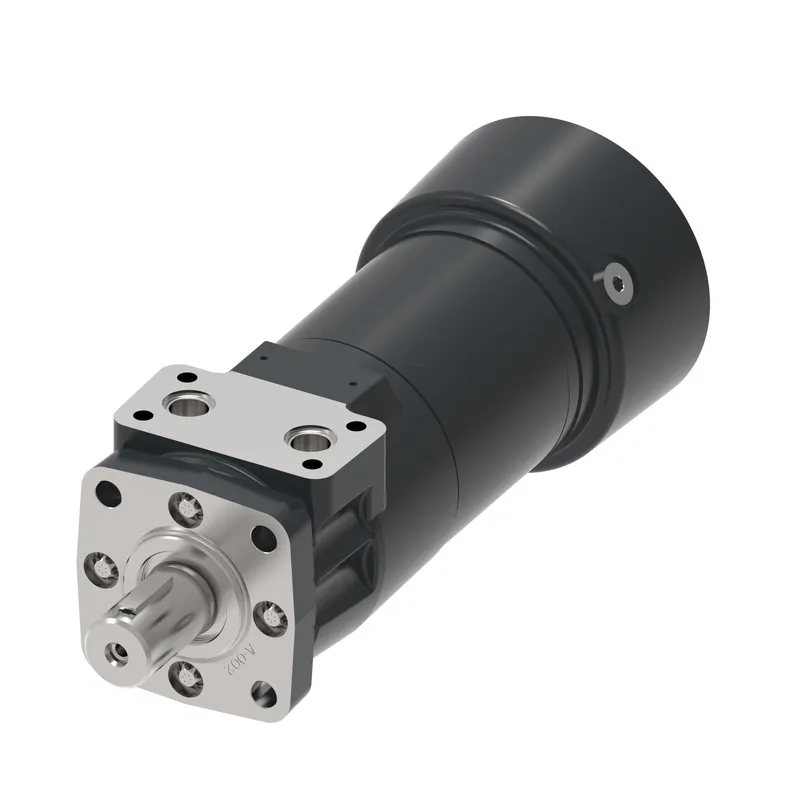

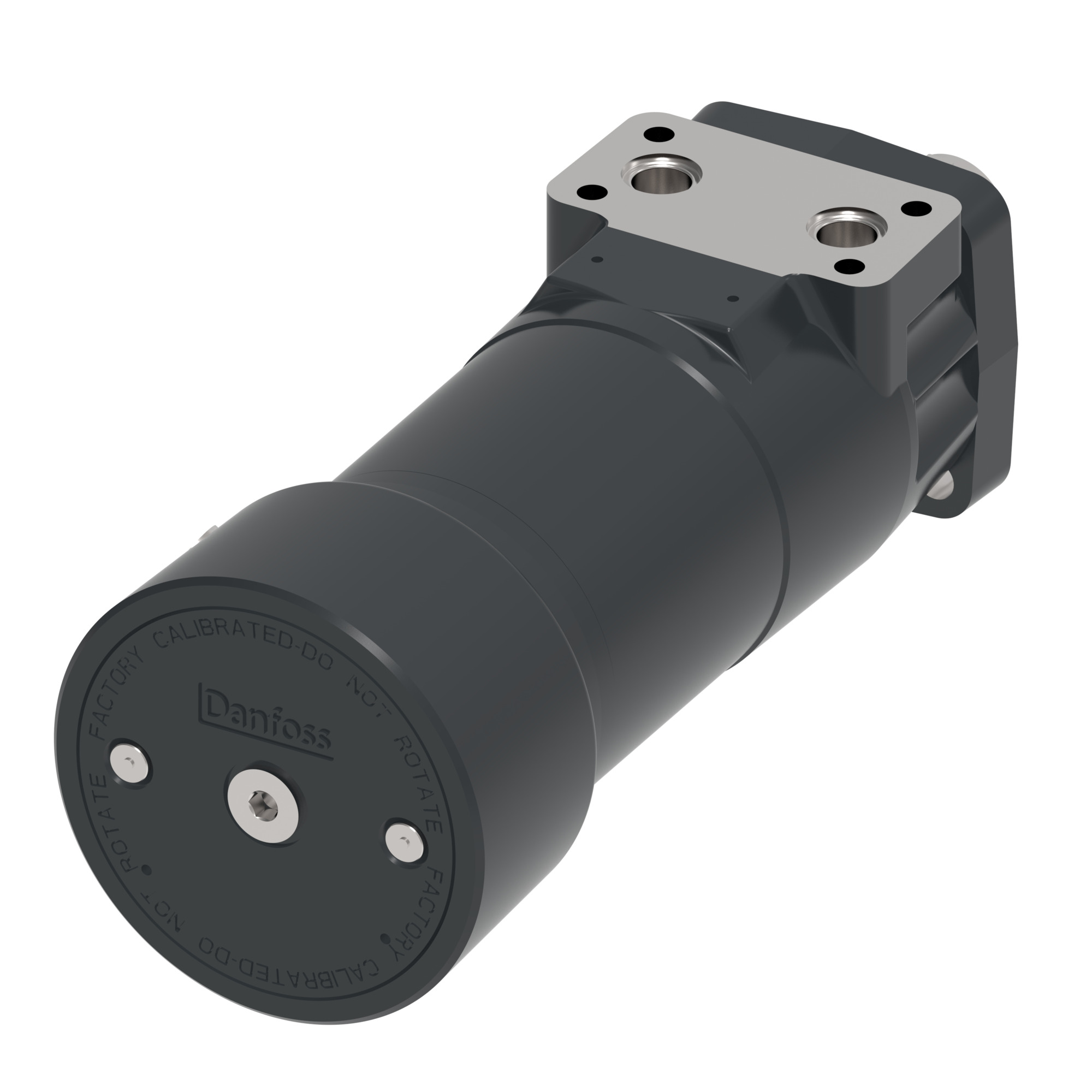

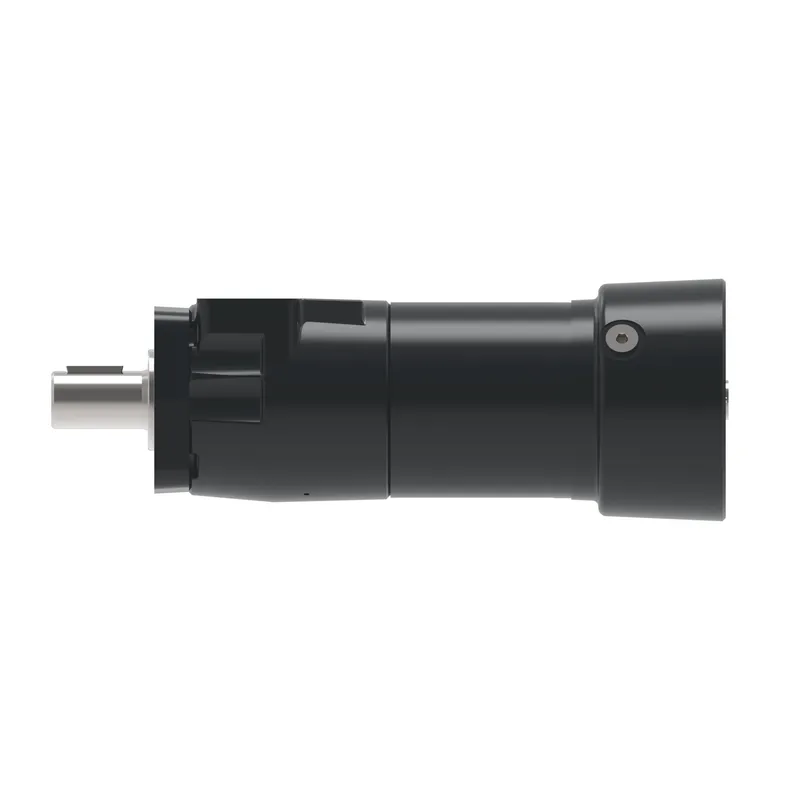

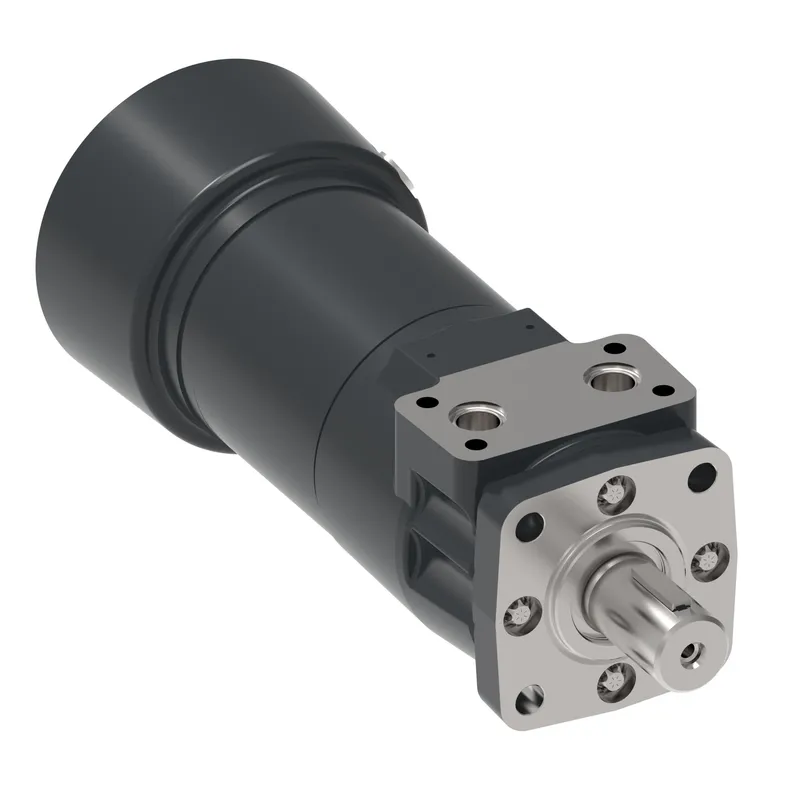

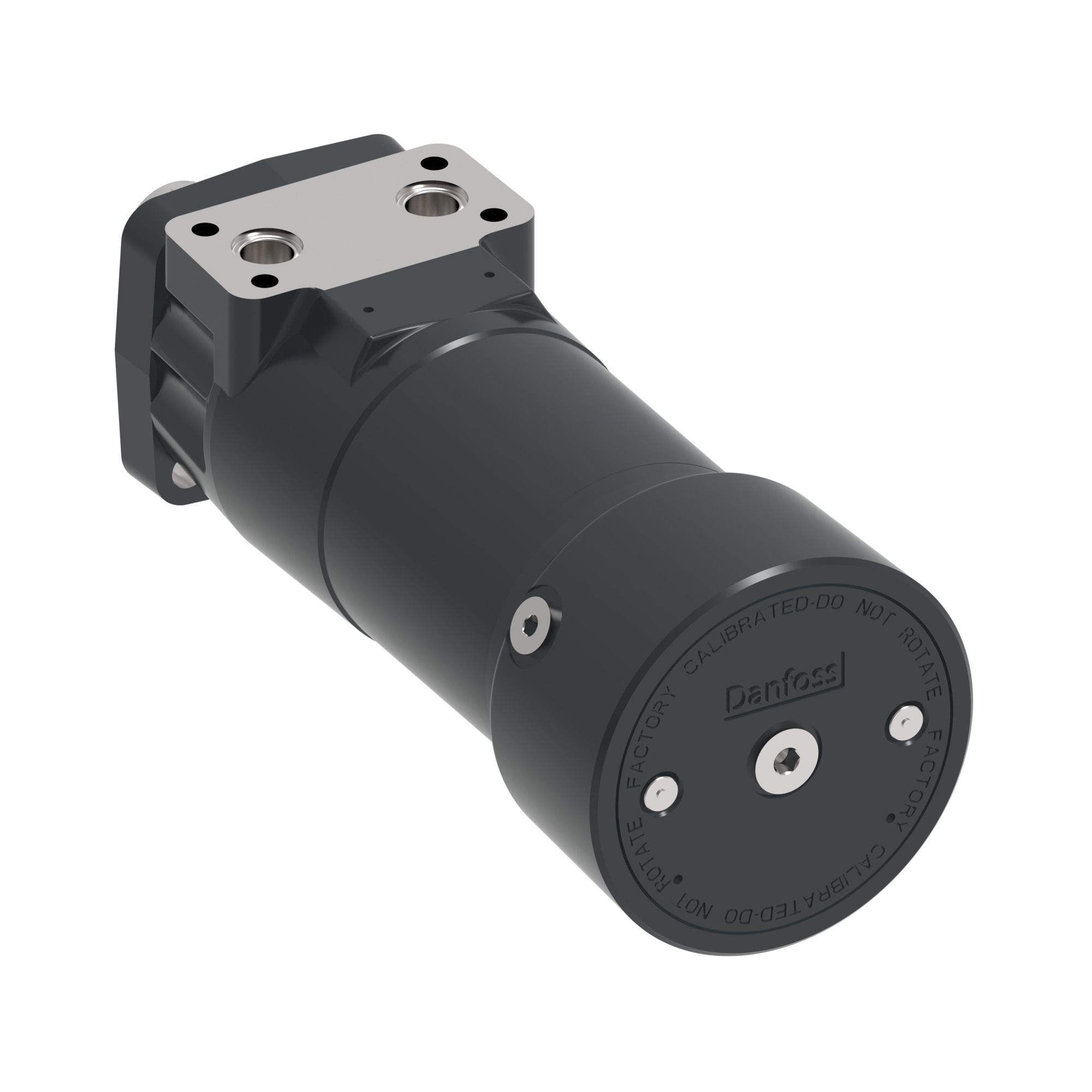

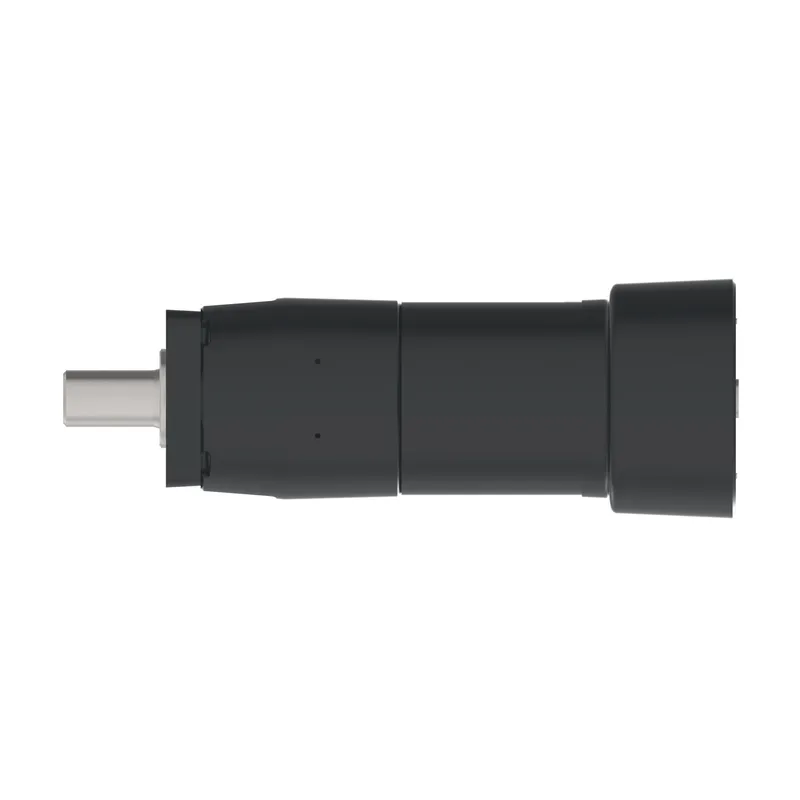

MOTOR-ORBITAL,T BR SERIES 370 [22.6], MTB226BA01AC00A0000000AB0AA00B

MPN: 185-2259-002
Category: Danfoss orbital motor quick selector

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 185-2259-002?

Danfoss MOTOR-ORBITAL,T BR SERIES 370 [22.6], MTB226BA01AC00A0000000AB0AA00B, manufacturer part number 185-2259-002. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Model Code	MTB226BA01AC00A0000000AB0AA00B
Motor Series	T Series
Valve system	Spool valve
Orbital gearwheel set type	Geroler
Mounting type	4 s p44 b83 3/8-16
Motor size	370
Geometric displacement [cm3/r [in3/r]]	370 [22.6]
Motor type	Motor - Brake
Motor function	Brake - Low release pressure, Higher efficiency and smooth running (Low speed valving)
Mounting flange type	4 Bolt - Square
Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]]	44.4 x 3.1, 82.6, 3/8 - 16 UNC-2B [1.75 x 0.12, 3.25, 3/8 - 16 UNC-2B]
Shaft type	Straight
Shaft dimension	Dia. 1 inch, 1/4 - 20 UNC-2B thread in shaft end
Shaft Key	Woodruff key
Main port thread type	Manifold
Main port style	Sideport - aligned
Main port dimension	0.500 inch drilled hole, 4 x 5/16 - 18 UNC-2B mounting threads
Drain Port Dimension	None
Brake Release Port Dimension	7/16 - 20 UNF-2B SAE O-Ring Port
Painted	Yes
Paint information	Primer, Black, Low gloss
Special Features Assembly	Standard
Dust seal	Standard
Shaft Seal	NBR - Standard
Seal Kit	No data available
Front bearing type	Journal bearing
Rear bearing type	Journal bearing
Orbital gearwheel set	Standard
Check valve function	No
Hydraulic valve function	None
Sensor	None
Packaging	No data available
Name Tag	Danfoss name tag
Design code	2
Brand	Danfoss
Output shaft type	01 Str 1in
Seal options	Standard seals
Series	T series motor w/brake
Sub brand	Char-Lynn
