Danfoss 185-2000-002

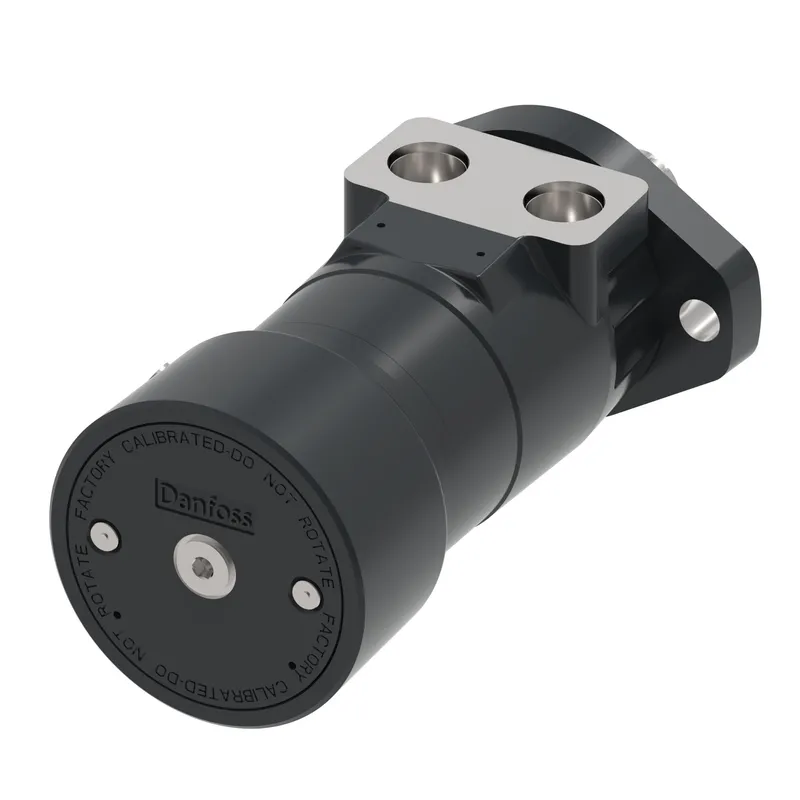

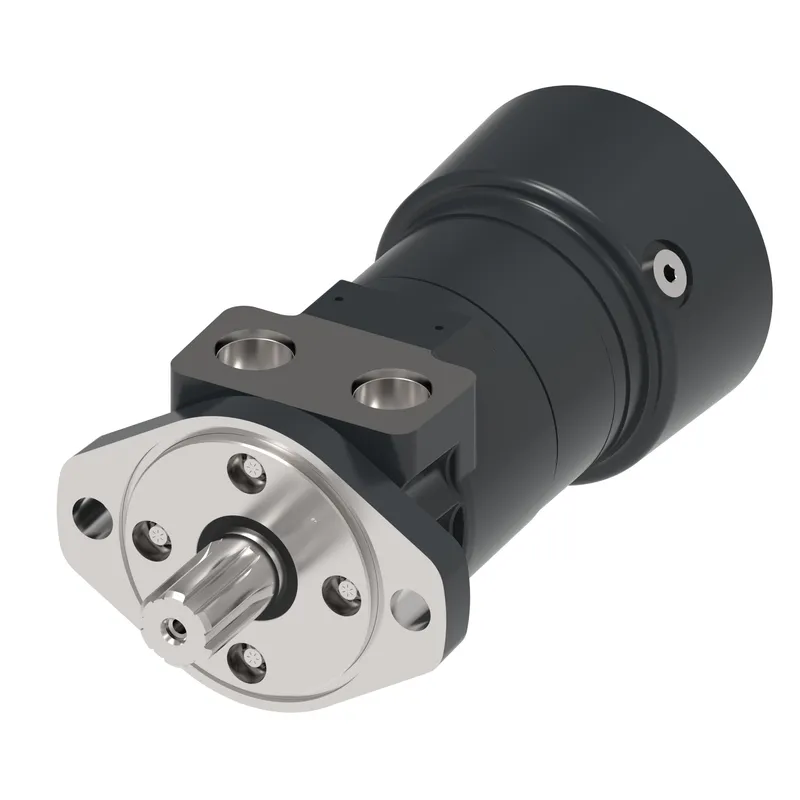

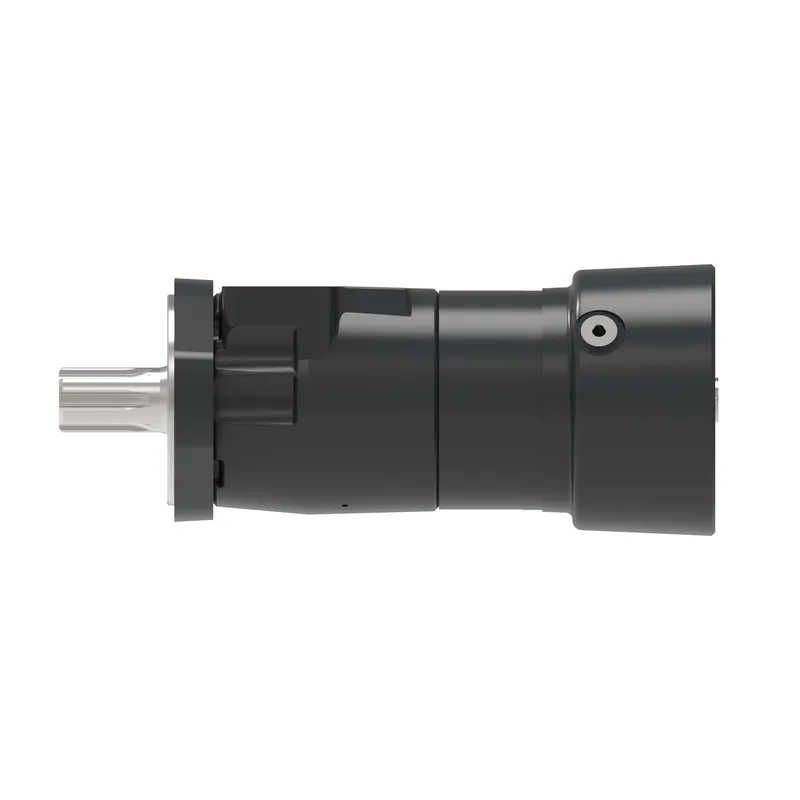

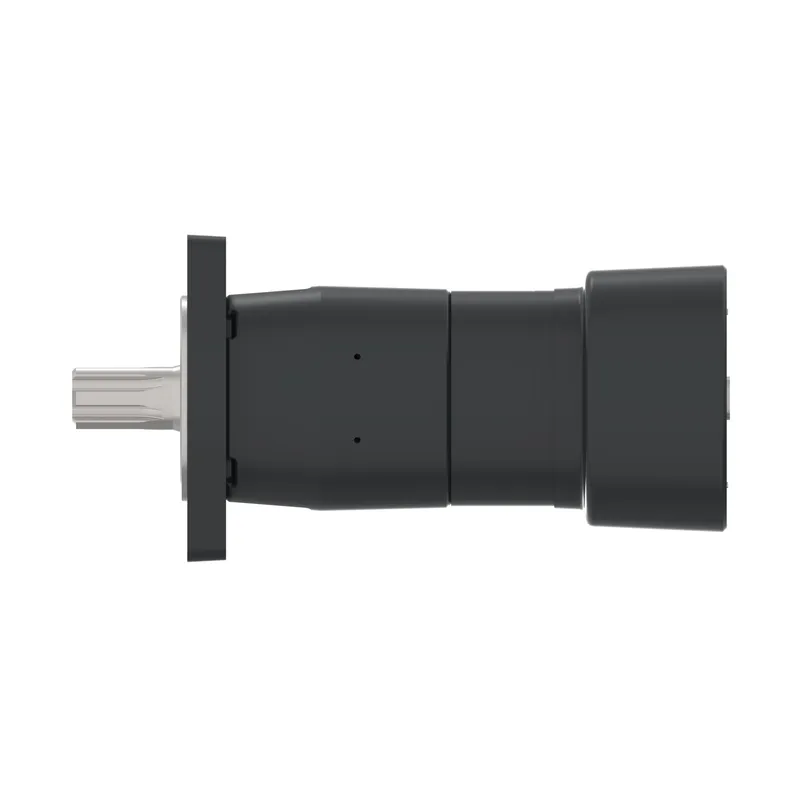

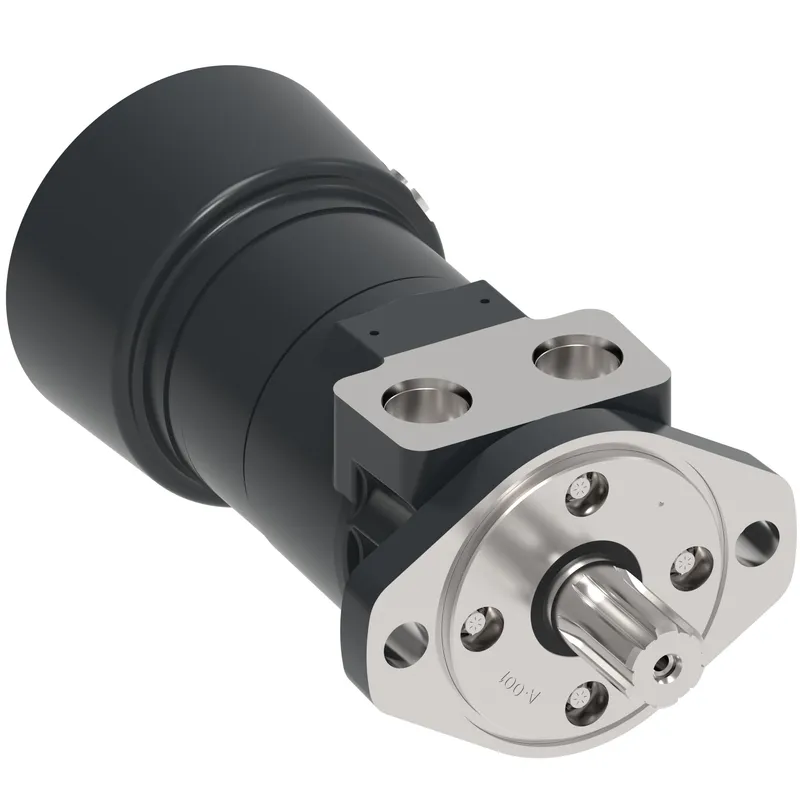

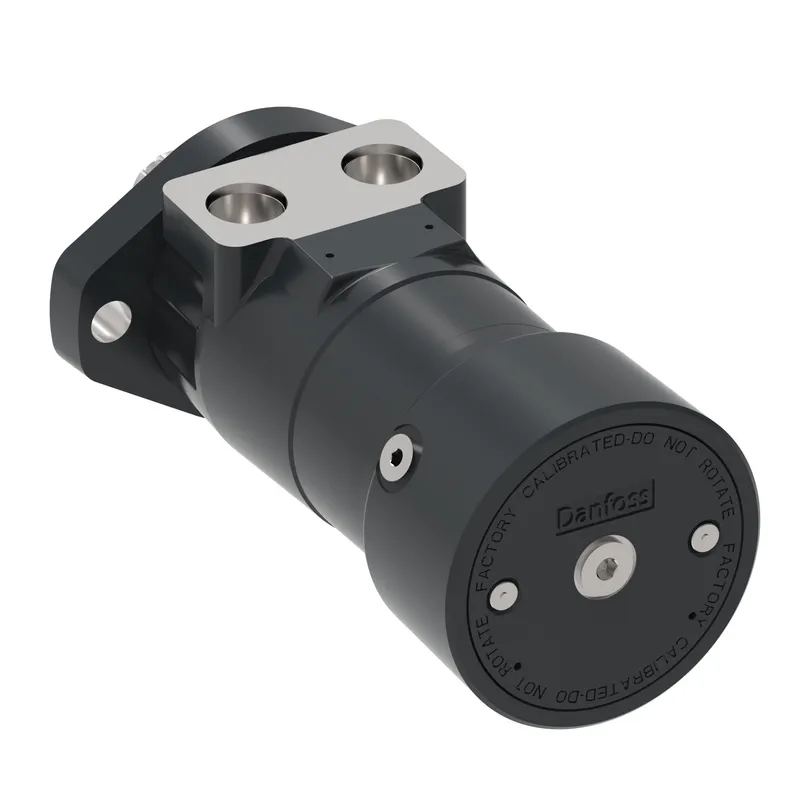

MOTOR-ORBITAL,T BR SERIES 50 [3], MTB030AA01AA00C0000000000AA00B

MPN: 185-2000-002
Category: Danfoss orbital motor quick selector

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 185-2000-002?

Danfoss MOTOR-ORBITAL,T BR SERIES 50 [3], MTB030AA01AA00C0000000000AA00B, manufacturer part number 185-2000-002. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Model Code	MTB030AA01AA00C0000000000AA00B
Motor Series	T Series
Valve system	Spool valve
Orbital gearwheel set type	Geroler
Motor size	50
Geometric displacement [cm3/r [in3/r]]	49 [3.0]
Motor type	Motor - Brake
Motor function	Brake - Low release pressure
Mounting flange type	2 Bolt - A
Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]]	82.5 x 3.1, 106.4, 13.6 [3.25 x 0.12, 4.19, 0.54]
Shaft type	Straight
Shaft dimension	Dia. 1 inch, 1/4 - 20 UNC-2B thread in shaft end
Shaft Key	Woodruff key
Main port thread type	UN / UNF
Main port style	Sideport - aligned
Main port dimension	7/8 - 14 UNF-2B SAE O-Ring port
Drain Port Dimension	None
Brake Release Port Dimension	7/16 - 20 UNF-2B SAE O-Ring Port
Painted	Yes
Paint information	Primer, Black, Low gloss
Special Features Assembly	Standard
Dust seal	Standard
Shaft Seal	NBR - Standard
Seal Kit	No data available
Front bearing type	Journal bearing
Rear bearing type	Journal bearing
Orbital gearwheel set	Spec. Component
Check valve function	No
Hydraulic valve function	None
Sensor	None
Packaging	No data available
Name Tag	Danfoss name tag
