What is the Danfoss 184465?

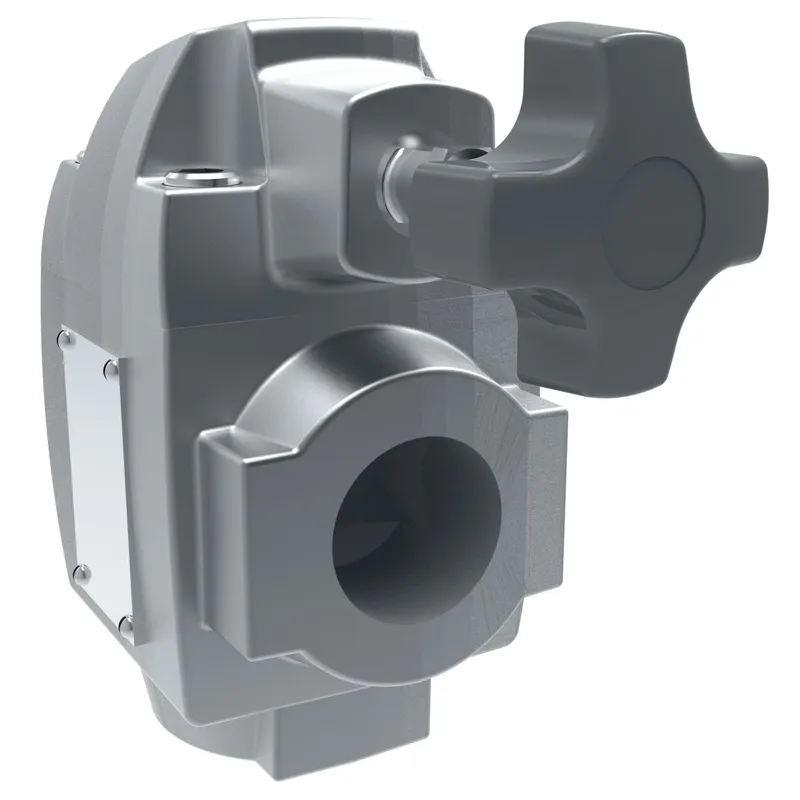

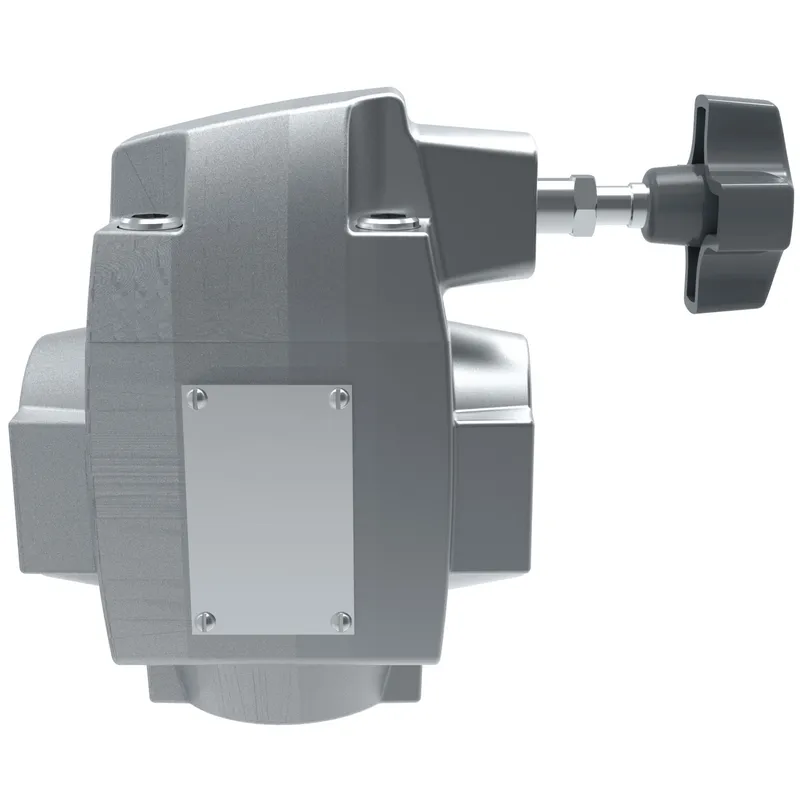

Danfoss CG 03 FV 10, CG03FV10, manufacturer part number 184465. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation Type	Direct acting
Adjustment range	100-210 bar (1500-3000 psi)
Adjustment type	Screw with locknut
Brand	Vickers by Danfoss
Design Series	10 Series
Electrical connection	None
Flow rate lpm	30.0
Flow rate USGPM	8.0
Fluid Cleanliness	19/17/14 Micron
Fluid compatibility	Petroleum oils
Hi-vent spring	Yes
Indicator Light	No
Maximum pressure BAR	210
Maximum pressure PSI	3000
Model Code 1	CG03FV10
Performance	Standard
Product height in	3.190
Product height mm	81.026
Product length in	6.250
Product length mm	158.750
Product width in	3.120
Product width mm	79.248
Seal material	Nitrile
Size	Size 03
Special feature	None
Stage	Single stage
Valve Mount Type	Subplate/manifold mounted
Valve type	Relief valve
Working temperature max C	70
Working temperature max F	158
Working temperature min C	-20
Working temperature min F	-4
